Application:
10.1

10.1" Industrial Monitor Display For Industrial Machinery


● Display size: 10.1-inch

● High-quality industrial LCD panel

● Working temperature: -10°C ~ +60°C

● Industrial-grade display chip

● 10mm front bezel Aluminum touch monitor

● 7/24 hours long-time running

● IP65-rated dust-proof and waterproof

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 10.1-inch Industrial Touch Screen Monitor For Industrial Machinery


    Model: JWS101-M41


    Jawest continually designs and manufactures industrial touchscreen monitors, which are suitable for application to indoor and outdoor devices, such as industrial automation machines, CNC, weather and temperature monitoring commercial smart terminals, POS machines, bank ATM and so on. The industrial monitors offer common ports such as HDMI, DVI, and VGA, and support interface expansion. The monitor with a brightness rating of 300cd/m2 supports customized higher brightness up to 1,500NIT. The latest Jawest fourth generation of industrial monitors offers superior readability under sunlight and supports auto-adjustment along with changes in environmental light. Besides, the brushed, anodized aluminum alloy plate gives the monitor a modern and elegant appearance, and the entire enclosure is constructed with aluminum alloy material, making it strong rugged, and reliable, stable for running under harsh factory or industrial environments.



    Jawest Industrial Monitor Features


    ● Aluminum alloy shell, good mechanical properties, better performance for heat dissipation.

    ● Adopt industrial control HD LCD screen +LED backlight screen, highlight picture, perfect color.

    ● Compatible with various operating systems for industrial conditions and applications.

    ● Supporting non-touchscreen, resistive touch display, and capacitive touch display.

    ● The industrial monitor supports a multi-functional module customization service.

    ● Triple protection for the self-developed motherboard: explosion-proof, flameproof, moisture-proof.

    ● Shock resistance standard reached GB2423, well-protected during transportation.

    ● The anti-static level of contact is 4KV (supporting max level is 6KV), air contact is up to 8KV.

    ● Anti-surge design, Jawest industrial monitor support works as normal during instantaneous voltage rising into 280V.

    ● PCB design: Anti-combustion, explosion-proof, and moisture-proof

    ● Main chipset: REALTEK industrial-level display chip

    ● Power supply management: TI chipset, wide range 12-36V input

    ● Pressure resistance design: Pressure resistance of solid-state capacitance in board 36V/105

    ● Automatic sense design: Built-in automatic photosensitive interface, using the luminance automatic regulation of the photosensitive module.

    ● Support wall-mounted, desktop stand, and VESA, etc.





    Industrial Monitor Display For Industrial Machinery 10.1"

    Industrial Monitor Display For Industrial Machinery 10.1"

    Industrial Monitor Display For Industrial Machinery 10.1"





  • 10mm Front Bezel Aluminum Alloy Industrial Touch Screen Monitor Datasheet
    Size10.1 inch
    Panel TypeIndustrial LCD panel A+ grade
    Aspect Ratio16:9
    Resolution1280*800
    Contrast1000:1
    Luminance300 Nits (High nits screen for optional)
    Response time5ms
    Active Area (mm)135.36*216.576
    Display colors16.7M(8-bit)
    View angle85°/85°/85°/85° (L/R/U/D)
    Touch Screen10-point capacitive, 4/5-wire resistive touch screen, and non-touch for option.

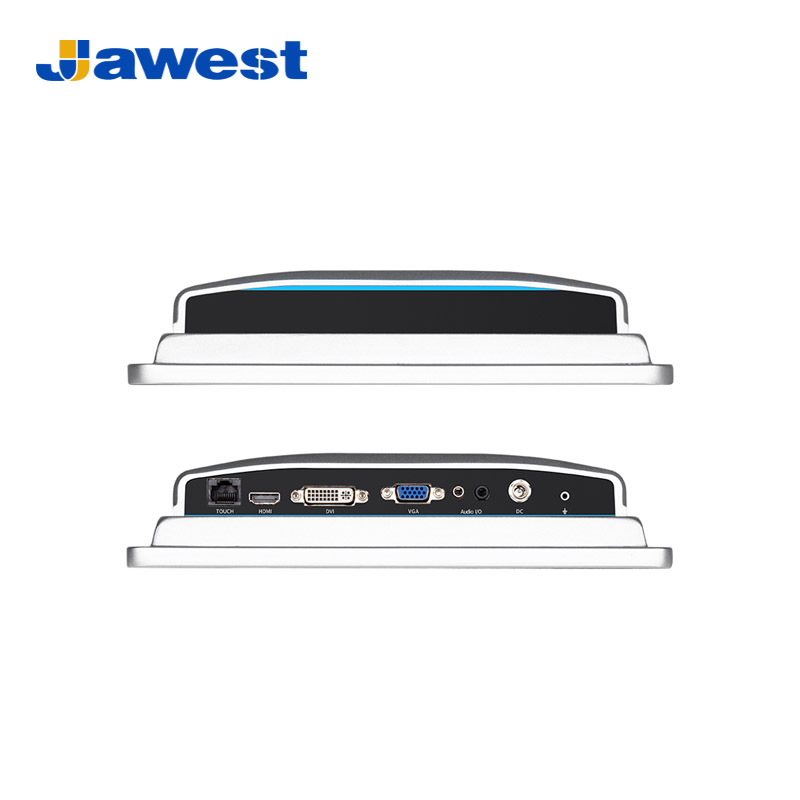

    I/O Ports1*HDMI, 1*DVI, 1*VGA, 1*RJ45(Touch Cable), 1*Audio I/O, 1*DC2.1, 1*GND


    Power InputDC 12~36V
    Standby Power Consumption18W


    Operation Temperature-10°C ~ +60°C
    Storage Temperature-20°C ~ +70°C
    Operation Humidity10%-80%
    Storage Humidity10%-90%
    IP ratingIP65 for Front Panel


    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional

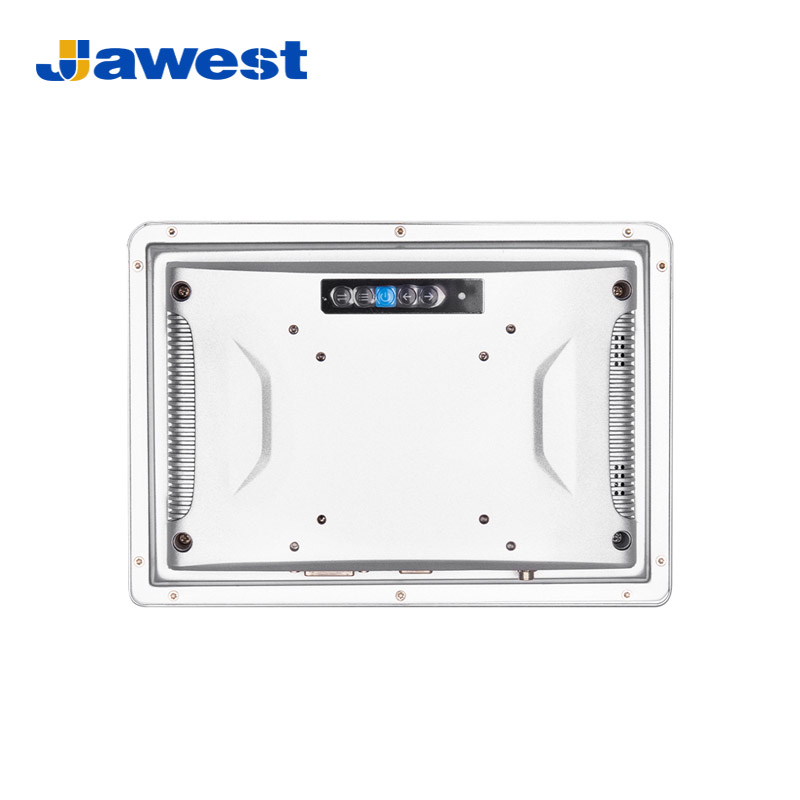

    InstallationVESA75/100mm, Wall-mounted, Desktop stand
    CertificatesCE, CCC, ISO, FCC, RoHS
    PackageEPE+Carton  (wooden crate for mass order)
