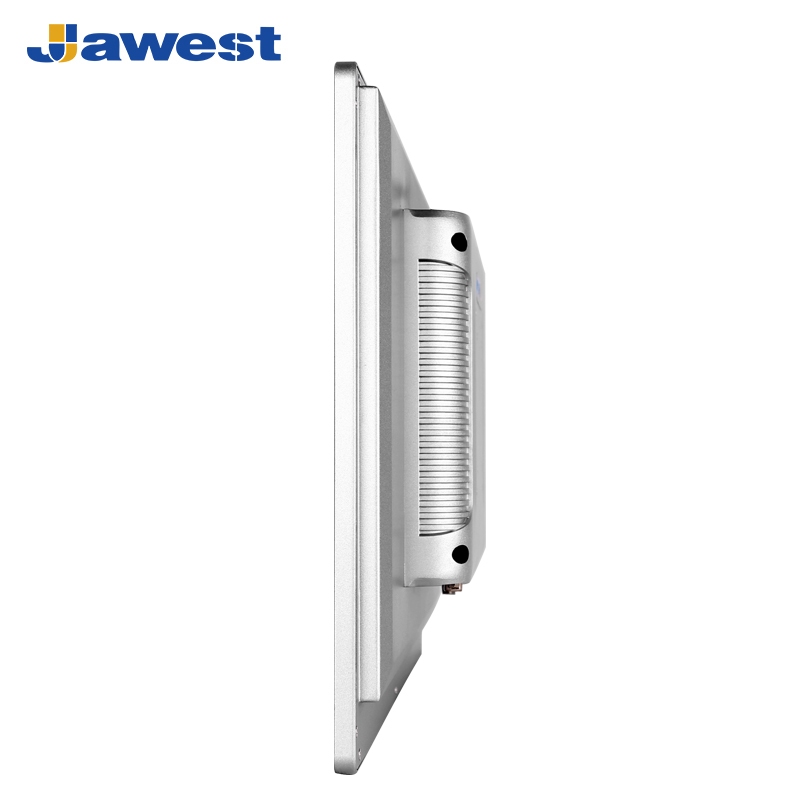

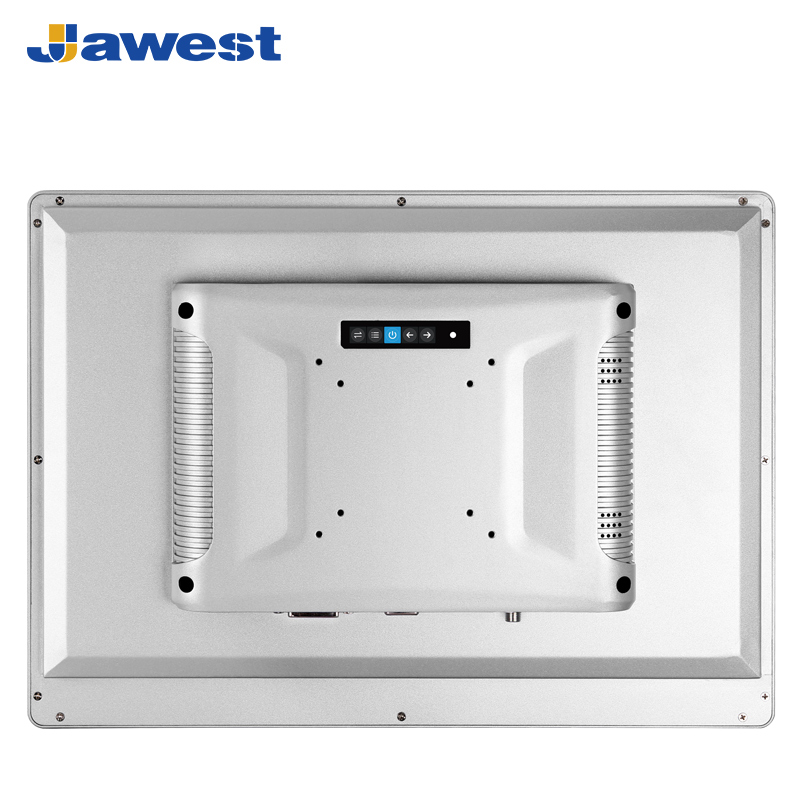

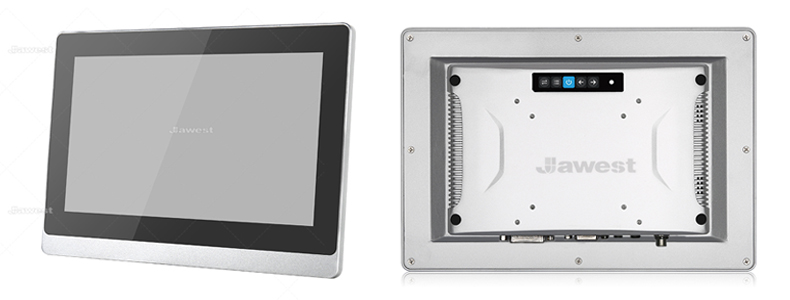

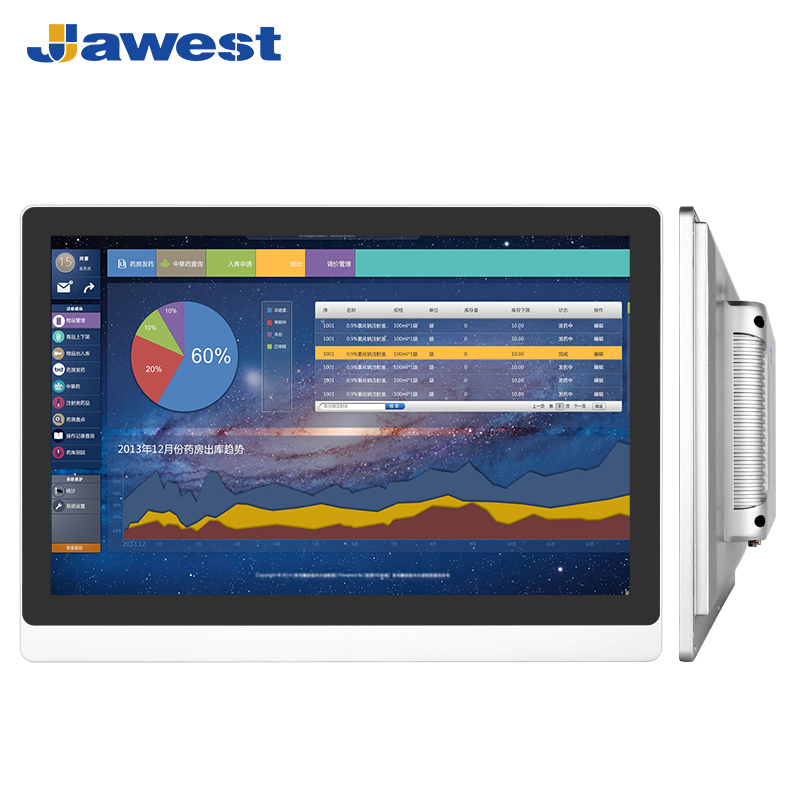

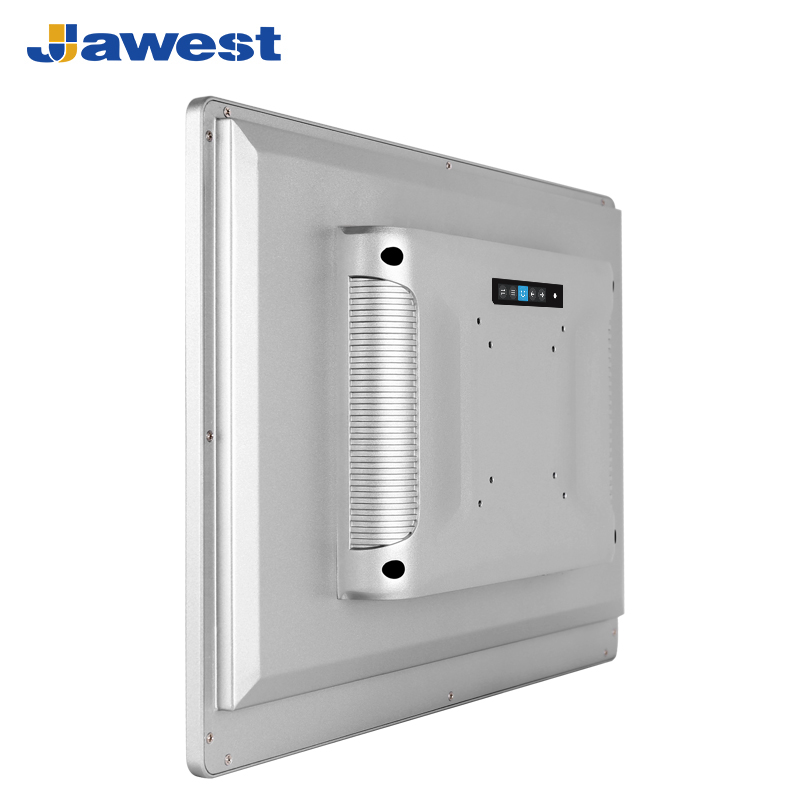

19.1" TFT Monitor IP65 Sunlight Readable Capacitive Touchscreen LCD Industrial Display Monitor


Model: JWS191-M41

● Display size: 19.1 inch

● High-level anti-static

● High-quality industrial LCD panel

● Working temperature:-10-60°C

● Industrial-grade motherboard

● 10mm Bezel Aluminum touch monitor

● 7*24hours running in harsh conditions

● IP65-rated dust-proof and water-proof for front panel

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • IP65 Sunlight Readable Capacitive Touchscreen LCD Industrial Display Monitor


    Model: JWS191-M41


    Nowadays, touchscreen display monitors with industrial-grade quality have offered applications in various industries such as smart city, transportation, education, engineering construction medical, military, manufacturing, AI and hospitality, etc. Providing multi-touch screen types, including resistive, capacitive, Infrared, or non-touchscreen for optional. With brightness levels from 300nits to 1500nits, the industrial TFT LCD monitor supports sunlight-readable and delivers enhanced display performance when used in outdoor applications.


    IP65 rated dust-proof and waterproof, Full-enclosed shell for extra protection against intrusions from unwanted elements such as dirt, dust, and moisture. Moreover, the monitors are also compliant with various international certificates such as RoHS, UL, FCC, CE, and ISO. Our products are highly engineered to be used in a wide variety of rugged applications where harsh environmental condition is commonplace.



    Jawest Industrial Monitor Features


    1. IP65 dust-proof and waterproof enclosure protection.

    2. Offer open frame, VESA, desktop, wall, flush & console mounting options.

    3. Advanced LCD modules with low power long service life LED backlights.

    4. water-proof strip for panel sealing, inner components are all well-protected.

    5. All assembly screws are provided in the spare parts package.

    6. High brightness levels from 300 nits to 1500 nits (high brightness belongs to customization service.)

    7. Sealess IP65-rated dust-proof and waterproof aluminum alloy enclosure.

    8. Adopt a self-developed rugged industrial-grade motherboard, that supports continuous operation in harsh conditions.




    Industrial Display LCD Monitor With Touch Screen 21.5"





    What Are the Advantages and Features of Capacitive Touch Screen Industrial Display?


    For touch screen devices, in terms of touch methods, there are mainly capacitive displays, resistive displays, infrared touch displays, and surface acoustic wave screens. Among these touch methods, capacitive touch screens and resistive touch screens are more favored by users. The significant difference between a capacitive touch screen and a resistive touch screen is that the capacitive screen can achieve multi-touch, while the resistive screen is one-point touch.



    What are the advantages and features of industrial monitors' capacitive touch screens?



    1. Technical principle



    The capacitive touch screen reacts through current and does not need pressure to generate signals. Simply put, the screen is divided into blocks, and a group of mutual capacitance modules is set in each area, which works independently. Therefore, the capacitive screen can independently detect the touch situation of each area, and after processing, multi-point touch can be realized. For the demand for industrial display screens, most users also prefer the choice of capacitive touch screens.



    For the Jawest industrial display screen series, the capacitive touch screen not only supports ten-point touch but also has outstanding electrostatic anti-interference performance, which makes it more advantageous in scene applications such as power cabinets.



    2. Simple correction



    The capacitive touch screen can be installed and used only once or without any correction after production, while the resistance technology needs conventional correction. After the capacitive touch screen is installed on the industrial displays, the touch display manufacturer will simply touch it to check whether the screen is well connected with the internal components of the monitor.



    3. Longer service life



    The service life of the capacitive touch screen of the industrial display is longer because the components in the capacitive touch screen do not need any movement. In the resistive touch screen, the ITO film on the upper layer needs to be thin enough to be elastic, so as to bend down and contact the ITO film below.



    4. Better power consumption



    From the perspective of touch technology, capacitance technology is superior to resistance technology in light loss and system power consumption, so this is also reflected in the use advantages of the capacitive touch screens of the industrial display.



    5. Easier operation



    For the selection of touch mode of the industrial display screen, users need to consider the application scenario, and the selection of capacitive screen or resistive screen mainly depends on the object of touching. If it is finger touch, the capacitive touch screen is a better choice. If you need a stylus, whether plastic or metal, a resistive touch screen is a good choice. The capacitive touch screen can also use a stylus, but it needs a special stylus to match.



    6. Small and medium-sized equipment is more suitable



    For capacitive touch screens, large screens can realize surface capacitive touch, but they can not support gesture recognition at present. Therefore, the inductive capacitive touch screen is mainly used for 7" to 21.5" small and medium-sized touch display devices now, such as industrial display screens and industrial (Windows/Android) all-in-one panel PC, and support gesture recognition.



    7. Low maintenance cost



    The capacitive touch screen of the industrial display screen has little damage to the screen due to the use of fingers to touch, and the capacitive technology itself has the features of wear resistance and long span-life, so the maintenance cost is low, which helps users save a lot of operating expenses.



    8. High Responsive



    Based on the technical principle of multi-point touch of the capacitive display screen, the number of touch times of capacitive display screen of the industrial display screen is more than 50 million, the response time is less than 15ms, and the screen error is less than 1%. The screen response similar to the sensor is more sensitive so that users have a better experience in the process of use.





  • 10mm bezel aluminum touch monitor datasheet
    Size19.1-inch
    Display
    Panel Type Industrial LCD panel A+ grade
    Aspect Ratio16:10
    Resolution1440*900
    Contrast1000:1
    Luminance250nit-1500nit
    Response time5ms
    Display colors16.7M(8-bit)
    View angle89/89/89/89
    Touch ScreenCapacitive touch screen (4/5-wire resistive touch screen/Non-touch screen for optional)
    InterfaceHDMI+DVI+VGA+USB/DVI+VGA+USB optional
    Power InputAC 110-240V, 50/60Hz
    Power Consumption≤30W
    Power Standby≤1.5W
    Plug&PlayDDC1/2B
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C to +60°C (Support wide temperature customization)
    Storage Temperature-40°C to +85°C
    Operation Humidity10%-80%
    Storage Humidity10%-90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    Bezel thickness10mm bezel
    IP ratingIP65 dust-proof and water-proof for Front Panel
    InstallationVESA, Embedded, Wall Mount, Desktop, open frame optional
    CertificatesCE, CCC, ISO9001, FCC, ROHS
    PackageEPE+Carton  (wooden crate for mass order)
