Jawest industrial touch panel PC series is engineered with a robust, aluminum alloy housing with an IP65-rated front bezel for dust & waterproof protection.
Jawest panel PCs support various LCD display sizes (7" to 21.5" optional) to suit the specific professional needs of the clients. With reserved VESA holes on the back chassis, you can quickly install them with ease. Besides, our industrial panel PC support wall-mounted, desktop, embedded and panel mount, etc. These panel PCs feature expandable I/Os, scalable CPU options, shockproof, anti-corrosion, anti-vibration, and elegant appearance design for complex requirements needed by software & hardware integrators with demanding project needs.

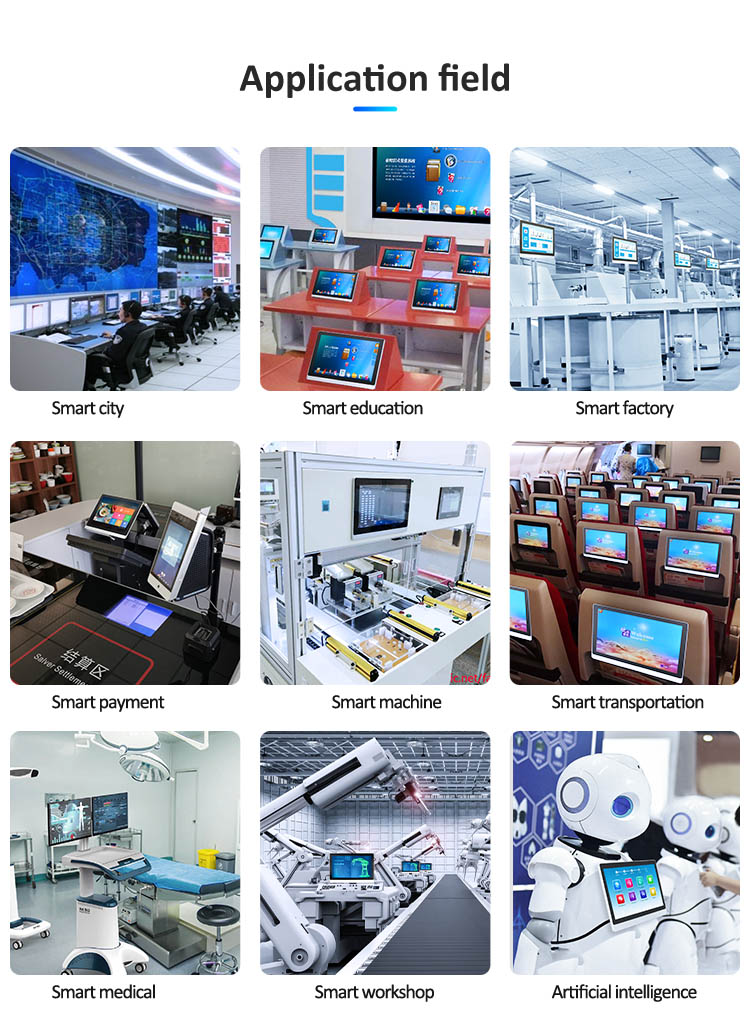

Applications: These industrial panel PCs are suitable for Industry 4.0, IIoT, HMI, Digital Factory, digital signage, and commercial equipment, especially, including industrial machines building, process control, machine vision, industrial robots, and kiosk solutions.

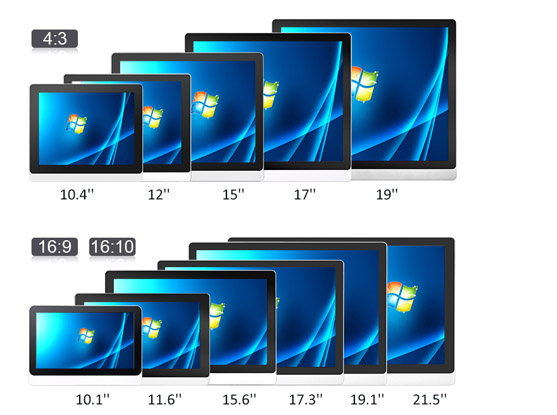

Products Models Fast Guide
| Product Models | LCD Displays | Resolution | Aspect Ratio | Front Bezel |
| JWS070-W-QD | 7" | 1024*600 | 16:9 | 8mm |
| JWS080-W-QD | 8" | 1024*768 | 4:3 | 8mm |
| JWS101-W | 10.1" | 1280*800 | 16:10 | 3/7/10mm Optional |
| JWS104-W | 10.4" | 1024*768 | 4:3 | 3/7/10mm Optional |
| JWS116-W | 11.6" | 1920*1080 | 16:9 | 3/7/10mm Optional |
| JWS120-W | 12" | 1024*768 | 4:3 | 3/7/10mm Optional |
| JWS150-W | 15" | 1024*768 | 4:3 | 3/7/10mm Optional |
| JWS156-W | 15.6" | 1920*1080 | 16:9 | 3/7/10mm Optional |
| JWS170-W | 17" | 1280*1024 | 5:4 | 3/7/10mm Optional |
| JWS173-W | 17.3" | 1920*1080 | 16:9 | 3/7/10mm Optional |
| JWS190-W | 19" | 1280*1024 | 5:4 | 3/7/10mm Optional |
| JWS191-W | 19.1" | 1440*900 | 16:10 | 3/7/10mm Optional |
| JWS215-W | 21.5" | 1920*1080 | 16:9 | 3/7/10mm Optional |

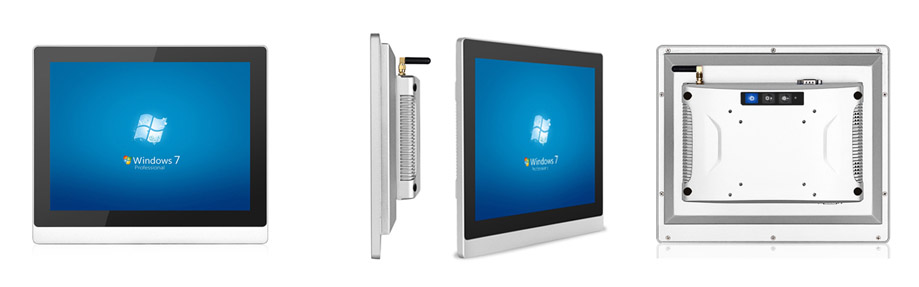

Jawest 2nd-GEN industrial panel PC with ultra-thin 3mm front bezel, suitable for panel mount, embedded mount in machinery building applications.
Click Here to check 2nd-GEN panel PCs'full products line-ups.

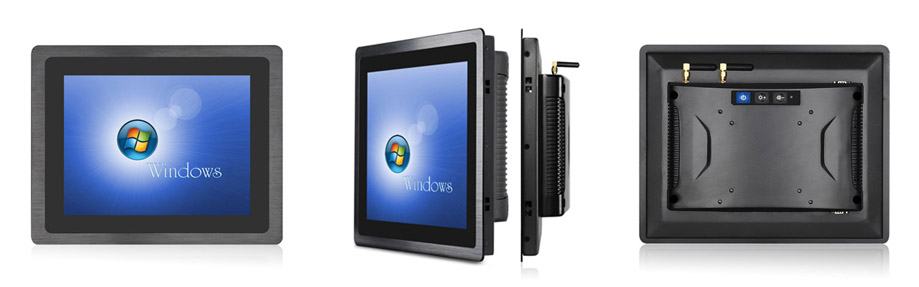

Jawest 4th-GEN industrial touch panel PC with 10mm front bezel, suitable for VESA mount, desktop mount in factory production lines applications.
Click Here to check the 4th-GEN panel PCs' full products line-ups.

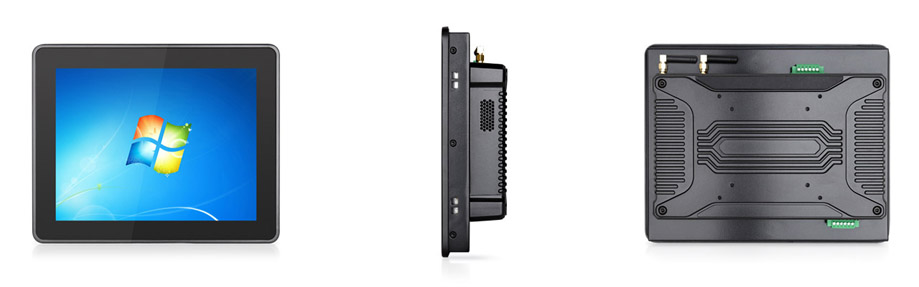

Jawest 5th-GEN industrial fanless panel PC with 7mm front bezel, suitable for panel mount, embedded mount, desktop, wall-mounted, VESA mount in industrial automation fields.
Click Here to check the 5th-GEN panel PCs' full products line-ups.

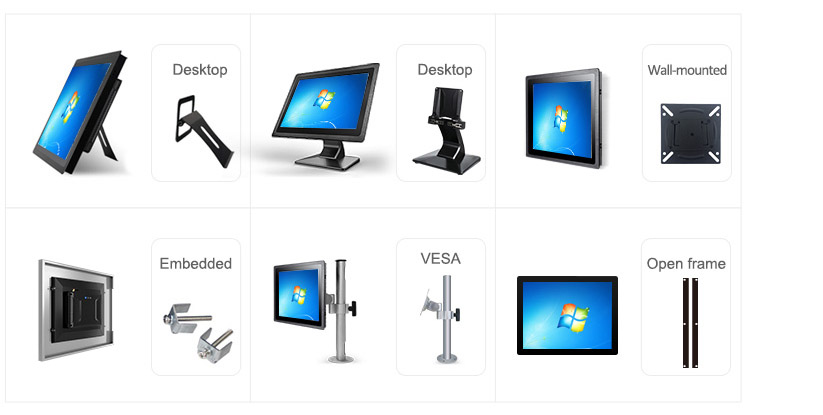

Jawest Industrial Panel PC Installation Methods
Our industrial panel PCs support a variety of installation types according to the different appearances of different series as listed above.
We also support custom installation as per your requirements!
Products Tech Specs
| CPU |
|
| Processor | Intel Celeron |
| Processor Speed | 1.5/1.8/2.0GHz Optional |
| Memory Type | Onboard DDR3 |
| Memory Support | 2GB, 4GB, 8GB Optional |
| Storage type | SSD/HDD |
| Storage support | 32/64/12/256GB Optional |
|
| Touch Screen |
|
| Touch Screen | Projected Capacitive, Resistive, Non-touch |
|
| I/O ports |
|
| USB | 2*USB 2.0; 2*USB 3.0 |
| DC Port | 1*DC 2.5 |
| RJ45 | 1* Realtec8111F (Single Network by default, dual-Network available) |
HDMI
| 1*HDMI for data output, supports 1080P (Max.) |
| RS232 | 2*RS232 (RS485, RS422 Optional)
|
| Speaker Jack | 3.5mm standard interface |
| GPIO | Built-in |
SD/TF Card Slot
| Optional |
| SIM Card Slot | Standard interface |
|
| Operating Systems |
|
Windows
| Windows 7, Windows 8, Windows 10, Windows 10 Pro, Windows 10 IoT Enterprise |
| Linux | Linux |
|
| Environmental |
|
| Operating Temperature | -20°C – 60°C / (-4°F – 140°F) |
| Storage Temperature | -30°C – 70°C / (-22°F – 158°F) |
| Humidity Range | 10% – 90% Non-condensing |
| Cooling Solution | Fanless |
|
| Enclosure |
|
| Material | Aluminum alloy |
| IP Rating | IP65 Front Bezel
|
| Mounting Options | Panel Mount, VESA 75/100mm Mount, Embedded, Desktop, Wall-hanging |
