18.5 inch Full HD Rugged Industrial Panel Mount Monitor18.5 inch Full HD Rugged Industrial Panel Mount Monitor18.5 inch Full HD Rugged Industrial Panel Mount Monitor18.5 inch Full HD Rugged Industrial Panel Mount Monitor

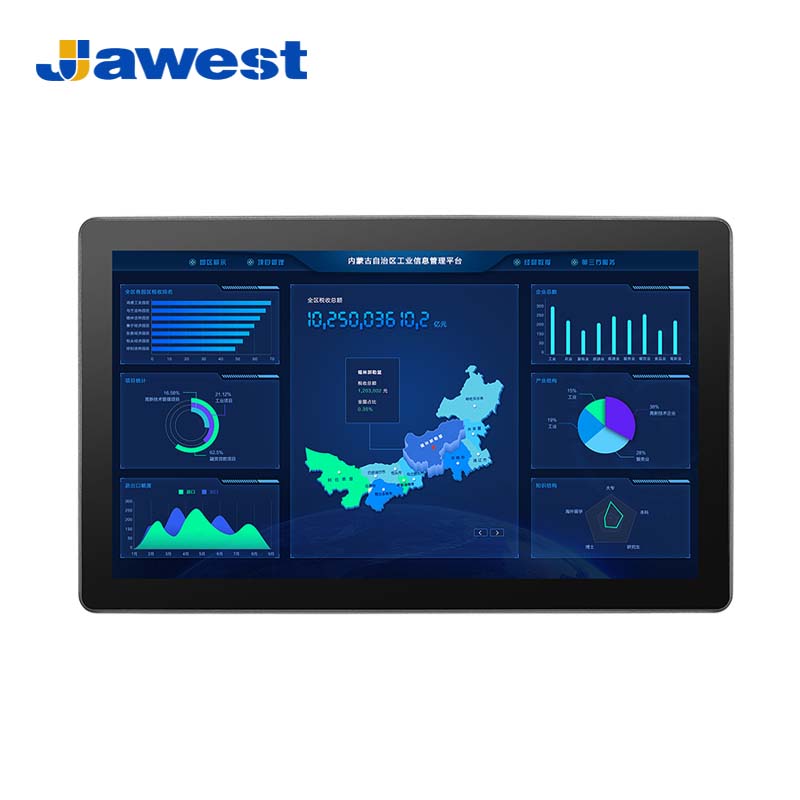

18.5 inch Full HD Rugged Industrial Panel Mount Monitor


● Industrial Grade TFT LCD Panel

● 1920 x 1080 Full HD Resolution

● 300 nits Brightness

● LED backlight

● Superior wide viewing angle 178°(H)/178°(V)

● DC+Audio I/O+VGA+DVI+HDMI+RJ45(Touch cable)

● Customizable items: wide temperature operation, High brightness screen, anti-glare,  UV protection film, DP/BNC port, Built-in speakers, 100W/500W camera, etc.



Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 18.5 inch Full HD Rugged Industrial Panel Mount Monitor


    Model: JWS185-M19


    This 18.5-inch Full HD Rugged Industrial Panel Mount Monitor combines robust construction, high-resolution visuals, and versatile connectivity to deliver a dependable solution for industrial applications that demand durability, performance, and precision.




    Industrial Touch Screen Monitor - Products Models Fast Guide



    Model NameScreen SizeResolution Aspect RatioTouch TechnologyGet A Quote Now
    JWS101-M1910.1"1280*80016:10Capacitive / Resistive / Non-TouchscreenInquiry
    JWS104-M1910.4"1024*7684:3Capacitive / Resistive / Non-TouchscreenInquiry
    JWS116-M1911.6"1920*108016:9Capacitive / Resistive / Non-TouchscreenInquiry
    JWS120-M1912"1024*7684:3Capacitive / Resistive / Non-TouchscreenInquiry
    JWS133-M1913.3"1920*108016:9Capacitive / Resistive / Non-TouchscreenInquiry
    JWS150-M1915"1024*7684:3Capacitive / Resistive / Non-TouchscreenInquiry
    JWS156-M1915.6"1920*108016:9Capacitive / Resistive / Non-TouchscreenInquiry
    JWS170-M1917"1280*10245:4Capacitive / Resistive / Non-TouchscreenInquiry
    JWS173-M1917.3"1920*108016:9Capacitive / Resistive / Non-TouchscreenInquiry
    JWS185-M1918.5"1920*108016:9Capacitive / Resistive / Non-TouchscreenInquiry
    JWS190-M1919"1280*10245:4Capacitive / Resistive / Non-TouchscreenInquiry
    JWS215-M1921.5"1920*108016:9Capacitive / Resistive / Non-TouchscreenInquiry
    JWS238-M1923.8"1920*108016:9Capacitive / Resistive / Non-TouchscreenInquiry






    18.5 inch Full HD Rugged Industrial Panel Mount Monitor

    18.5-inch Display, Full HD Resolution (1920 x 1080)


    Featuring a generous 18.5-inch display with Full HD resolution (1920 x 1080), this rugged monitor provides an immersive viewing experience with sharp detail and vibrant colors. Whether used for monitoring production processes, displaying critical data, or controlling machinery, the high-resolution screen ensures clear visibility of every detail.







    18.5 inch Full HD Rugged Industrial Panel Mount Monitor

    Rugged Enclosure, Withstand Harsh Conditions


    Built to withstand harsh conditions, this industrial monitor is housed in a rugged enclosure designed to endure extreme temperatures, humidity, vibration, and shock. Its robust construction makes it ideal for deployment in manufacturing plants, warehouses, outdoor environments, and other challenging settings where conventional monitors may falter.







    18.5 inch Full HD Rugged Industrial Panel Mount Monitor

    Durable Components, High Reliability and Longevity


    Designed for reliability and longevity, this rugged monitor features durable components and undergoes rigorous testing to ensure consistent performance in demanding industrial environments. Backed by comprehensive technical support and a warranty, it offers peace of mind and confidence in its durability and reliability.







    18.5 inch Full HD Rugged Industrial Panel Mount Monitor

    Advanced Connectivity Options, High Compatibility


    Equipped with advanced connectivity options, including VGA, HDMI, and DVI inputs, this industrial monitor ensures compatibility with a wide range of industrial equipment, computers, and video sources. Additionally, optional touchscreen functionality can be integrated to facilitate intuitive user interaction and streamline workflow processes.







    18.5 inch Full HD Rugged Industrial Panel Mount Monitor

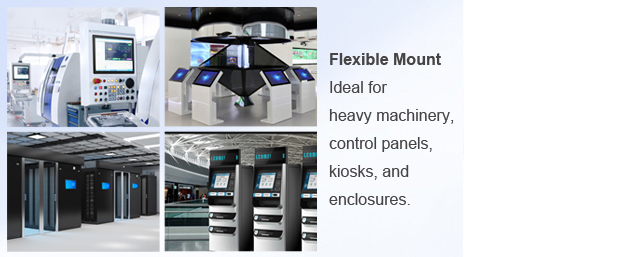

    Flexible and Hassle-free Installation

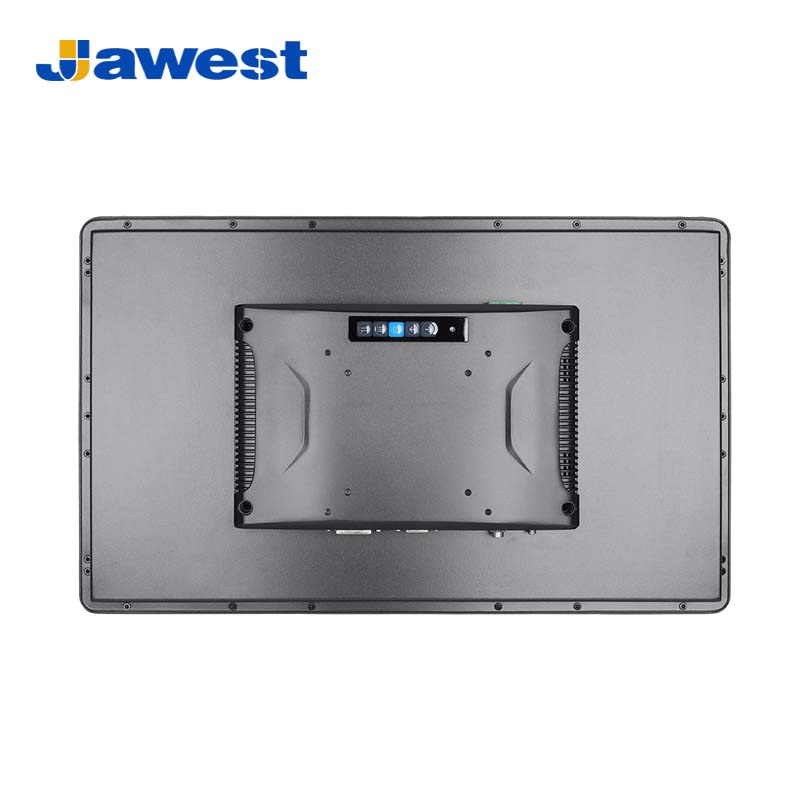

    The panel mount design enables seamless integration into industrial machinery, control panels, kiosks, and enclosures, providing a streamlined and space-saving solution for diverse applications. With its VESA-mount compatibility, installation is flexible and hassle-free, allowing for easy mounting in various orientations to suit specific requirements.







  • 18.5" Industrial Touch Screen Monitor Datasheet
    Size18.5 inch
    Display
    Panel TypeIndustrial LCD panel A, A+ grade
    Aspect Ratio16:9
    Resolution1920*1080
    Contrast1000:1
    Luminance300 Nits (High brightness screen options)
    Response time5ms
    Display colors16.7M(8-bit)
    View angle89°/89°/89°/89° (L/R/U/D)
    Touch ScreenCapacitive touch screen (resistive and Non-touch for optional)

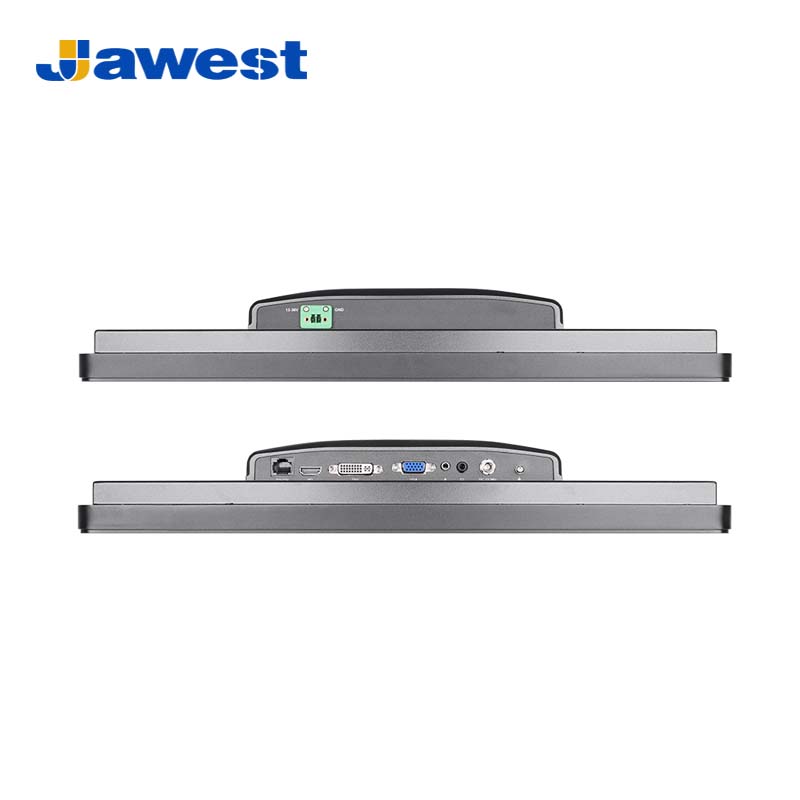

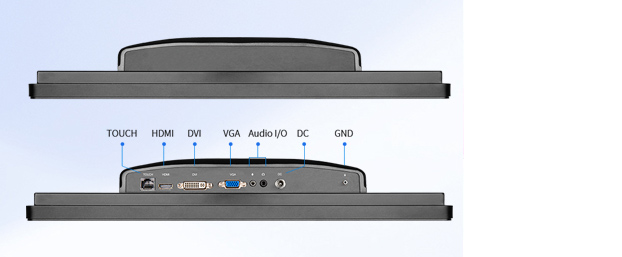

    I/O Ports1*DC, 1*HDMI, 1*RJ45(For touch cable), 1*VGA, 1*DVI, 1*Audio I/O, 1*Phoenix Terminal, 1*GND
    Power InputDC 12~36V
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C ~ 60°C
    Storage Temperature-20°C ~ 70°C
    Operation Humidity10% ~ 80%
    Storage Humidity10% ~ 90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    IP ratingIP65
    InstallationVESA, Embedded, Wall Mount, Desktop optional
    CertificatesCE, CCC, ISO, FCC, ROHS
    PackageEPE+Carton  (wooden crate for mass order)
