Application:
Embedded industrial monitor VGA input LCD touch screenEmbedded industrial monitor VGA input LCD touch screenEmbedded industrial monitor VGA input LCD touch screenEmbedded industrial monitor VGA input LCD touch screen

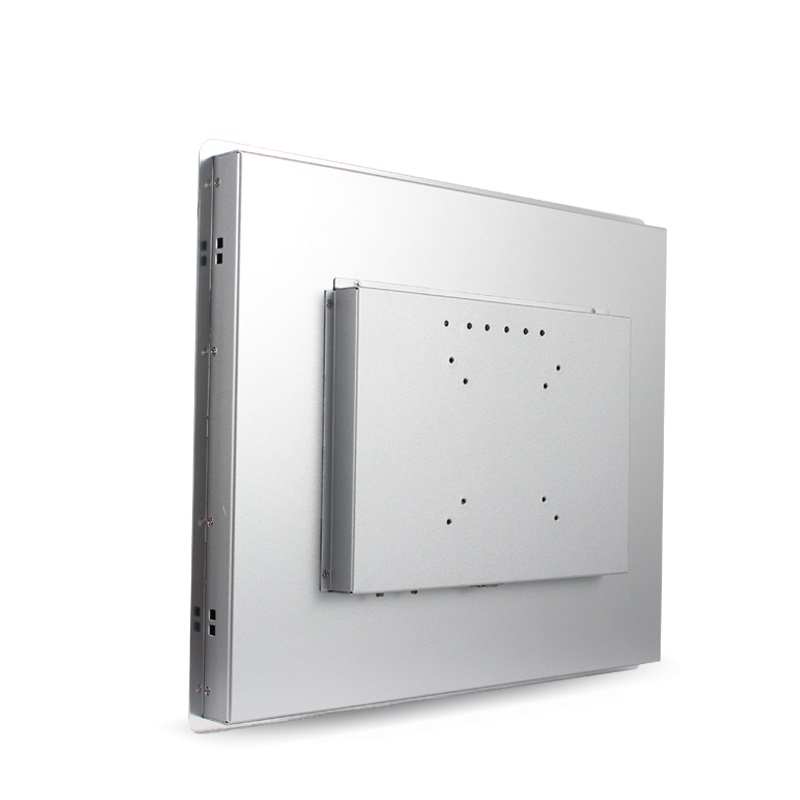

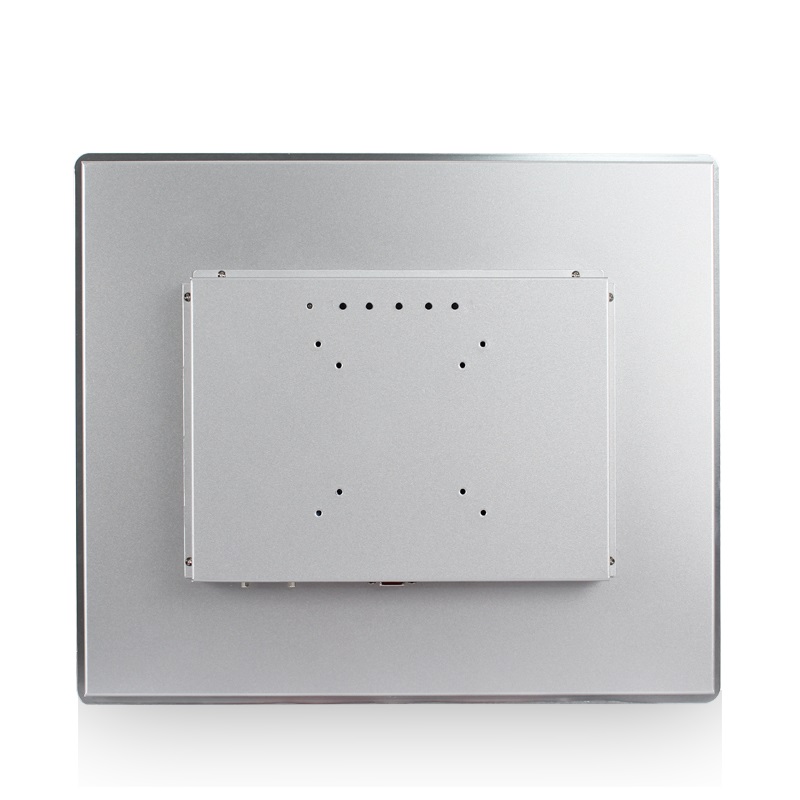

Embedded industrial monitor VGA input LCD touch screen


● Size: 12 inch;

● Aspect Ratio: 4:3

● Resolution: 1024 x 768

● IP65 grade waterproof,dustproof.

● 3mm Bezel Aluminum Touch Monitor

● Days*24hours for all-weather working;

● Industrial grade display chips, long service life;

● High level anti-static, well-protected electronic components;

● Industrial monitor supporting extreme working temperature:-10-60°

● High quality industrial LCD panel, supporting capacitive or resistive touch.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • Industrial Monitor Embedded Display Features

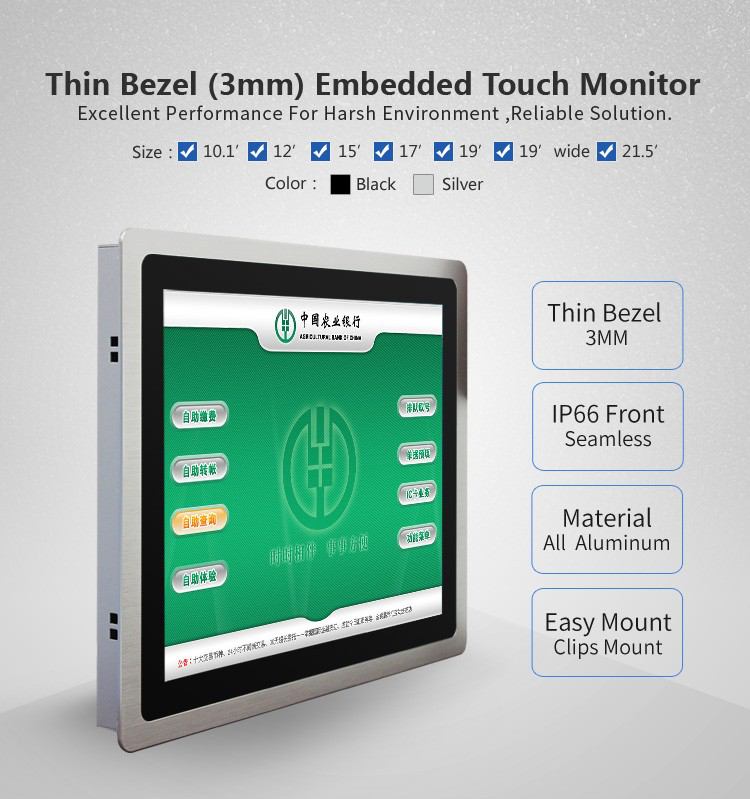

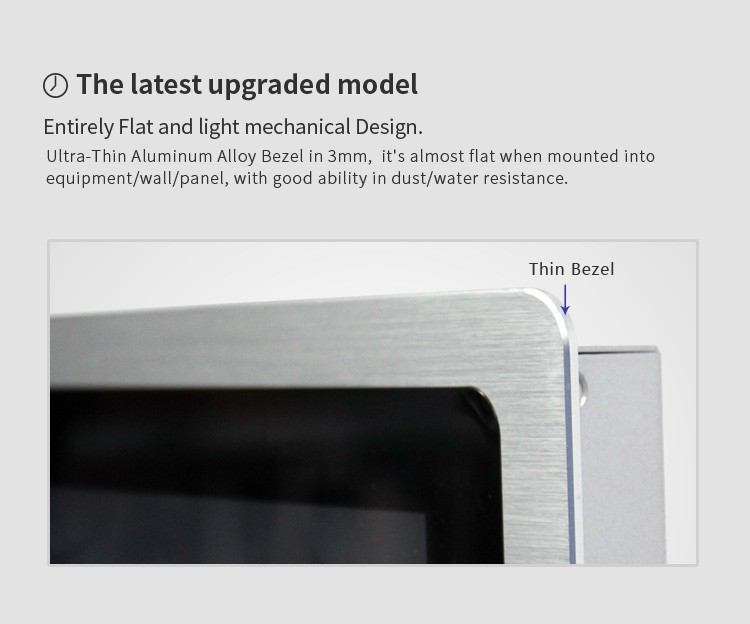

    Our industrial monitor has a fashionable mechanism design with 3mm industrial-grade material

    for front bezel which can avoid damage from chemical corrosion.



    Highlights of Jawest Industrial Monitor:

    1. Aluminum alloy shell with good mechanical properties, better performance for heat dissipation.

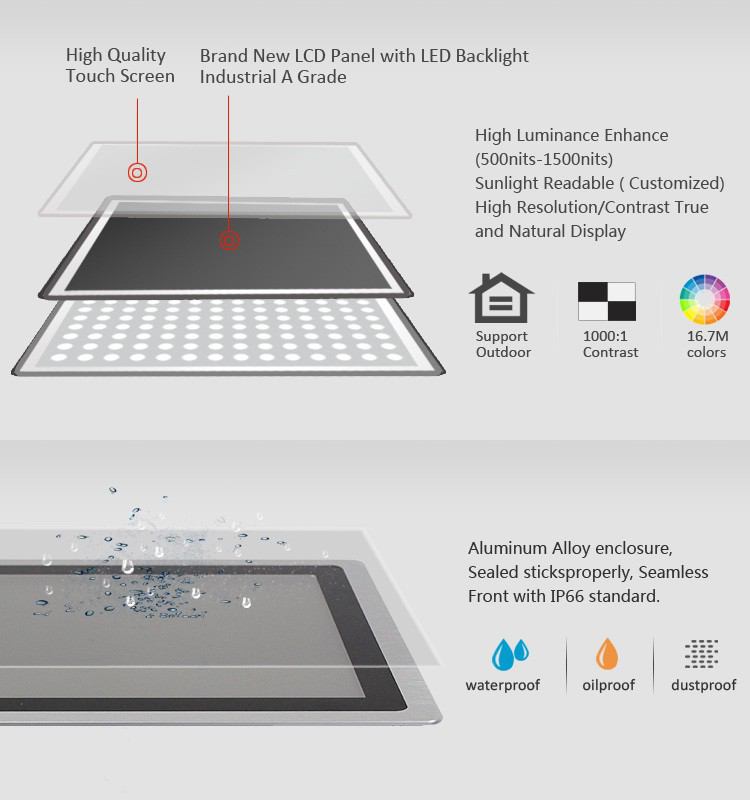

    2. Adopt industrial control HD LCD screen +LED backlight screen,highlight picture,perfect color.

    3. Compatible with various industrial systems/application.

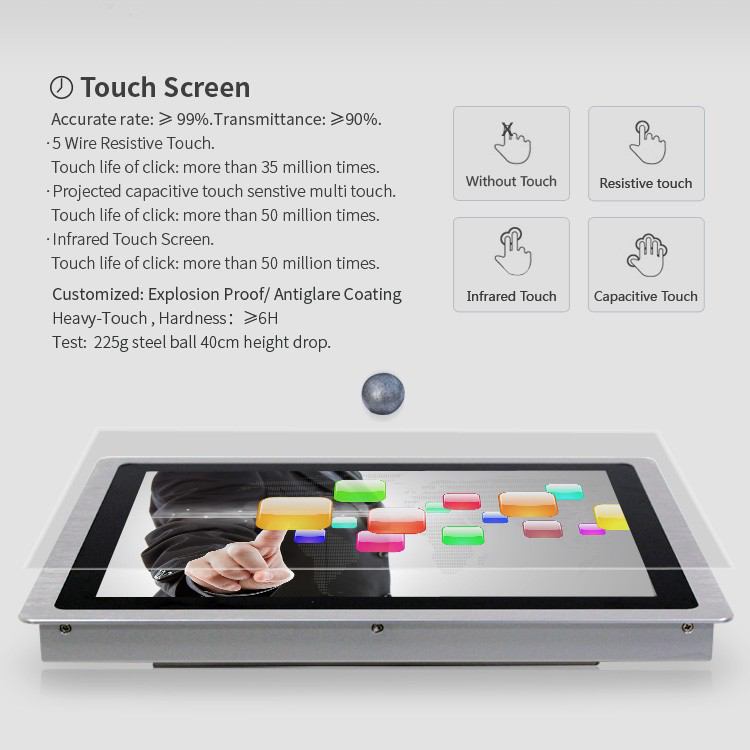

    4. Support without touch,resistive touch,capacitive touch,IR touch.

    5. Whole system is equipped with WI-FI module,more convennient.

    6. Build-in 2.0 speakers,support 1080P HD video.

    7. Complete machine triple protection:explosion-proof, flameproof, moisture-proof.

    8. Shock resistance standard reach GB2423,protection during transportation/working on the sea.

    9. Anti-static level of contact 4KV(customized MAX 6KV),air 8KV( customized MAX 16KV).

    10. Anti surge design,it is proper functioning during Instantaneous voltage rising into 280v.

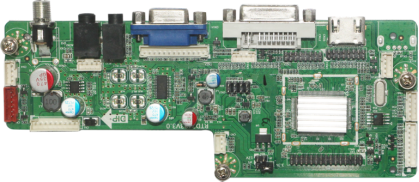

    Motherboard design


    3mm Embedded Industrial Monitor

    Details of PCB Design:

    PCB design: Anti combustion, explosion proof and moistureproof;

    Main chipset: REALTEK industrial level display chip;

    Electronic Components: Industrial level components;

    Power supply: TI chipset, wide range 12-24V input;

    Size: 7-85" max resolution 1920*1080;

    Pressure resistance design: Pressure resistance of solid state capacitance in board 36V/105;

    Antistatic design: Contact: 4KV ; air: 8KV, max is 16KV;

    Automatic sense design: Built-in automatic photosensitive interface, using the luminance auto-

    matic regulation of the photosensitive module;

    Terminal anti-interference:  Up China standard 3C GB/T17626 EMC standard EN55015 and

    EN61547;

    Anti-interface: Complance with 3C EN55022 (EMI) EN55024 (EMS), (Need to cooperate

    with the whole machine);

    Industrial monitor working Tem: -20~70° ;

    Industrial monitor working humidity: 10%-90%.


    Industrial Monitor

    Industrial Monitor

    Industrial Monitor

    Industrial Monitor


    Industrial Monitor

    Industrial Monitor


    Extension Knowledge for Industrial Monitors:

    Assembly of Industrial Monitor Module Should compliance with anti-static level strictly

        The control and drive circuit in the industrial monitor module is a low-voltage, micro-power CMOS circuit,

    which is easily broken by static electricity. It is an irreparable damage for such electrostatic breakdown. So

    it cannot be careless while assemblying industrial monitors. Here are few points as suggestions:

         1. Do not arbitrarily touch the external leads, circuits and ICs on the circuit board.

         2. The soldering iron used for soldering must be well grounded and no leakage.

         3. If the user must touch it directly, human body and the module should be well-grounded, or using the

             hand touch the metal frame of the console to discharge.


  • 3mm bezel aluminum touch monitor datasheet
    Size10.1inch12inch15inch17inch19inch19inch wide21.5inch
    Display
    Panel Type Industrial LCD panel A+ grade
    Aspect Ratio16:94:34:34:34:316:1016:9
    Resolution1366*768800*600 or
    1024*768
    1024*7681280*10241280*10241440*9001920*1080
    Contrast800:1800:11000:11000:11000:11000:11000:1
    Luminance250nit-1000nit250nit-1500nit250nit-1500nit250nit-1500nit250nit-1500nit250nit-1500nit250nit-1500nit
    Response time5ms5ms5ms5ms5ms5ms5ms
    Active Area (mm)227*131250*188.4305.8*229.8341.5*274383*308414.3*262.5478*269.24
    Display colors16.7M(8-bit)16.7M(8-bit)16.7M(8-bit)16.7M(8-bit)16.7M(8-bit)16.7M(8-bit)16.7M(8-bit)
    View angle80/80/80/8075/75/75/7575/75/75/7575/75/75/7585/85/85/8585/85/85/8589/89/89/89
    Touch Screen5 wire resistive touch screen/10-point capacitive touch screen/ Dual Infrared touch

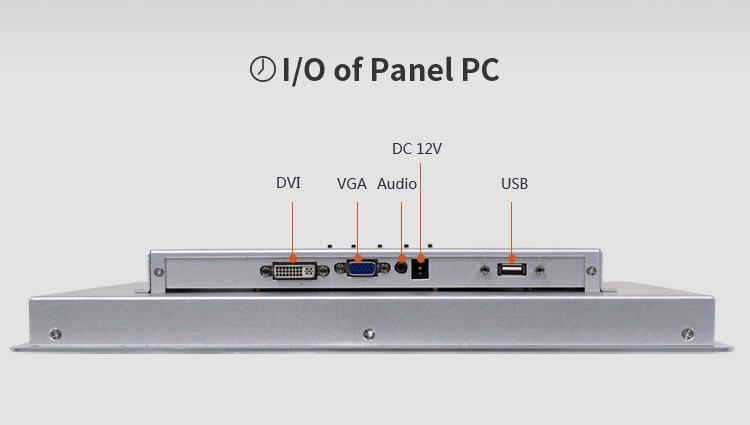

    InterfaceHDMI+DVI+VGA+USB/DVI+VGA+USB optional
    Power InputAC 110-240V, 50/60Hz
    Power Consumption≤30W
    Power Standby≤1.5W
    Plug&PlayDDC1/2B
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C-50°C
    Storage Temperature-10°C-60°C
    Operation Humidity10%--80%
    Storage Humidity10%-90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    Bezel thickness3mm bezel, 10mm bezel(optional)
    IP ratingIP65 for front Panel

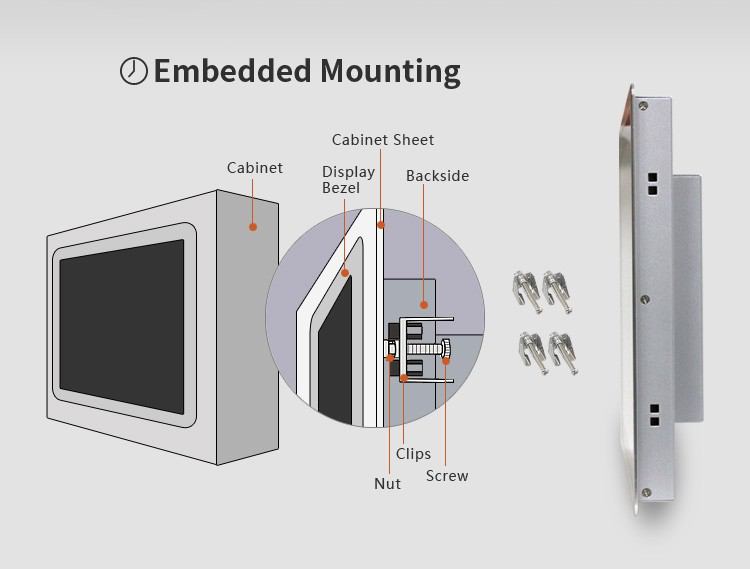

    InstallationVESA, Embedded, Wall Mount, Desktop optional
    CertificatesCE,CCC,ISO,FCC,ROHS
    PackageEPE+Carton  (wooden crate for mass order)
