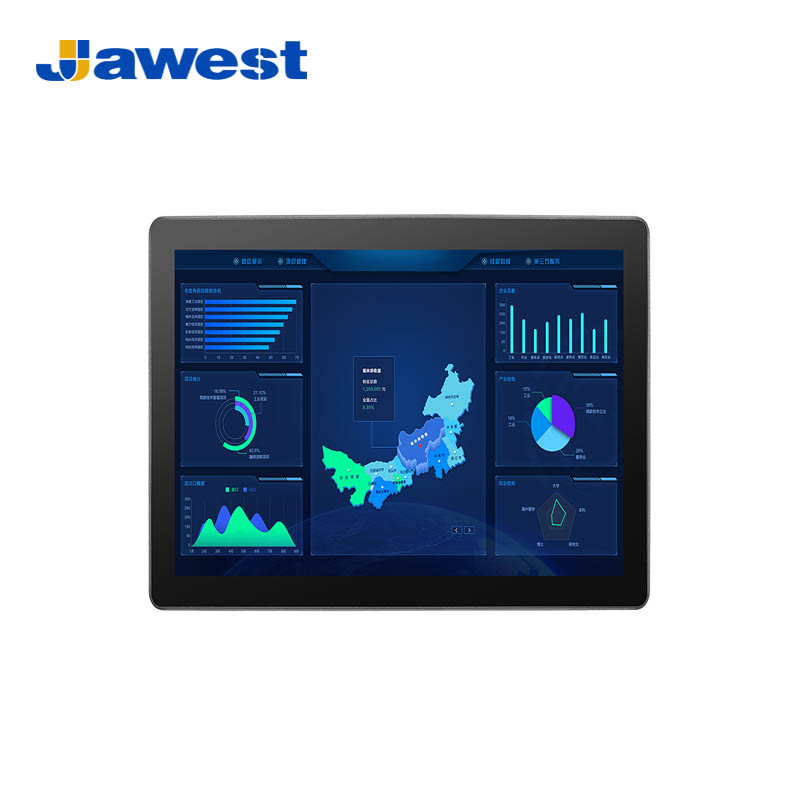

10.4" Industrial TFT Touch Displays IP65 Dustproof Waterproof Monitor


Model: JWS104-M19

● Display size: 10.4 inch

● High-quality industrial LCD panel

● Working temperature: -10°C ~ +60°C

● Industrial-grade motherboard

● Robust Aluminum ally casing touch monitor

● 7*24hours stable working

● IP65-rated dust-proof and water-proof for front panel

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 10.4" Industrial Display IP65 Waterproof and Dustproof


    Model: JWS104-M19


    Jawest 10.4-inch square screen is designed with IP65-rated dust-proof and water-proof for the front panel. Full-enclosed flat touch panel equipped with durable and rugged aluminum alloy casing and assembled with dust and water-proof strip, extensive gasket sealing to provide protection from the ingress of water and dust. Such protection allows for uninterrupted operation in dust, wet, and other harsh conditions.


    The LCD monitors are also designed with fanless heating-dissipation, industrial-grade components such as motherboards, and support high brightness screens that can be viewed clearly under outdoor direct sunlight, the industrial touchscreen monitors are ideal for self-service devices, transportation, education, marine, AI, IIOT, IOT, kiosk, and other outdoor devices, it also supports human-machine interface functions. These all-weather touchscreen HMI displays are available for embedding into other devices.



    Jawest Industrial Monitor Features


    ● 10.4-inch display screen supports bright active matrix TFT

    ● The display definition is 1024x768, high contrast ratio, offers excellent vivid image and color

    ● Fanless heating-dissipation, energy-efficient, low power consumption

    ● Industrial-grade electronic components and motherboard, support longtime operation in harsh industrial manufacturing environments

    ● Wide operational temperature range: -10°C to +60°C (support extended temperature ranges)

    ● Offer multi-installation methods, tabletop, wall, embedded, and VESA arm mounting

    ● RoHS, CE compliant

    ● Three (3) years warranty






  • Industrial Touch Screen Monitor Datasheet
    Size10.4-inch
    Display
    Panel TypeIndustrial LCD panel A, A+ grade
    Aspect Ratio4:3
    Resolution1024*768
    Contrast1000:1
    Luminance400 nits
    Response time5ms
    Active Area (mm)478*269.24
    Display colors16.7M(8-bit)
    View angle80°/80°/80°/80° (L/R/U/D)
    Touch ScreenCapacitive touch screen (5-wire resistive touch screen, Non-touch optional)

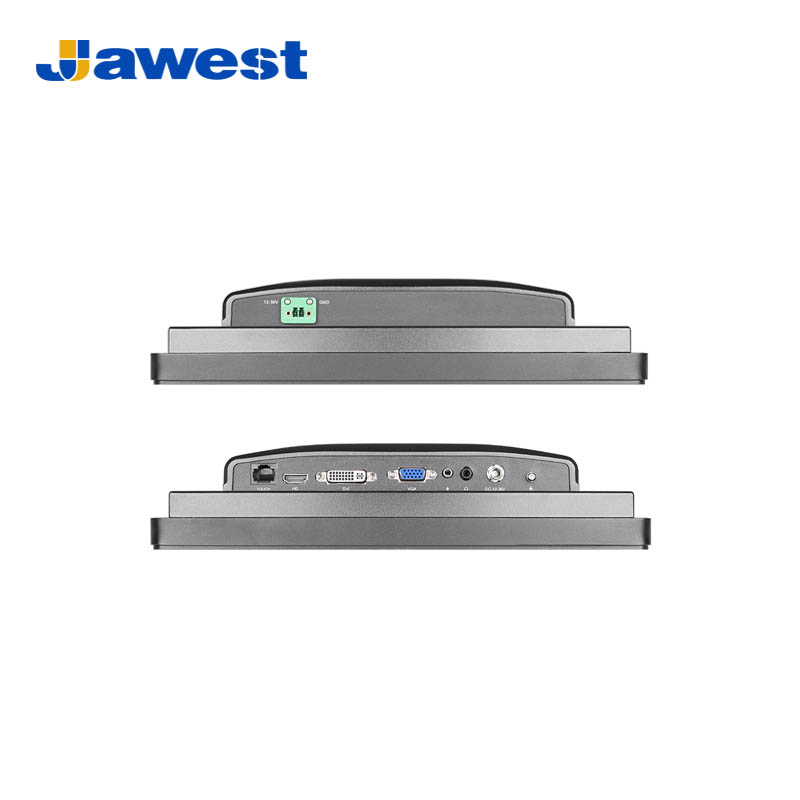

    InterfaceHDMI+DVI+VGA+USB/DVI+VGA+USB optional
    Power InputAC 110-240V, 50/60Hz
    Power Consumption≤30W
    Power Standby≤1.5W
    Plug&PlayDDC1/2B
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C ~ 60°C (Support wide temperature customization)
    Storage Temperature-10°C ~ 60°C
    Operation Humidity10%-80%
    Storage Humidity10%-90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    IP ratingIP65
    InstallationVESA, Embedded, Wall Mount, Desktop, open frame optional
    CertificatesCE, CCC, ISO, FCC, ROHS
    PackageEPE+Carton  (wooden crate for mass order)
