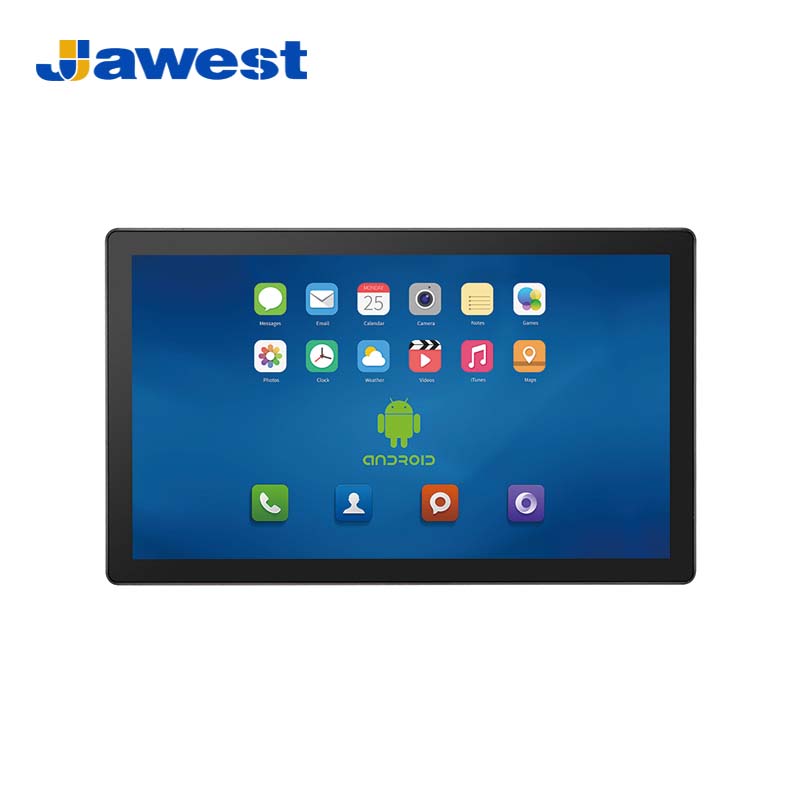

15.6 inch All-in-one PC Touchscreen with RK3568 Quad Core CPU

15.6 inch All-in-one PC Touchscreen with RK3568 Quad Core CPU

● Model: JWS156-A19

● Display size: 15.6 inch.

● RK3568 Quad-Core CPU: delivers robust performance, ensuring smooth multitasking and efficient handling of diverse computing tasks.

● Multiple high-performance processors options: RK3588/RK3399/RK3288/A64, etc.

● Configuration Options: 2/4/8/16/32GB for RAM, 8/16/32/64/128/256GB for storage.

● Versatile Applications: Ideal for a range of applications, including automation productivity, digital signage, interactive kiosks, and more, making it a versatile solution for diverse computing needs.

Appearance of the color

Black

Silver

Description
Parameter
Case

15.6 inch All-in-one PC Touchscreen with RK3568 Quad Core CPU

Model: JWS156-A19

Overview

Jawest 15.6-inch All-in-One PC with touchscreen adopts the integrated design that combines the display, CPU, and other components into a single unit, providing a space-efficient solution for various environments. Featuring the advanced RK3568 Quad-Core CPU. This sleek and versatile computing solution seamlessly combines a high-performance processor with a responsive touchscreen interface, offering a compact and powerful system designed for a variety of applications.

Whether used in a professional industrial setting or deployed as an interactive display in commercial applications, our 15.6-inch All-in-One PC Touchscreen with RK3568 Quad Core CPU offers a powerful and versatile computing solution with a user-friendly touch interface.


Display Parameters	Size	15.6"
	Resolution	1920*1080
	Screen Ratio	16:9
	Brightness	300 nits (Optional high brightness)
	Contrast Ratio	800:1
	Viewing Angle	85°/85°/85°/85° (L/R/U/D)
	Backlight type	LED backlight screen, service life ≥ 50000H
	Touch Screen	Capacitive, Resistive, or Non-touch options

Motherboard Model Selection		JWS64	JWS3288-I	JWS3399-MAIN-L	CX3399-A	CX3568-A	CX3588-A	CX-3588-G
System Architecture	CPU	A64 Quad-Core 1.5GHz	RK3288 Quad-Core 1.8GHz	RK3399 Six-Core 2.0GHz	RK3399 Six-Core 2.0GHz	RK3568 Quad-Core 2.0GHz	RK3588 Octa-Core 2.1GHz	RK3588 Octa-Core 2.1GHz
	Core Architecture	Cortex-A53	Cortex-A17	Dual-Core Cortex-A72 + Quad-Core Cortex-A53	Dual-Core Cortex-A72 + Quad-Core Cortex-A53	Cortex-A55	Quad-Core Cortex-A76 + Quad-Core Cortex-A55	Quad-Core Cortex-A76 + Quad-Core Cortex-A55
	GPU	Mali-T764	Mali-T764	Mali-T860 MP4	Mali-T860 MP4	Mali-G52 2EE	Mali G610 MP4	Mali G610 MP4
	Memory (DDR)	2GB (8GB optional)	2GB (4GB optional)	4GB	2/4GB	2GB (4/8GB optional)	4GB (8/32GB optional)	8GB (16/32GB optional)
	Storage (eMMC)	16GB (32/64GB optional)	16GB (32/64/128/256GB optional)	32GB (64GB optional)	32/64GB (256GB optional)	32GB (64/128/256GB optional)	64GB (128/256GB optional)	64GB (128/256GB optional)
	SATA	/	/	/	/	Support	/	1*SATA hard drive port
	Operating System	Android 6.0	Android 7.1 / 10.0	Android 7.1 / 9.0 / 11	Android 7.1 / 9.0 / 11	Android 12	Android 13.0	Android 12
		/	Linux 4.4	Linux 4.4	Linux 4.4	Linux 5.10	Linux 5.10	Linux 5.10
		/	Ubuntu 18.04	Ubuntu 18.04	Ubuntu 18.04	Ubuntu 20.04	Ubuntu 20.04	Ubuntu 20.04
		/	Debian 10.0	Debian 10.0	Debian 10.0	Debian 11.0	Debian 11.0	Debian 11.0

Networking	Ethernet	1*10M/100M/1000M adaptive Ethernet					1Gigabit Ethernet + 1100 Mbit Ethernet	2*10M/100M/1000M adaptive Ethernet
	4G	Optional. Based on the 4G module selection
	5G	/	/	/	/	/	/	Support M.2 5G module interface
	WIFI	2.4G	Dual-band 2.4/5G	Dual-band 2.4/5G	Dual-band 2.4/5G	WIFI6, 2.4G	WIFI6, Dual-band 2.4/5G	WIFI5/WIFI6 (optional), dual-band 2.4/5G
	Bluetooth	BT5.0	BT5.0	BT5.0	BT5.0	BT5.2	BT5.0	BT4.2 (WIFI 5) / BT5.0 (WIFI 6)

Touch Function	Touch Interface	USB/IIC	USB	USB/IIC

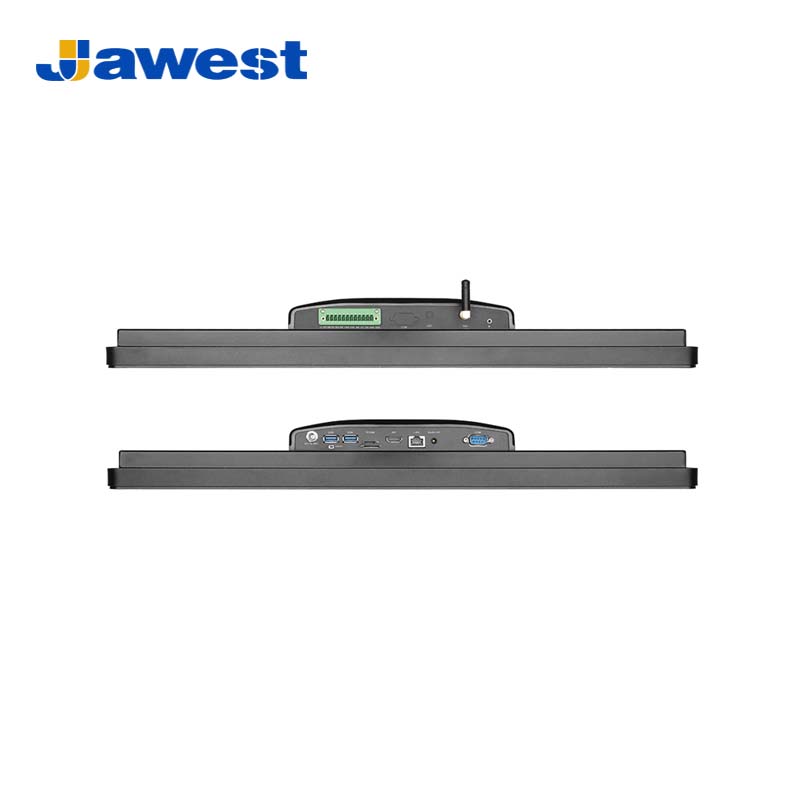

I/O Ports	USB	1USB HOST, 1USB OTG	1USB HOST, 1USB OTG	1USB HOST, 1USB OTG	1USB, 1OTG	2*USB3.0	1USB, 1OTG	4*USB3.0
	HDMI	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1HDMI In+1HDMI Out, 8K
	LAN	1*LAN	1*LAN	1*LAN	1*LAN	1*LAN	2*LAN	2*LAN
	DC	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1
	COM	2RS232+2Reserved holes			1RS232+1Reserved hole
	TF/SIM	1* TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot
	WiFi Antenna	1*WiFi Antenna	1*WiFi Antenna	1WiFi Antenna+1Reserved hole
	Audio I/O	1*3.5mm Earphone Jack
	Reset Button	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT
	GND	1*GND	1*GND	1*GND	1*GND	1*GND	1*GND	1*GND
	MICRO OTG	1*MICRO OTG	/	/	/	/	/	/
	1*12P Phoenix Terminal	/	/	/	1*DC	1*DC	1*DC	1*DC
		/	/	/	1*RS232	1*RS232	1*RS232	1*RS232
		/	/	/	1*RS485	1*RS485	1*RS485	1*RS485
		/	/	/	1*TTL	1*CAN	1*CAN	1*CAN
		/	/	/	3*GPIO	3*GPIO	3*GPIO	3*GPIO
	I/O Expansion	Support

Power	Power Input	12V DC	12V DC	12-36V DC	12-36V DC	12-36V DC	12-36V DC	12-36V DC
Power	Adapter	12V / 4A	12V / 4A	24V / 2.5A	24V / 2.5A	24V / 2.5A	24V / 2.5A	24V / 2.5A

Mechanical	Dimension	391.55240.9847.9mm
	Enclosure	Aluminum alloy housing
	Cooling System	Fanless
	Mounting	Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Product Reliability	Working Temp	-10°C ~ 60°C
	Storage Temp	-20°C ~ 70°C
	Ambient Humidity	5% - 95% (relative humidity non-condensing)
	IP rating	Front IP65
