17 inch Embedded Android Industrial Panel PC for HMI Applications

● Model: JWS170-A19

● Display size: 17 inch.

● Powered by the Android operating system, this Panel PC offers versatility and compatibility with a wide range of industrial applications, ensuring a seamless and familiar user experience.

● Support multiple high-performance processors, including RK3588/RK3568/RK3399/RK3288/A64, etc.

● Configuration Options: 2/4/8/16/32GB for RAM, 8/16/32/64/128/256GB for storage.

● Versatile Mounting Options: Supporting various mounting options, including panel mounts, desktop, and VESA mounts, this Panel PC provides flexibility for seamless integration into diverse industrial setups.

Appearance of the color

Black

Silver

Description
Parameter
Case

17 inch Embedded Android Industrial Panel PC for HMI Applications

Model: JWS170-A19

Overview

This state-of-the-art 17-inch Embedded Android Industrial Panel PC, is Crafted for durability, and meticulously engineered for Human-Machine Interface (HMI) applications in industrial settings. It can withstand the demanding conditions of industrial environments, making it an ideal choice for manufacturing floors, control rooms, and automation setups. This advanced computing solution seamlessly merges the flexibility of the Android operating system with a spacious 17-inch touchscreen display, delivering a reliable and user-friendly interface for control systems, automation processes, and data visualization.

Elevate your HMI applications with our 17-inch Embedded Android Industrial Panel PC, where a perfect balance of advanced features, connectivity, and rugged reliability converge to create a standout solution for controlling and monitoring critical industrial processes.

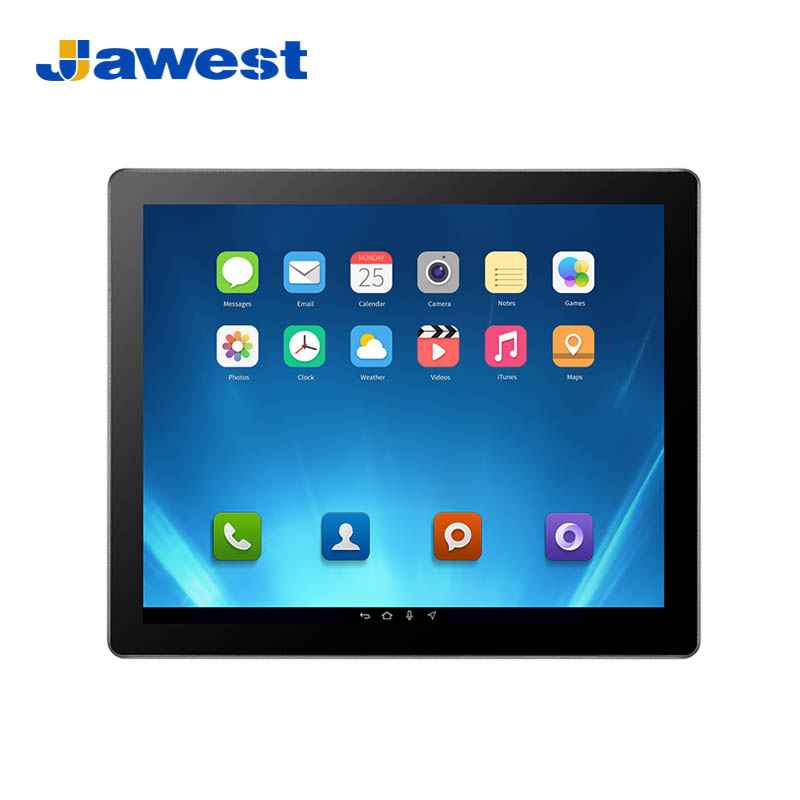

Display Parameters	Size	17"
	Resolution	1280*1024
	Screen Ratio	5:4
	Brightness	250~300 nits (Optional high brightness)
	Contrast Ratio	1000:1
	Viewing Angle	85°/85°/80°/70° (L/R/U/D)
	Backlight type	LED backlight screen, service life ≥ 50000H
	Touch Screen	Capacitive, Resistive, or Non-touch options

Motherboard Model Selection		JWS64	JWS3288-I	JWS3399-MAIN-L	CX3399-A	CX3568-A	CX3588-A	CX-3588-G
System Architecture	CPU	A64 Quad-Core 1.5GHz	RK3288 Quad-Core 1.8GHz	RK3399 Six-Core 2.0GHz	RK3399 Six-Core 2.0GHz	RK3568 Quad-Core 2.0GHz	RK3588 Octa-Core 2.1GHz	RK3588 Octa-Core 2.1GHz
	Core Architecture	Cortex-A53	Cortex-A17	Dual-Core Cortex-A72 + Quad-Core Cortex-A53	Dual-Core Cortex-A72 + Quad-Core Cortex-A53	Cortex-A55	Quad-Core Cortex-A76 + Quad-Core Cortex-A55	Quad-Core Cortex-A76 + Quad-Core Cortex-A55
	GPU	Mali-T764	Mali-T764	Mali-T860 MP4	Mali-T860 MP4	Mali-G52 2EE	Mali G610 MP4	Mali G610 MP4
	Memory (DDR)	2GB (8GB optional)	2GB (4GB optional)	4GB	2/4GB	2GB (4/8GB optional)	4GB (8/32GB optional)	8GB (16/32GB optional)
	Storage (eMMC)	16GB (32/64GB optional)	16GB (32/64/128/256GB optional)	32GB (64GB optional)	32/64GB (256GB optional)	32GB (64/128/256GB optional)	64GB (128/256GB optional)	64GB (128/256GB optional)
	SATA	/	/	/	/	Support	/	1*SATA hard drive port
	Operating System	Android 6.0	Android 7.1 / 10.0	Android 7.1 / 9.0 / 11	Android 7.1 / 9.0 / 11	Android 12	Android 13.0	Android 12
		/	Linux 4.4	Linux 4.4	Linux 4.4	Linux 5.10	Linux 5.10	Linux 5.10
		/	Ubuntu 18.04	Ubuntu 18.04	Ubuntu 18.04	Ubuntu 20.04	Ubuntu 20.04	Ubuntu 20.04
		/	Debian 10.0	Debian 10.0	Debian 10.0	Debian 11.0	Debian 11.0	Debian 11.0

Networking	Ethernet	1*10M/100M/1000M adaptive Ethernet					1Gigabit Ethernet + 1100 Mbit Ethernet	2*10M/100M/1000M adaptive Ethernet
	4G	Optional. Based on the 4G module selection
	5G	/	/	/	/	/	/	Support M.2 5G module interface
	WIFI	2.4G	Dual-band 2.4/5G	Dual-band 2.4/5G	Dual-band 2.4/5G	WIFI6, 2.4G	WIFI6, Dual-band 2.4/5G	WIFI5/WIFI6 (optional), dual-band 2.4/5G
	Bluetooth	BT5.0	BT5.0	BT5.0	BT5.0	BT5.2	BT5.0	BT4.2 (WIFI 5) / BT5.0 (WIFI 6)

Touch Function	Touch Interface	USB/IIC	USB	USB/IIC

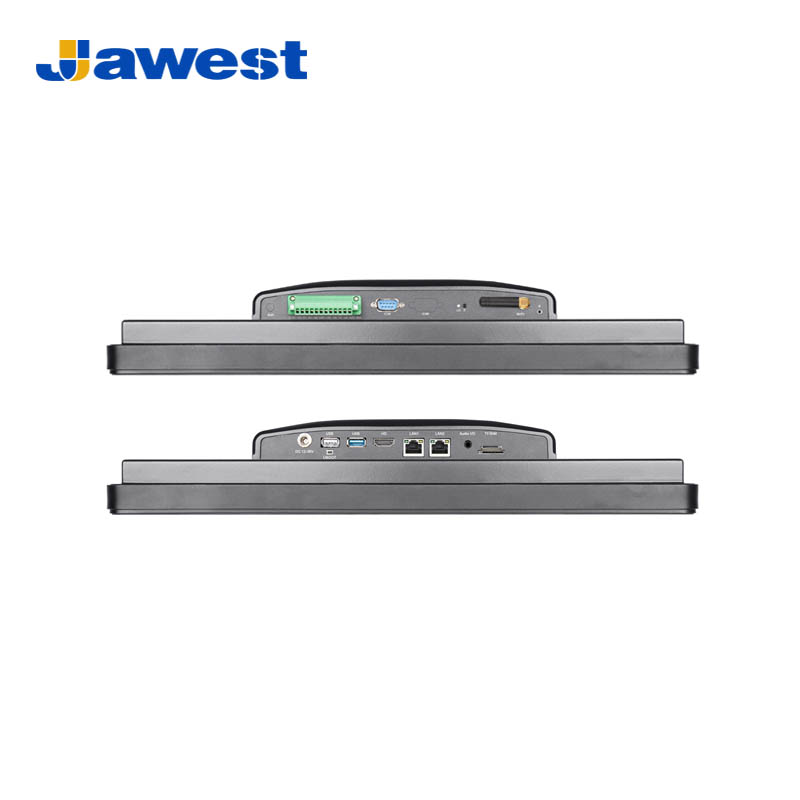

I/O Ports	USB	1USB HOST, 1USB OTG	1USB HOST, 1USB OTG	1USB HOST, 1USB OTG	1USB, 1OTG	2*USB3.0	1USB, 1OTG	4*USB3.0
	HDMI	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1*HDMI, up to 4K	1HDMI In+1HDMI Out, 8K
	LAN	1*LAN	1*LAN	1*LAN	1*LAN	1*LAN	2*LAN	2*LAN
	DC	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1	1*DC2.1
	COM	2RS232+2Reserved holes			1RS232+1Reserved hole
	TF/SIM	1* TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot	1*TF/SIM slot
	WiFi Antenna	1*WiFi Antenna	1*WiFi Antenna	1WiFi Antenna+1Reserved hole
	Audio I/O	1*3.5mm Earphone Jack
	Reset Button	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT	1*UBOOT
	GND	1*GND	1*GND	1*GND	1*GND	1*GND	1*GND	1*GND
	MICRO OTG	1*MICRO OTG	/	/	/	/	/	/
	1*12P Phoenix Terminal	/	/	/	1*DC	1*DC	1*DC	1*DC
		/	/	/	1*RS232	1*RS232	1*RS232	1*RS232
		/	/	/	1*RS485	1*RS485	1*RS485	1*RS485
		/	/	/	1*TTL	1*CAN	1*CAN	1*CAN
		/	/	/	3*GPIO	3*GPIO	3*GPIO	3*GPIO
	I/O Expansion	Support

Power	Power Input	12V DC	12V DC	12-36V DC	12-36V DC	12-36V DC	12-36V DC	12-36V DC
Power	Adapter	12V / 4A	12V / 4A	24V / 2.5A	24V / 2.5A	24V / 2.5A	24V / 2.5A	24V / 2.5A

Mechanical	Dimension	385.32317.7465.5mm
	Enclosure	Aluminum alloy housing
	Cooling System	Fanless

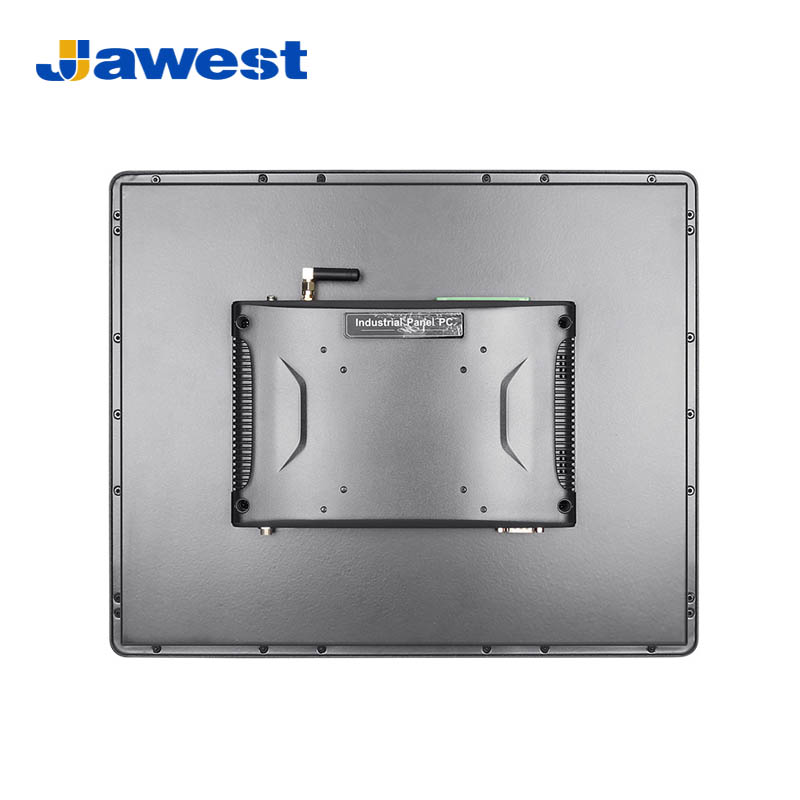

	Mounting	Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Product Reliability	Working Temp	-10°C ~ 60°C
	Storage Temp	-20°C ~ 70°C
	Ambient Humidity	5% - 95% (relative humidity non-condensing)
	IP rating	Front IP65
