● Model: JWS173-A19
● Display size: 17.3 inch.
●Powered by industrial ARM architecture, this Panel PC delivers efficient and reliable performance, making it well-suited for a wide range of industrial applications.
● Support multiple high-performance processors, including RK3588/RK3568/RK3399/RK3288/A64, etc.
● Configuration Options: 2/4/8/16/32GB for RAM, 8/16/32/64/128/256GB for storage.
● Fanless Design: minimizes maintenance requirements and reduces the risk of dust or debris affecting internal components, ensuring prolonged operational reliability.

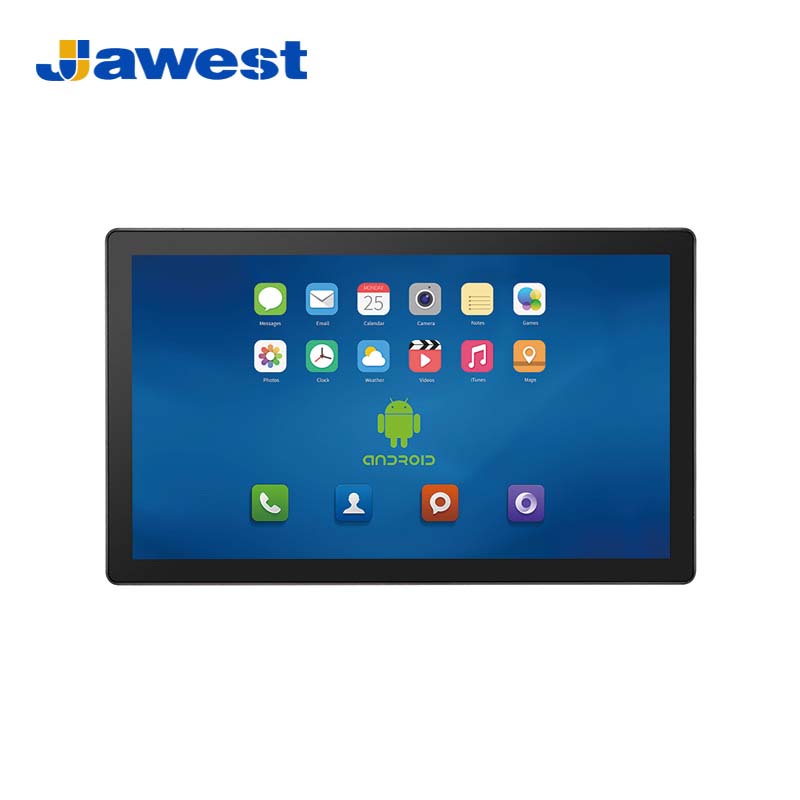

17.3 Industrial ARM Panel PC with Capacitive Touch Screen
Model: JWS173-A19
Overview
Introducing our cutting-edge 17.3-inch Industrial ARM Panel PC, featuring advanced ARM architecture and a responsive capacitive touch screen. This industrial computing solution is meticulously designed for a variety of applications, offering a powerful combination of processing capability and intuitive user interaction.
Elevate your industrial applications with our 17.3-inch Industrial ARM Panel PC, a perfect blend of cutting-edge features, rugged reliability, and responsive touch interaction. Engineered to operate within a wide temperature range, this Panel PC guarantees stability and reliability in diverse industrial climates. Whether deployed in manufacturing, automation, or control systems, this Panel PC is designed to meet the demands of diverse industrial environments with efficiency and precision.
Display Parameters | Size | 17.3" | ||||||
Resolution | 1920*1080 | |||||||
Screen Ratio | 16:9 | |||||||
Brightness | 400 nits (Optional high brightness) | |||||||
Contrast Ratio | 600:1 | |||||||
Viewing Angle | 85°/85°/60°/80° (L/R/U/D) | |||||||
Backlight type | LED backlight screen, service life ≥ 50000H | |||||||
Touch Screen | Capacitive, Resistive, or Non-touch options | |||||||
Motherboard Model Selection | JWS64 | JWS3288-I | JWS3399-MAIN-L | CX3399-A | CX3568-A | CX3588-A | CX-3588-G | |
System Architecture | CPU | A64 Quad-Core 1.5GHz | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz | RK3588 Octa-Core 2.1GHz |
Core Architecture | Cortex-A53 | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
GPU | Mali-T764 | Mali-T764 | Mali-T860 MP4 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | Mali G610 MP4 | |
Memory (DDR) | 2GB (8GB optional) | 2GB (4GB optional) | 4GB | 2/4GB | 2GB (4/8GB optional) | 4GB (8/32GB optional) | 8GB (16/32GB optional) | |
Storage (eMMC) | 16GB (32/64GB optional) | 16GB (32/64/128/256GB optional) | 32GB (64GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | 64GB (128/256GB optional) | |
SATA | / | / | / | / | Support | / | 1*SATA hard drive port | |
Operating System | Android 6.0 | Android 7.1 / 10.0 | Android 7.1 / 9.0 / 11 | Android 7.1 / 9.0 / 11 | Android 12 | Android 13.0 | Android 12 | |
/ | Linux 4.4 | Linux 4.4 | Linux 4.4 | Linux 5.10 | Linux 5.10 | Linux 5.10 | ||
/ | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 20.04 | Ubuntu 20.04 | Ubuntu 20.04 | ||
/ | Debian 10.0 | Debian 10.0 | Debian 10.0 | Debian 11.0 | Debian 11.0 | Debian 11.0 | ||
Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet | 2*10M/100M/1000M adaptive Ethernet | ||||
4G | Optional. Based on the 4G module selection | |||||||
5G | / | / | / | / | / | / | Support M.2 5G module interface | |
WIFI | 2.4G | Dual-band 2.4/5G | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | WIFI5/WIFI6 (optional), dual-band 2.4/5G | |
Bluetooth | BT5.0 | BT5.0 | BT5.0 | BT5.0 | BT5.2 | BT5.0 | BT4.2 (WIFI 5) / BT5.0 (WIFI 6) | |
Touch Function | Touch Interface | USB/IIC | USB | USB/IIC | ||||

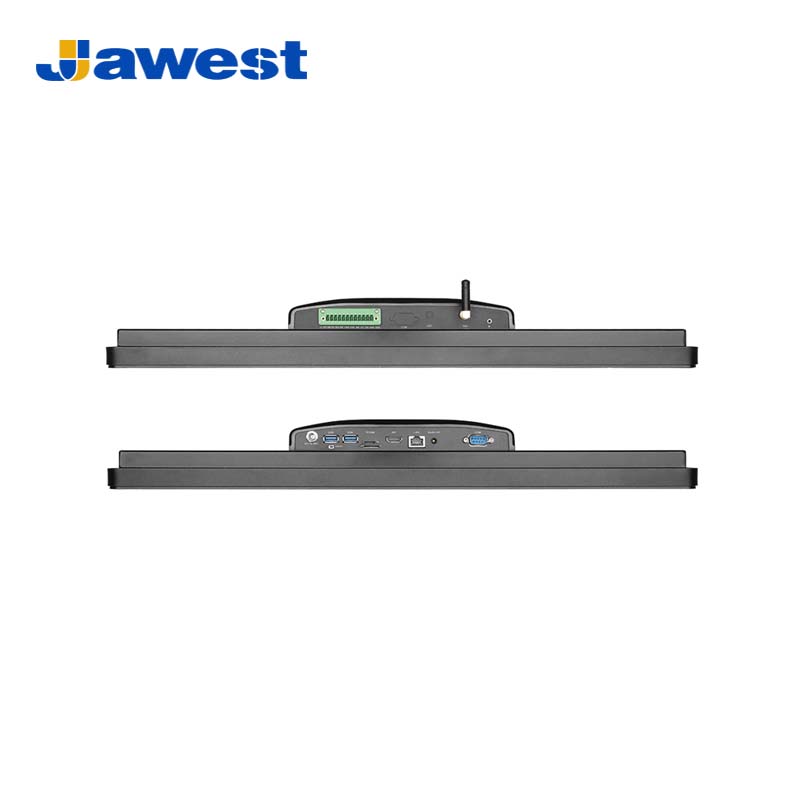

I/O Ports | USB | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB, 1*OTG | 2*USB3.0 | 1*USB, 1*OTG | 4*USB3.0 |
HDMI | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI In+1*HDMI Out, 8K | |
LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 2*LAN | 2*LAN | |
DC | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | |
COM | 2*RS232+2*Reserved holes | 1*RS232+1*Reserved hole | ||||||
TF/SIM | 1* TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | |
WiFi Antenna | 1*WiFi Antenna | 1*WiFi Antenna | 1*WiFi Antenna+1*Reserved hole | |||||
Audio I/O | 1*3.5mm Earphone Jack | |||||||
Reset Button | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | |
GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | |
MICRO OTG | 1*MICRO OTG | / | / | / | / | / | / | |
1*12P Phoenix Terminal | / | / | / | 1*DC | 1*DC | 1*DC | 1*DC | |
/ | / | / | 1*RS232 | 1*RS232 | 1*RS232 | 1*RS232 | ||
/ | / | / | 1*RS485 | 1*RS485 | 1*RS485 | 1*RS485 | ||
/ | / | / | 1*TTL | 1*CAN | 1*CAN | 1*CAN | ||
/ | / | / | 3*GPIO | 3*GPIO | 3*GPIO | 3*GPIO | ||
I/O Expansion | Support | |||||||
Power | Power Input | 12V DC | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC |
Adapter | 12V / 4A | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
Mechanical | Dimension | 429.68*262.61*65.5mm | ||||||
Enclosure | Aluminum alloy housing | |||||||
Cooling System | Fanless | |||||||
Mounting | Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc. | |||||||
Product Reliability | Working Temp | -10°C ~ 60°C | ||||||
Storage Temp | -20°C ~ 70°C | |||||||
Ambient Humidity | 5% - 95% (relative humidity non-condensing) | |||||||
IP rating | Front IP65 |
