Application:
Industrial Android Tablet PC Thin Flat Panel 7 InchIndustrial Android Tablet PC Thin Flat Panel 7 InchIndustrial Android Tablet PC Thin Flat Panel 7 InchIndustrial Android Tablet PC Thin Flat Panel 7 Inch

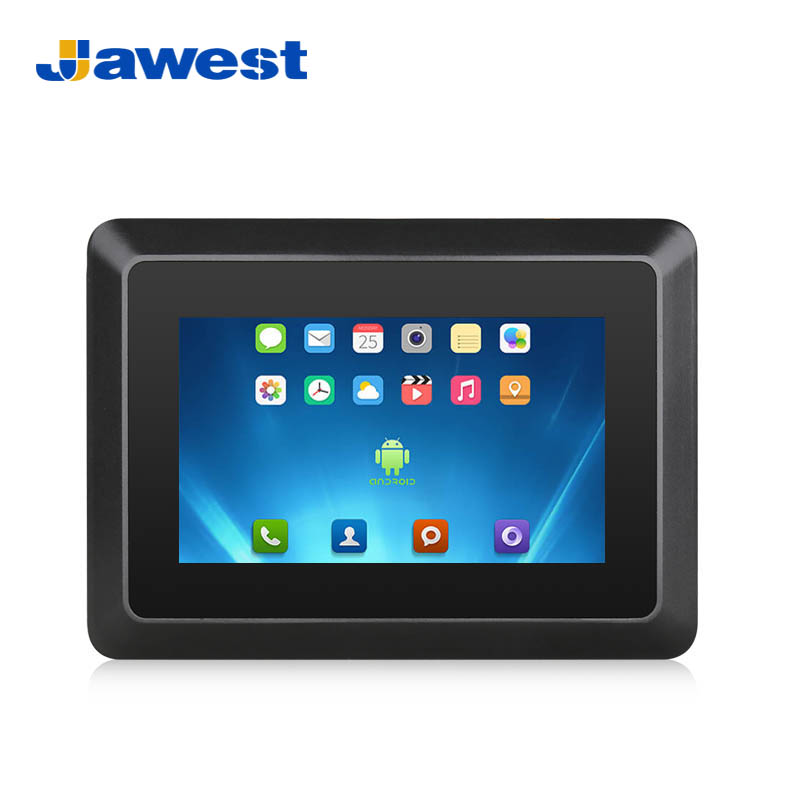

Industrial Android Tablet PC Thin Flat Panel 7 Inch


Model: JWS070-A-QD

● Display size: 7 inch.

● 1024 * 600 resolution, 16:9 Aspect Ratio.

● Flat design, elegant appearance.

● IP65 rating of dustproof and waterproof.

● Multiple installation: embedded / desktop / wall / fold / VESA.

● Ultra-sensitive touch screen, precise positioning, free control.

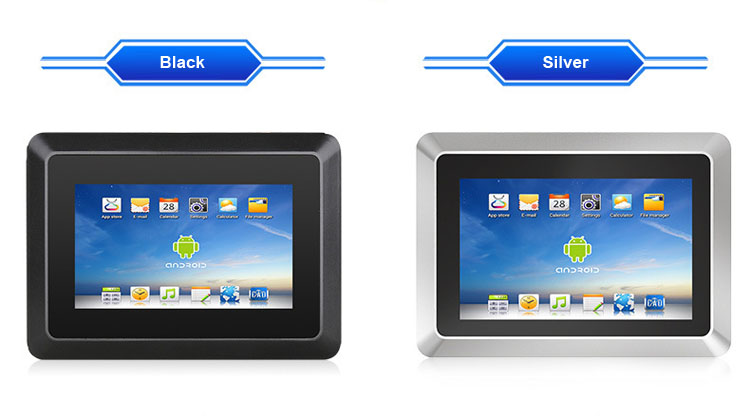

Appearance of the color
Black
Silver
share:
Download:
  • Description
  • Parameter
  • Case
  • 7 inch Industrial Touch Android Tablet PC For HMI Automation


    Model: JWS070-A-QD


    The Jawest 7-inch industrial tablet PCs are designed to provide high quality and advanced features for reliable operation for many years.


    It is meticulously crafted to streamline your operations and enhance productivity. Powered by the versatile Android operating system, this device seamlessly integrates into your workflow, offering unparalleled compatibility and flexibility.


    Designed with the rigors of industrial environments in mind, our panel PC boasts robust construction, ensuring reliability even in the harshest conditions. Its compact 7-inch display provides a perfect balance between screen real estate and portability, making it ideal for a wide range of applications.



    7" Industrial Tablet PC Features


    ● Processor: Rockchip RK3568, Cortex-A55 Quad-Core, 64 bits, 2.0GHz. (A64/RK3288/RK3399/RK3588 options)

    ● Memory: 2GB (4/8GB options).

    ● Storage: 32GB (64/128/256GB options).

    ● OS: Android12 / Linux 5.10 / Ubuntu 20.04 / Debian 11 options.

    ● Display panel up to IP65-rating dust-proof and waterproof.

    ● Multiple interfaces available supports I/O expansion

    ● Small, lightweight, and easy to install.

    ● Capacitive multi-touch screen, easy to touch, fast response, no lagging at all.

    ● Low power architecture design, efficient heating-dissipation, and low carbon energy saving.

    ● Aluminum alloy with good electrical conductivity, thermal conductivity, and corrosion resistance.

    ● Industrial Android motherboard, anti-static and anti-electromagnetic interference

    ● Clear screen, vivid color,  easy to read the screen when applying to indoor and outdoor applications.




    Industrial Android Tablet PC Thin Flat Panel 7 Inch

    Industrial Android Tablet PC Thin Flat Panel 7 Inch






  • Display Parameters
    Size7"
    Resolution1024*600
    Screen Ratio16:9
    Brightness330 nits (Optional high brightness)
    Contrast Ratio500:1
    Viewing Angle75°/75°/70°/75° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Touch ScreenCapacitive, Resistive, or Non-touch options









    Motherboard Model SelectionJWS64
    JWS3288-IJWS3399-MAIN-LCX3399-ACX3568-ACX3588-ACX-3588-G
    System ArchitectureCPUA64 Quad-Core 1.5GHzRK3288 Quad-Core 1.8GHzRK3399 Six-Core 2.0GHzRK3399 Six-Core 2.0GHzRK3568 Quad-Core 2.0GHzRK3588 Octa-Core 2.1GHzRK3588 Octa-Core 2.1GHz
    Core Architecture Cortex-A53Cortex-A17Dual-Core Cortex-A72 + Quad-Core Cortex-A53Dual-Core Cortex-A72 + Quad-Core Cortex-A53Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55Quad-Core Cortex-A76 + Quad-Core Cortex-A55
    GPUMali-T764Mali-T764Mali-T860 MP4Mali-T860 MP4Mali-G52 2EEMali G610 MP4Mali G610 MP4
    Memory (DDR)2GB (8GB optional)2GB (4GB optional)4GB2/4GB2GB (4/8GB optional)4GB (8/32GB optional)8GB (16/32GB optional)
    Storage (eMMC)16GB (32/64GB optional)16GB (32/64/128/256GB optional)32GB (64GB optional)32/64GB (256GB optional)32GB (64/128/256GB optional)64GB (128/256GB optional)64GB (128/256GB optional)
    SATA////Support/1*SATA hard drive port
    Operating SystemAndroid 6.0Android 7.1 / 10.0Android 7.1 / 9.0 / 11 Android 7.1 / 9.0 / 11Android 12Android 13.0Android 12
    /Linux 4.4Linux 4.4Linux 4.4Linux 5.10/Linux 5.10
    /Ubuntu 18.04Ubuntu 18.04Ubuntu 18.04Ubuntu 20.04/Ubuntu 20.04
    /Debian10.0Debian10.0Debian 10Debian 11/Debian 11









    NetworkingEthernet1*10M/100M/1000M adaptive Ethernet1*Gigabit Ethernet + 1*100 Mbit Ethernet2*10M/100M/1000M adaptive Ethernet
    4GOptional. Based on the 4G module selection
    5G//////Support M.2 5G module interface
    WIFI2.4GDual-band 2.4/5GDual-band 2.4/5GDual-band 2.4/5GWIFI6, 2.4GWIFI6, Dual-band 2.4/5GWIFI5/WIFI6 (optional), dual-band 2.4/5G
    BluetoothBT5.0BT5.0BT5.0BT5.0BT5.2BT5.0BT4.2 (WIFI 5) / BT5.0 (WIFI 6)









    Touch FunctionTouch InterfaceUSB/IICUSBUSB/IIC

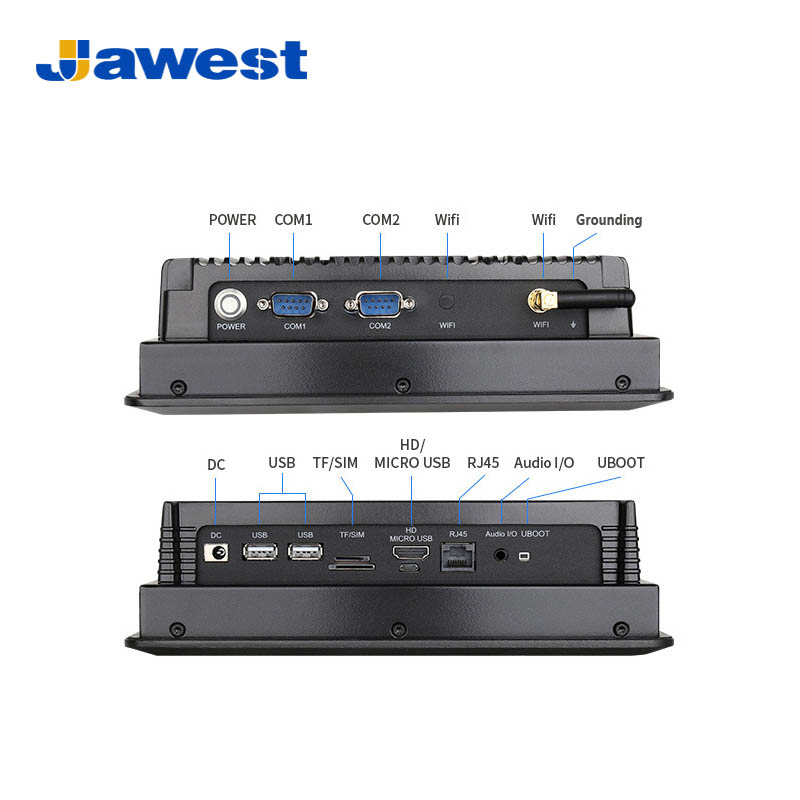

    I/O PortsUSB2*USB1*USB HOST, 1*USB OTG1*USB HOST, 1*USB OTG1*USB, 1*OTG2*USB3.01*USB, 1*OTG4*USB3.0
    HDMI1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI, up to 4K1*HDMI In, 1*HDMI Out, 8K
    LAN1*LAN1*LAN1*LAN1*LAN1*LAN2*LAN2*LAN
    DC1*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.11*DC2.1
    COM2*RS2322*RS2322*RS2321*RS2321*RS2321*RS2321*RS232
    TF/SIM1* TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot1*TF/SIM slot
    WiFi Antenna1*WiFi Antenna+1*Reserved hole
    Audio I/O1*3.5mm Earphone Jack
    Reset Button1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT1*UBOOT
    GND1*GND1*GND1*GND1*GND1*GND1*GND1*GND
    OTG1*OTG//////
    12P Phoenix Terminal ///1*12P (1*DC+1*RS232+1*RS485+1*TTL+3*GPIO)1*12P (1*DC+1*RS232+1*RS485+1*CAN+3*GPIO)/1*12P (1*DC+1*RS232+1*RS485+1*CAN+3*GPIO)
    I/O Expansion Support









    PowerPower Input12V DC12V DC12-36V DC12-36V DC12-36V DC12-36V DC12-36V DC
    Adapter12V / 4A12V / 4A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A24V / 2.5A



    MechanicalDimension225.1*160.7*59mm
    EnclosureAluminum alloy housing
    Cooling SystemFanless
    MountingPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.



    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient Humidity 5% - 95% (relative humidity non-condensing)
    IP ratingFront IP65
