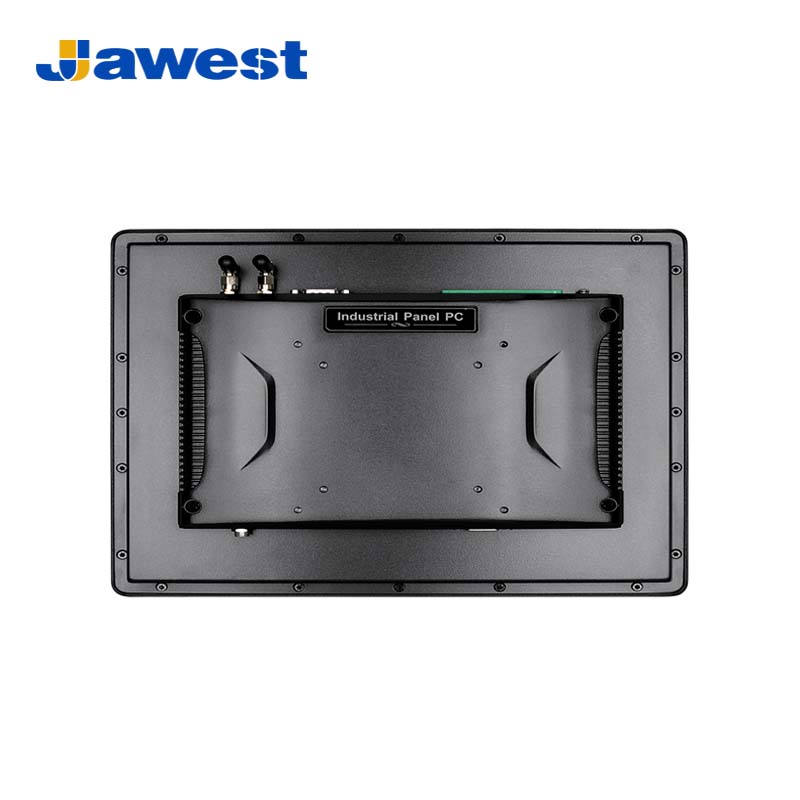

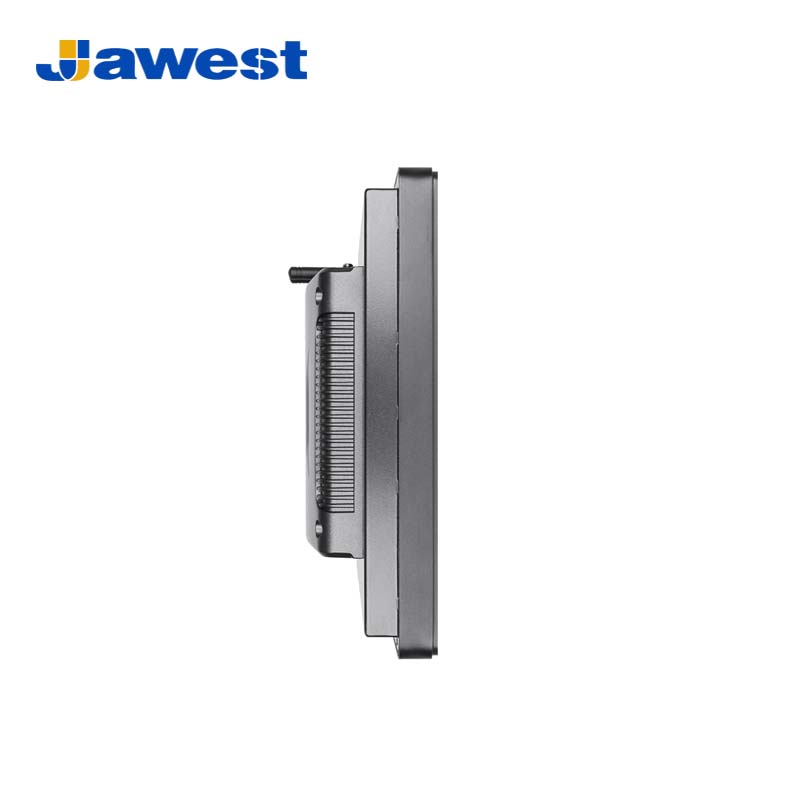

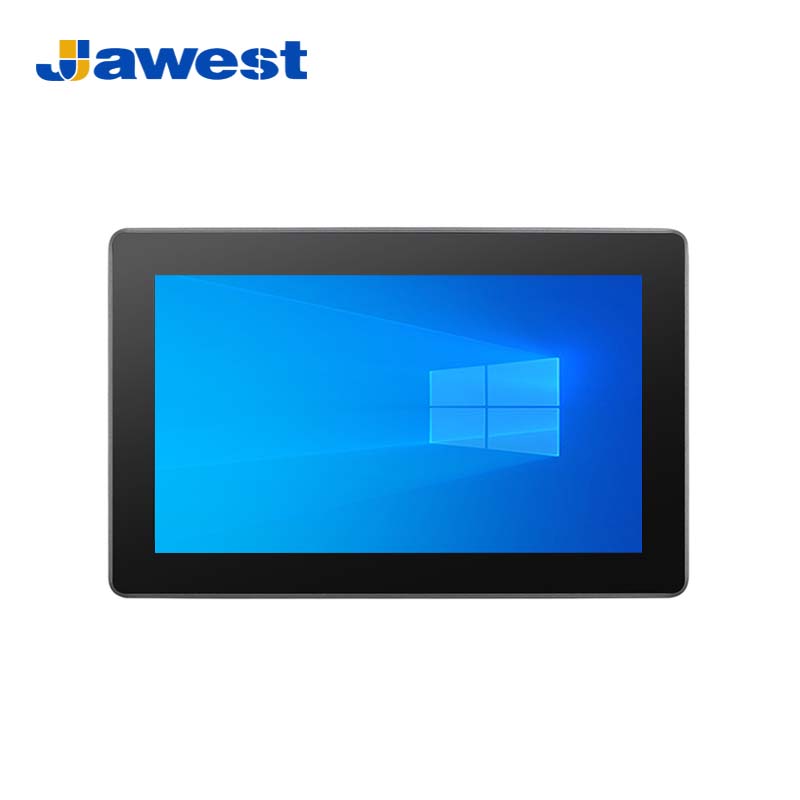

11.6 inch Panel Mount Installation Industrial PC Built-in mSATA SSD Pre-installed Win10 Win11

11.6 inch Panel Mount Installation Industrial PC Built-in mSATA SSD Pre-installed Win10 Win11

● Model: JWS116-W19

● Display size: 11.6 inch

● Configuration Options: 4/8/16/32GB for RAM, 64/128/256/512GB SSD, 1T/2T HDD options.

● Multiple Processors Options: Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U options.

● With a built-in mSATA SSD, this industrial Panel PC delivers fast and reliable storage capabilities. The mSATA SSD enhances data access speeds, ensuring efficient performance in data-intensive industrial applications.

Appearance of the color

Black

Silver

Description
Parameter
Case

11.6-inch Panel Mount Installation Industrial PC Built-in mSATA SSD Pre-installed Win10 or Win11

Model: JWS116-W19

Overview

Introducing the 11.6-inch Panel Mount Installation Industrial PC, a compact and efficient computing solution designed for seamless integration into industrial environments. This industrial panel PC features built-in mSATA SSD storage and comes pre-installed with Windows 10 or Windows 11 operating systems, offering a versatile platform for a variety of industrial applications.

The 11.6-inch display provides a clear and concise visual interface, making it ideal for applications where space efficiency is crucial. The panel mount installation ensures secure integration into control cabinets, machinery enclosures, or custom industrial setups, minimizing footprint while maximizing functionality.

Designed for durability, the industrial panel PC is built to withstand the rigors of industrial use. Its rugged construction ensures resistance to environmental factors such as dust, moisture, and vibrations, making it suitable for deployment in manufacturing floors, control rooms, and other challenging settings.


Motherboard Model Selection		CL-J1900B	CX-J4125-A	CX-J6412	CX-12U01
Hardware Configuration	CPU	Intel Celeron J1900 Quad-Core 2.0GHz	Intel Celeron J4125 Quad-Core 2.0GHz	Intel Celeron J6412 Quad-Core 2.0GHz	i3-1215U	i5-1235U	i7-1255U
	Inner Memory	4/8GB options	4/8GB options	8/16GB options	DDR4 32GB
	Storage	16/32/64/128/256/512GB SSD options	32/64/128/256/512GB SSD, 1T/2T HDD options	32/64/128/256/512GB SSD, 1T/2T HDD options	64/128GB (256GB/512GB SSD, 1T/2T HDD options)
	GPU	Intel HD Graphics	Intel UHD Graphics 600	Intel UHD Graphics 16 EUs	Intel Iris Xe Graphics 64	Intel Iris Xe Graphics 80	Intel Iris Xe Graphics 96
	Operating System	Win 7 / Win 10	Win 10 / Win 11	Win 10 / Win 11	Win 10 / Win 11
		Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04			/
		Centos7.4/7.8/7.9; Redhat7.4; Debian11.6	Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6		/
	3G/4G/5G Module	Support (Optional)
	WIFI	Dual-band 2.4/5GHz	Dual-band 2.4/5GHz	Dual-band 2.4/5GHz	Dual-band 2.4/5GHz
	Bluetooth	BT4.0	BT4.0	BT5.2	BT4.0
	GPS	Optional	Optional	Optional	Optional
	MIC	Optional	Optional	Optional	Optional
	RTC	Support	Support	Support	Support
	Timing Turn On/Off	Support	Support	Support	Support
	Wake On LAN	Support	Support	Support	Support
	Plug-n-Play	Support	Support	Support	Support

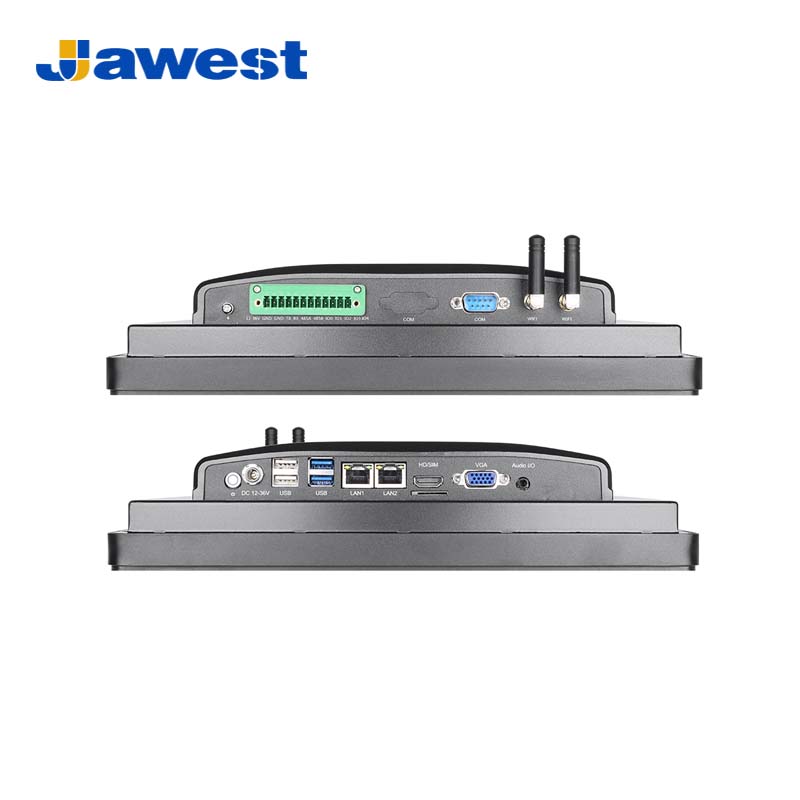

I/O Ports	USB	USB2.02, USB3.01
	COM Serial Ports	RS232(DB9)1, COM Reserved1(Optional RS232/422/485), 12P Phoenix Terminal (DC1+RS2321+RS4851+GPIO5)
	WIFI connector	WIFI antenna *2
	Power	1*DC, support 12V ~36V wide voltage power input
	HDMI	1*HDMI, supports HDMI data output, 1080P
	VGA	Standard DB15 interface
	RJ45 Ethernet	1*Realtek 8111F Gigabit interface, support wake-on-LAN
	Speaker Jack	Standard 3.5mm
	SIM Slot	Standard SIM slot supports various customization
	Audio	Audio I/O
	I/O expansion	Available

Screen Parameters	Color	16.7M
	Pixel Pitch	0.264mm
	Screen Panel	Industrial control screen
	Contrast	1000:1
	Brightness	250~300cd/m2 (support high brightness)
	Viewing angle	85°/85°/85°/85° (L/R/U/D)
	Backlight type	LED backlight screen, service life ≥ 50000H
	Gray-scale response time	5ms
	Touch Screen	Capacitive touchscreen, resistive touchscreen, and Non-touch options
	Installation types	Panel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

Power Adapter	Power Input	DC in 12V ~ 36V
	Adapter	24V / 2.5A; (24V / 4A for i3/i5/i7 CPUs)

Product Reliability	Working Temp	-10°C ~ 60°C
	Storage Temp	-20°C ~ 70°C
	Ambient humidity	20% - 95% (relative humidity non-condensing)
