Application:
13.3 inch Embedded Panel PC Based on Intel Elkhart Lake For IIoT13.3 inch Embedded Panel PC Based on Intel Elkhart Lake For IIoT13.3 inch Embedded Panel PC Based on Intel Elkhart Lake For IIoT13.3 inch Embedded Panel PC Based on Intel Elkhart Lake For IIoT

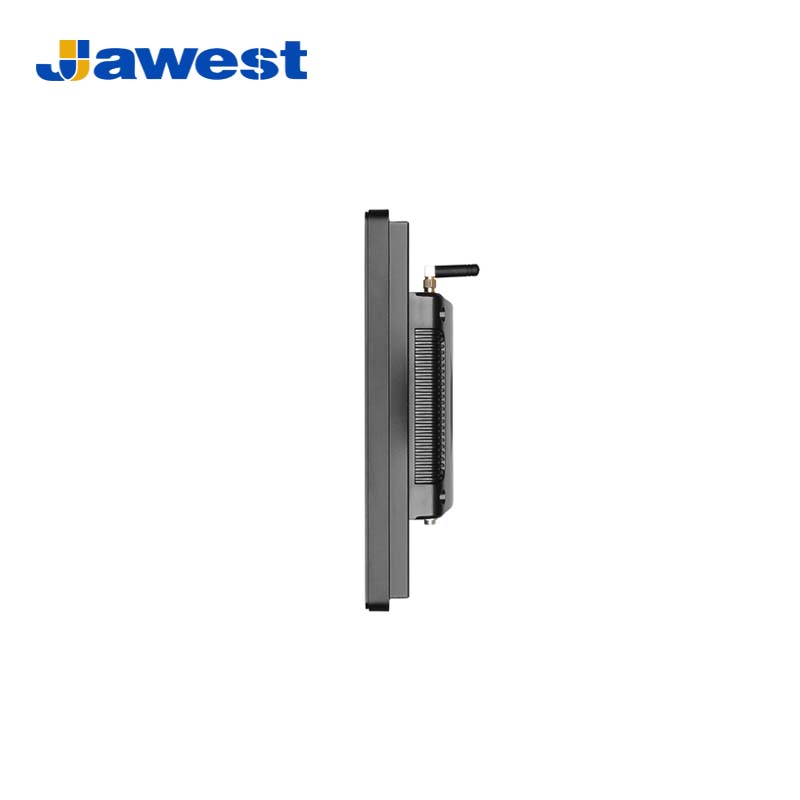

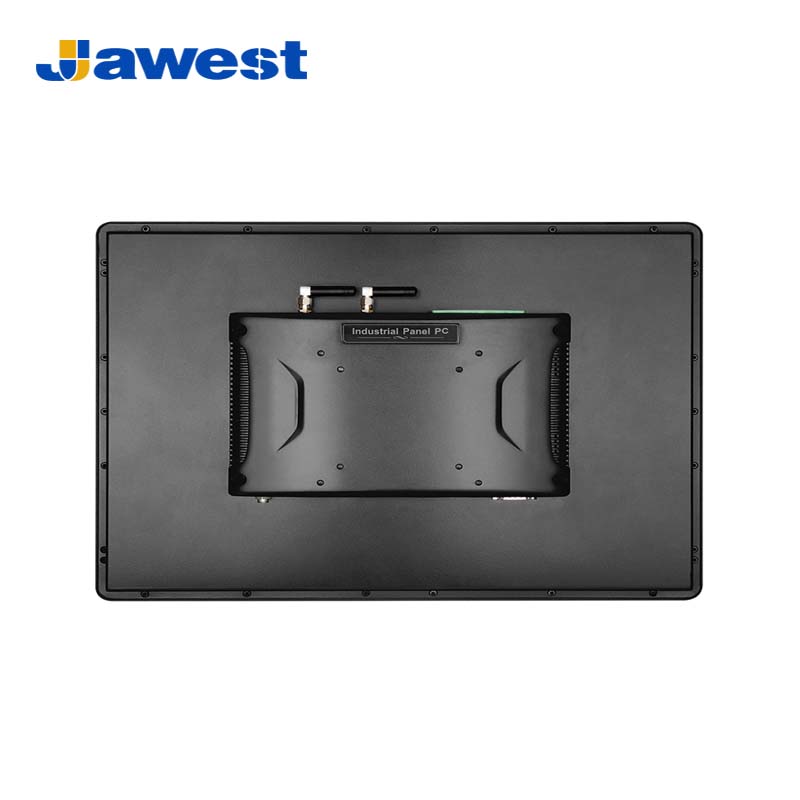

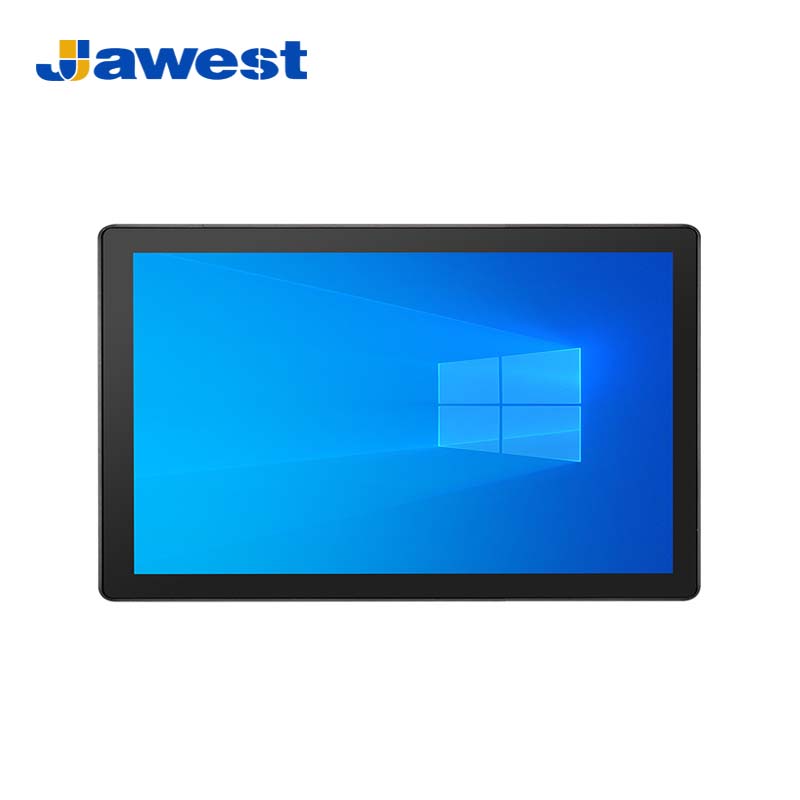

13.3 inch Embedded Panel PC Based on Intel Elkhart Lake For IIoT


● Model: JWS133-W19

● Display size: 13.3 inch

● Configuration Options: 4/8/16/32GB for RAM, 64/128/256/512GB SSD, 1T/2T HDD options.

● Multiple Processors Options: Intel Celeron J1900/J4125/J6412, Intel® Core™ i3-1215U/i5-1235U/i7-1255U options.

● Seamlessly integrates Intel's Elkhart Lake architecture, offering a reliable and efficient platform for industrial automation, control systems, and data-centric IIoT environments.

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 13.3 inch Industrial embedded panel PC Based on Intel Elkhart Lake For IIoT


    Model: JWS133-W19



    Overview


    Introducing the 13.3-inch Industrial Embedded Panel PC based on Intel Elkhart Lake, a cutting-edge solution designed specifically for Industrial Internet of Things (IIoT) applications. This compact and powerful embedded panel PC seamlessly integrates Intel's Elkhart Lake architecture, offering a reliable and efficient platform for industrial automation, control systems, and data-centric IIoT environments.



    The 13.3-inch display provides a clear and concise visual interface, making it ideal for applications where space efficiency is crucial. The industrial embedded panel PC's compact form factor allows for versatile installation in various industrial settings, ranging from manufacturing floors to control rooms, contributing to streamlined and efficient operations.



    Powered by Intel Elkhart Lake, this embedded panel PC delivers advanced processing capabilities tailored for IIoT applications. The architecture's efficiency and performance enhancements ensure seamless handling of data-intensive tasks, real-time monitoring, and control functions. This makes it well-suited for applications that demand reliable and responsive computing in the context of industrial automation.



    Designed for durability, the industrial embedded panel PC is built to withstand the challenges of industrial environments. Its robust construction ensures resistance to environmental factors such as dust, moisture, and vibrations. This durability ensures reliable performance, contributing to the longevity and stability of the panel PC in IIoT applications.










  • Motherboard Model SelectionCL-J1900BCX-J4125-ACX-J6412CX-12U01
    Hardware ConfigurationCPUIntel Celeron J1900 Quad-Core 2.0GHzIntel Celeron J4125 Quad-Core 2.0GHzIntel Celeron J6412 Quad-Core 2.0GHzi3-1215Ui5-1235Ui7-1255U
    Inner Memory4/8GB options4/8GB options8/16GB optionsDDR4 32GB
    Storage16/32/64/128/256/512GB SSD options32/64/128/256/512GB SSD, 1T/2T HDD options32/64/128/256/512GB SSD, 1T/2T HDD options64/128GB (256GB/512GB SSD, 1T/2T HDD options)
    GPUIntel HD GraphicsIntel UHD Graphics 600Intel UHD Graphics 16 EUsIntel Iris Xe Graphics 64Intel Iris Xe Graphics 80Intel Iris Xe Graphics 96
    Operating SystemWin 7 / Win 10Win 10  / Win 11Win 10 / Win 11Win 10 / Win 11
    Ubuntu14.04.6/16.04.7/18.04.5/18.04.6/20.04.1/20.04.3/20.04.4/22.04/
    Centos7.4/7.8/7.9; Redhat7.4; Debian11.6Centos7.8/8.4/7.9; Redhat7.4; Debian10.0/11.6/
    3G/4G/5G ModuleSupport (Optional)
    WIFIDual-band 2.4/5GHzDual-band 2.4/5GHzDual-band 2.4/5GHzDual-band 2.4/5GHz
    BluetoothBT4.0BT4.0BT5.2BT4.0
    GPSOptionalOptionalOptionalOptional
    MICOptionalOptionalOptionalOptional
    RTCSupportSupportSupportSupport
    Timing Turn On/OffSupportSupportSupportSupport
    Wake On LANSupportSupportSupportSupport
    Plug-n-PlaySupportSupportSupportSupport

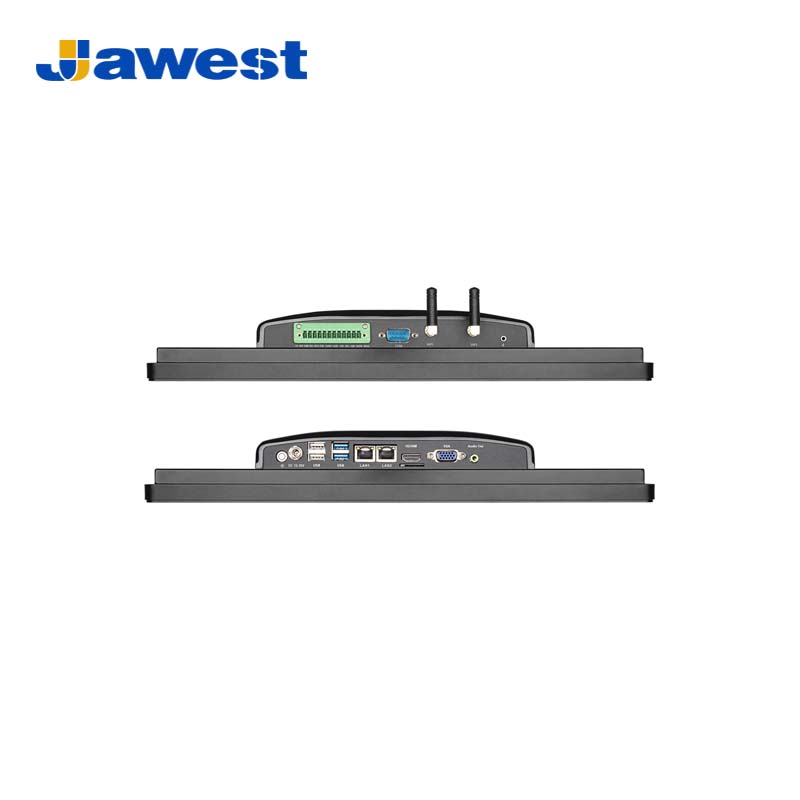

    I/O PortsUSB Ports USB2.0*2, USB3.0*1
    COM Serial Ports RS232(DB9)*1, COM Reserved*1(Optional RS232/422/485), 12P Phoenix Terminal (DC*1+RS232*1+RS485*1+GPIO*5)
    WIFI connector WIFI antenna *2
    Power 1*DC, support 12V ~36V wide voltage power input
    HDMI 1*HDMI, supports HDMI data output, 1080P
    VGA Standard DB15 interface
    RJ45 Ethernet 1*Realtek 8111F Gigabit interface, support wake-on-LAN
    Speaker Jack Standard 3.5mm
    SIM Slot Standard SIM slot supports various customization
    Audio Audio I/O
    I/O expansion Available

    Screen ParametersColor16.7M
    Pixel Pitch0.264mm
    Screen PanelIndustrial control screen
    Contrast1000:1
    Brightness220~300cd/m2 (support high brightness)
    Viewing angle85°/85°/85°/85° (L/R/U/D)
    Backlight typeLED backlight screen, service life ≥ 50000H
    Gray-scale response time5ms
    Touch ScreenCapacitive touchscreen, resistive touchscreen, and Non-touch options
    Installation typesPanel-mount, Embedded, desktop, wall-mounted, VESA75/100mm, open frame, etc.

    Power AdapterPower Input DC in 12V ~ 36V
    Adapter24V / 2.5A; (24V / 4A for i3/i5/i7 CPUs)

    Product ReliabilityWorking Temp -10°C ~ 60°C
    Storage Temp -20°C ~ 70°C
    Ambient humidity 20% - 95% (relative humidity non-condensing)
