As a Customized Industrial Grade Monitor Factory, share with you.
With the continuous development and innovation of science and technology, and
people's living standards are getting higher and higher, industrial displays
have also brought a lot of convenience to people's work, and their applications
in the market are also very hot. So what are the three levels of the industrial
display interface?
1. It is the overview interface. This level should include the information
displayed by different system parts in the system and how to make these systems parts work together.
2. It is the process interface. This level contains detailed information about the specified process part and shows which device object belongs to the process part. This level also shows the objects corresponding to the alarm.
3. It is a detailed interface. This level provides information about various
equipment objects, such as controllers, control valves, control motors, etc.,
and displays messages, status, and process values.

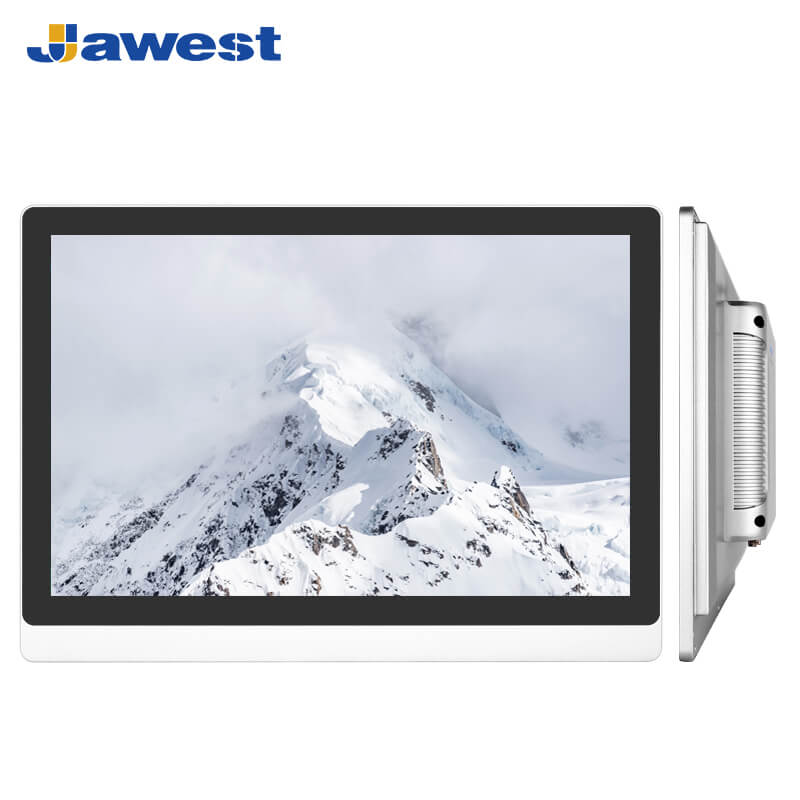

Industrial Touch Screen Monitor
According to the principle of consistency, ensure that all objects on the screen, such as windows, buttons, and lists, have the same style. The size, bump the effect, label font and font size of buttons at all levels are consistent, and
the color of the button is consistent with the background color of the
interface.
The concept of a selection interface depends on multiple interfaces. The interface can be designed as a loop. If you run a large number of interfaces,
you must design a reasonable structure system to open the interface. Choose a
simple and permanent structure so that the operator can quickly understand how to open the interface.
The amount of information that users can process at a time is limited, so the accumulation of a large amount of information on the screen will affect the friendliness of the interface. In order to provide sufficient information while
ensuring the conciseness of the interface, a hierarchical and hierarchical
arrangement of controls is adopted in the design. Classification refers to the division of controls into multiple groups by function, and each group is refined into multiple levels according to its logical relationship. Using the first-level button to control the pop-up and hiding of the second-level button ensures the simplicity of the interface. Layering is to expand buttons of different levels in different areas longitudinally, with obvious dividing lines between areas. While using a button to pop up lower-level buttons, it can hide other buttons at the same level to make the logical relationship clearer.
Our company also has Customized Industrial Grade Monitor on sale, welcome to contact us.
