Application:

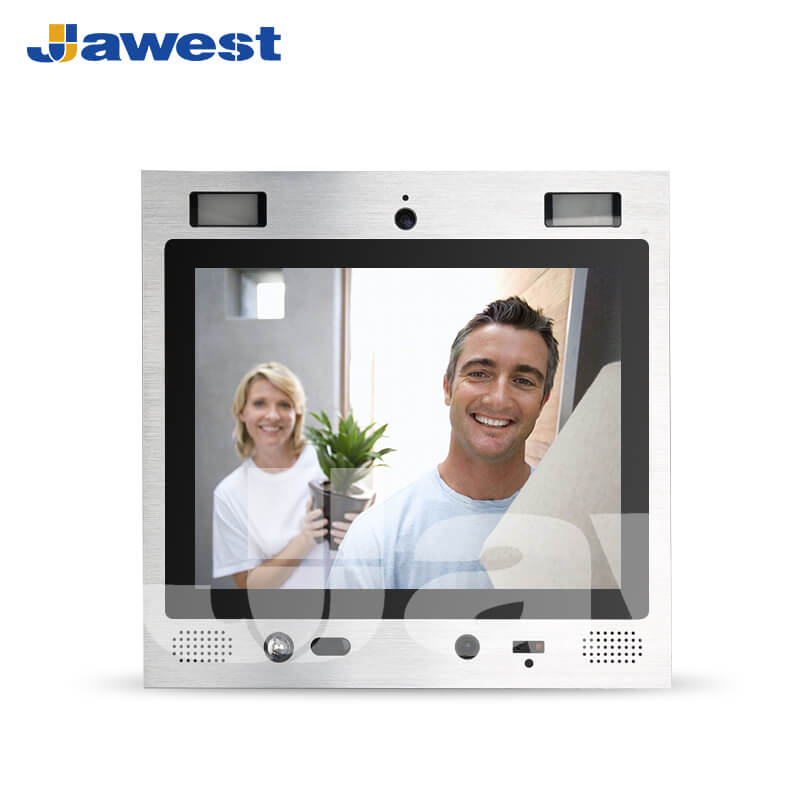

Intelligent Visual Interphone For Smart Home

Intelligent Visual Interphone For Smart Home


[Customized Product]

● Built-in three cameras to achieve a variety of recognition functions.

● 300W HD Camera, support analysis of face groups.

● Ultra-wide viewing angle 170° camera to monitor targets in a wide range.

● Infrared induction module control switching between work and advertising mode.

● Directional pickup noise-cancellation microphone to reduce voice echo and murmur.


Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • As one of Jawest popular customized products, this intelligent visual interphone support display size is 7" ~ 21.5", or other sizes for massive quantity orders. They are widely used in intelligent community, smart home and smart buildings.


    Product Features:

    Intelligent Visual Interphone:

    1. Wide-angle cameras and double light supplements are used to realize wide-range all-weather ingestion of user status and night light supplement recognition function, and advanced communication technology and control technology are adopted.

    2. ID/IC card technology and system integration, frame the development of digital intercom system for visual calls, and provide users with a safe, comfortable, convenient and efficient experience.



    Independent R&D, suitable for various complex environments

    Independent research and development of the whole machine, the use of rear cover fastener type fixed, key start-up design, anti-theft, anti-misoperation, high security, applicable to a variety of complex public places.



    Accurate Recognition of High Definition Camera

    Built-in three different function cameras, including ultra wide angle 170°, 300W cameras, to achieve simultaneous analysis of a variety of face recognition functions, equipped with directional pickup noise reduction microphone, reduce calls echo and murmur, to ensure the quality and experience of users' voice intercom.



    Self-developed Industrial-grade Motherboard

    Industrial-grade motherboard design, J1900 chipset on-board, stable performance, low power consumption, support expansion of multi-functional modules, support 7/24 long time without interruption, and ensure visual smoothness at the same time.



    Providing Software Support and Functional Expansion

    It supports open software interface for software secondary development, expands functional modules of face recognition, card reader, fingerprint instrument and so on.




  • Hardware ConfigurationCPUDefault: Intel celeron J1900 quad-core 2.0G
    Hard diskMSATA default 32G SSD (up to 512G)
    MemoryDDR3L 1333/1600 Default 2G (maximum 8G)
    ChipsetIntel Bay trail SOC
    OSWIN7 WIN8 WIN10 Linux
    Graphics cardIntel HD Graphics
    3G moduleSupport for Mobile, Unicom and Telecom (Options)
    4G moduleSupport for Mobile, Unicom and Telecom (Options)
    wifiDual band 2.4/5G
    BluetoothOptional
    GPSOptional
    MICOptional
    RTC Real-time ClockOptional
    Wake-on-LANOptional
    Power on bootOptional
    Speaker8Ω 2W left and right vocal tract
    Interface ParametersUSB Interface8"~10.4": USB2.0*2; other sizes: USB2.0*3 + USB3.0*1
    DC Port 1*DC 2.5
    HDMISupport HDMI data output, maximum support 1080P
    VGAStandard DB15 Interface
    RJ45 EthernetRraltec8111F Gigabit (dual network optional)
    HeadsetOutput 3.5mm Standard Interface
    SIM Card InterfaceStandard interface supports various forms
    Serial Interface8"~10.4": COM*1; other sizes: COM*2, default RS232 protocol, 422/485 protocol optional
    Support I/O ExtensionSupport customization for other multiple industry interfaces
    Display ParametersColor16.7M
    Point Spacing0.264 mm
    Screen PanelTFT Panel, industrial control A level screen
    Contrast1000:1
    Display Brightness400 cd/m2 (high brightness over 400 cd/m2 can be customized)
    Visual Angle160° /160°, 178° full view can be customized
    Backlight Model LED Backlight Screen Life (>50000h)
    Grey Scale Response Time5ms
    Touch OptionalResistive/Capacitive/Infrared touch screen
    InstallationEmbedded, Desktop, Wall-mounted, Cantilever
    Product PerformanceWorking Temperature-10℃~50℃
    Storage Temperature-40℃~85℃
    Relative Humidity95% non-condensable
    MTBF7*24H
    Power AdapterPower Consumption≤48W
    Power InputAC 100-240V 50/60HZ; CCC and CE approved
    Power OutputDC12V/5A
    Packaging SpecificationWarranty PolicyOne-year warranty of the whole machine
    Fuselage ColorClassic black/Silver
    Packaging ListIndustrial all in one PC, power wire, adapter, installation accessories, operation manual, warranty card.
