● 7" to 21.5" LCD displays.
● IP65 dustproof and waterproof, EN60601-1 certified.
● 10 point PCAP touch, supports glove operation.

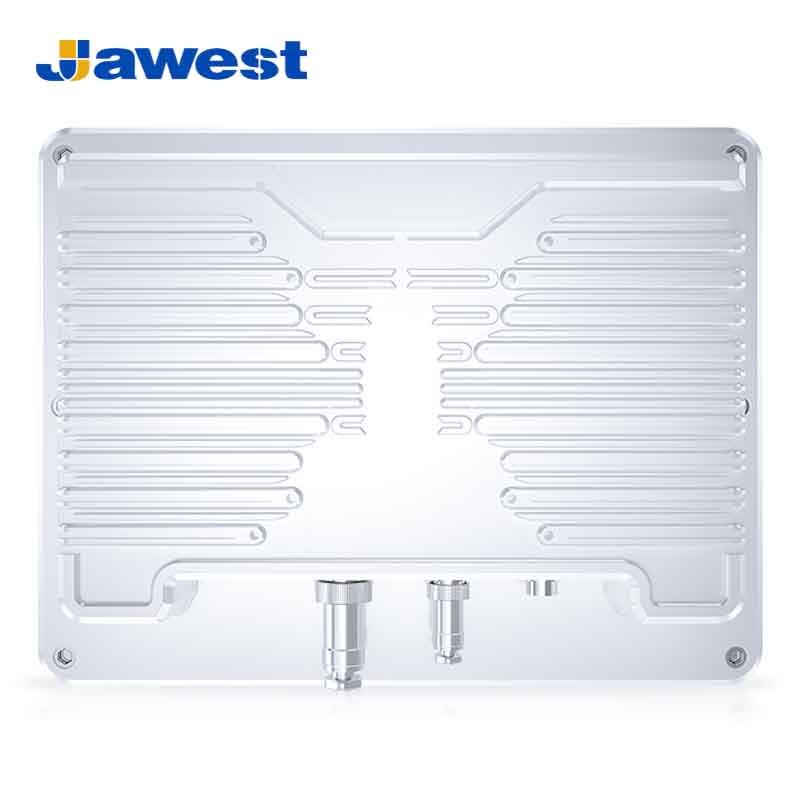

● Military-grade Aluminum alloy casing, suitable for various medical complex environments.
● OSD on the front/back panel.

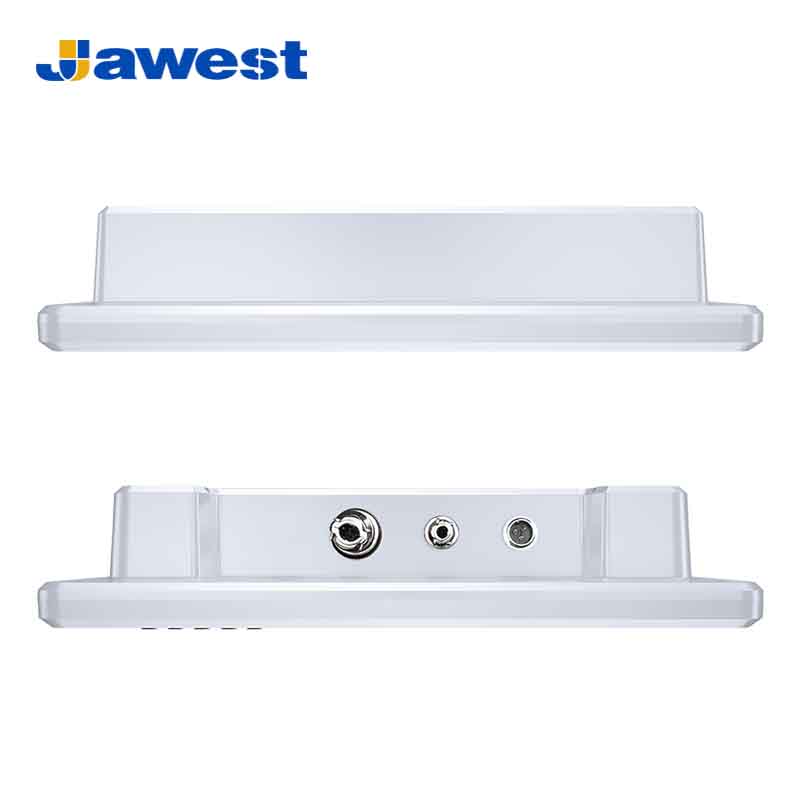

● Waterproof connector: DC*1/Touch*1/VGA*1.
● 24/7 long-time operation.
As the increasing demands of the medical & healthcare & old-caring industry, it is important that hospitals must have reliable medical equipment that aids staff responsibilities. The medical carts & trolleys provide many conveniences for staff in terms of collecting, recording, and transferring data, diagnostic, and updating patient information in real-time.
Jawest offers multi-size displays medical LCD displays for the medical carts, they are designed fully to consider high safety, longevity, and multi-functionality. The medical LCD monitors have been engineered in compliance with Ergonomic, supports adjustable VESA mount for staff easy operation and better viewing angles. suitable for mobile work trolley, mobile computing cart, mobile nursing cart, mobile healthcare workstation, E-Nursing Cart, nurse trolley in wards, clinics, nursing stations, nursing centers, clinics, nursing homes, etc.
Products Model Fast Guide
Product Models | LCD Display | Resolution | Aspect Ratio | Touch Screen Type | Get A Quote Now! |
JWS070-MT01 | 7" | 1024*600 | 16:9 | Capacitive | Inquiry |
JWS080-MT01 | 8" | 1024*768 | 4:3 | Capacitive | Inquiry |
JWS101-MT01 | 10.1" | 1280*800 | 16:10 | Capacitive | Inquiry |
JWS104-MT01 | 10.4" | 1024*768 | 4:3 | Capacitive | Inquiry |
JWS116-MT01 | 11.6" | 1920*1080 | 16:9 | Capacitive | Inquiry |
JWS120-MT01 | 12" | 1024*768 | 4:3 | Capacitive | Inquiry |
JWS150-MT01 | 15" | 1024*768 | 4:3 | Capacitive | Inquiry |
JWS156-MT01 | 15.6" | 1920*1080 | 16:9 | Capacitive | Inquiry |
JWS170-MT01 | 17" | 1280*1024 | 5:4 | Capacitive | Inquiry |
JWS190-MT01 | 19" | 1280*1024 | 5:4 | Capacitive | Inquiry |
JWS215-MT01 | 21.5" | 1920*1080 | 16:9 | Capacitive | Inquiry |
Medical Touchscreen Monitor | ||||||||
Size | 7" to 21.5" | |||||||
Panel Type | Industrial LCD panel A+ grade, TFT panel | |||||||
Contrast | 1000:1 | |||||||
Luminance | 300 to 1500 nit option | |||||||
Response time | 5ms | |||||||
Display colors | 16.7M | |||||||
View angle | 85°/85°/85°/85° (L/R/U/D) | |||||||
Support multi-language | English/Portuguese/France,. etc. | |||||||
Touch Screen | Capacitive / Resistive | |||||||
I/O Ports | ||||||||
DC Port | 1*DC2.0 | |||||||
HDMI | Support HDMI data output, maximum support 1080P | |||||||
USB-OTG | Optional | |||||||
USB-HOST | 1*USB 2.0 | |||||||
RJ45 | 1000M adaptive Ethernet | |||||||
SD / TF / SIM | Support | |||||||
Headphone Jack | 3.5mm | |||||||
Serial interface | 7"-10.4": COM*1, other sizes: COM*2, default with RS232 protocol, 422/485 protocol optional. | |||||||
Power Input | AC 100-240V, 50/60Hz | |||||||
Power Output | DC 12V/5A | |||||||
Environment | ||||||||
Operation Temperature | -10°C~60°C | |||||||
Storage Temperature | -30°C-60°C | |||||||
Operation Humidity | 10%-80% | |||||||
Storage Humidity | 10%-90% | |||||||
Material | Aluminum alloy enclosure | |||||||
IP Rating | IP65 standard seamless front | |||||||
Color | Black, silver | |||||||
Installation Way | VESA, Embedded, Wall Mount, Desktop optional | |||||||
Certification | CE,FCC,ROHS,ISO | |||||||
Packaging | EPE+Carton |
