Home >> Products >> PC Based MES Terminals >> MES Panel PC with NFC and QR Code Scanning
Application:
Integrated MES Panel PC with NFC and QR Code Scanner for Real-Time Monitoring and Easy Data ManagementIntegrated MES Panel PC with NFC and QR Code Scanner for Real-Time Monitoring and Easy Data ManagementIntegrated MES Panel PC with NFC and QR Code Scanner for Real-Time Monitoring and Easy Data ManagementIntegrated MES Panel PC with NFC and QR Code Scanner for Real-Time Monitoring and Easy Data Management

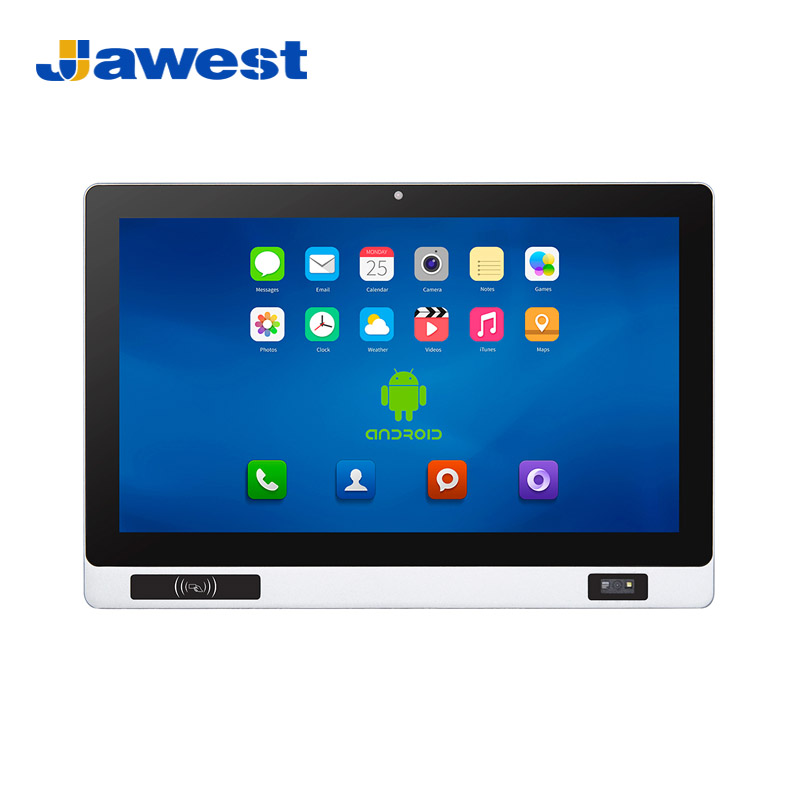

Integrated MES Panel PC with NFC and QR Code Scanner for Real-Time Monitoring and Easy Data Management


Industrial MES (Manufacturing Execution System) Panel PCs are advanced computer systems designed specifically for use in industrial settings. These devices are often used in factories and other manufacturing environments to manage and control industrial processes.


Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • Jawest Industrial MES Panel PCs with NFC and QR code scanner modules come equipped with powerful computing capabilities, high-resolution displays, and a range of connectivity options that make them ideal for use in industrial settings. These devices are designed to operate reliably in harsh industrial environments and are built to withstand extreme temperatures, vibrations, and other harsh conditions.



    Product Features



    1. Display size options: 10.1'', 11.6'', 15.6'', 21.5''.

    2. Supports HDMI output, and clearly presents production data.

    3. Supports ten-point capacitive touch, sensitive response, simple operation, and realizes zero-distance human-computer interaction.

    4. Powerful Computing: Industrial MES Panel PCs are equipped with high-performance processors that can handle complex manufacturing processes with ease.

    5. Robust Design: These devices are designed to withstand harsh industrial environments and are built to be resistant to dust, water, and other environmental factors.

    6. High-Resolution Displays: Industrial MES Panel PCs come with high-resolution displays that make it easy to monitor and control industrial processes in real time.

    7. Touchscreen Interface: Many Industrial MES Panel PCs come equipped with touchscreen interfaces that allow for easy operation and control.

    8. Wide Range of Connectivity Options: These devices come with a range of connectivity options, including Ethernet, USB, and serial ports, making it easy to connect to a variety of industrial equipment.

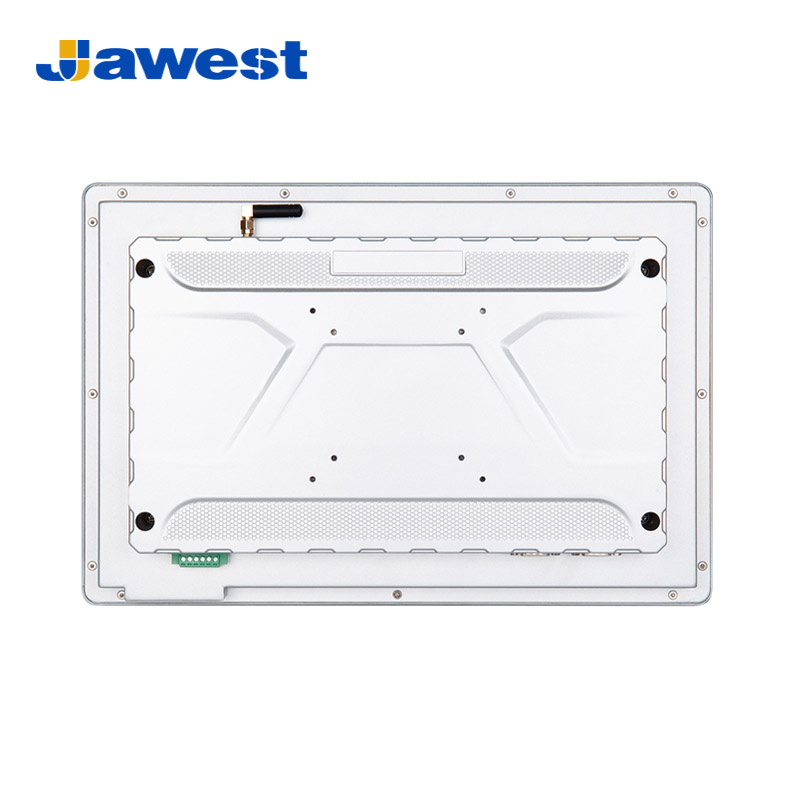

    9. Flexible Mounting Options: Industrial MES Panel PCs can be mounted in a variety of ways, including on a wall, on a stand, or on a machine.

    10. Customizable: These devices can be customized to meet the specific needs of a particular industrial application, making them highly flexible and adaptable.


    Overall, Industrial MES Panel PCs are powerful and reliable devices that are ideal for use in industrial settings. With their robust design, high-resolution displays, and a range of connectivity options, these devices can help manufacturers improve efficiency, reduce downtime, and streamline their operations.





  • Screen Parameters
    Screen Display10.1" / 11.6" / 15.6" / 21.5"
    Resolution
    1280*800 / 1366*768 / 1920*1080 / 1920*1080
    Aspect Ratio16:10 / 16:9 / 16:9 / 16:9
    Panel TypeIndustrial control A level screen with TFT
    Viewing Angle80/80/80/80 (L/R/U/D)
    Display Color16.7M
    Brightness  300cd/m2, high nits option

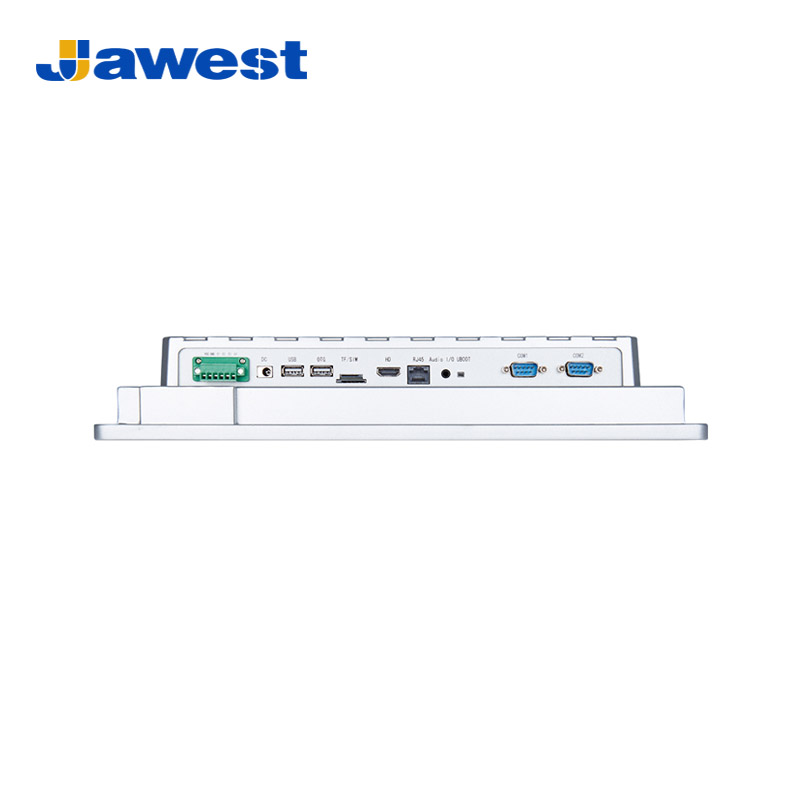

    Interface ParametersDC port1*DC 2.1/industrial terminal
    HDMISupport HDMI data output, maximum support 1080P
    USB-OTG1*USB2.0
    USB-HOST1*USB2.0
    RJ45 Ethernet1*10M/100M/1000M adaptive Ethernet
    SD/TFTF data storage, maximum support 64G
    Earphone Jack 3.5mm standard interface
    SIM cardStandard SIM card interface supports various formats (depending on 3G/4G module)
    RS2322*RS232
    RS485/RS422Optional
    GPIO4*GPIO
    LED warning lightOptional
    Printer/Scan Code Gun/MicrophoneOptional (externally connected)
    Wide voltage input12V~36V Optional

    Hardware ConfigurationCPU
    RK3288, quad-core, 1.8GHz
    Storage/hard diskEMMC 16GB (8/32/64GB optional)
    RAMDDR3L 2GB (4GB optional)
    ChipsetIntel Bay trail SOC chipset
    Operating systemAndroid 7.1 (Android 10.0/12.0 / Linux 4.4 / Ubuntu18.04 / Debian10.0 optional)
    Graphics cardMali-T764GPU dual-core, ultra-high performance GPU, supporting HDMI 4K output
    WiFiDual-frequency 2.4/5G
    Bluetooth / GPS / MICOptional
    RTC (real-time clock) / Support
    NFC13.56MHZ
    Camera100W HD
    LED indicatorRed/green/blue (combination)

    Touch ScreenTouch screen typeProjected capacitive touchscreen
    Resolution500DPI
    Input methodHandwriting or capacitive pen
    Surface hardness7H
    CalibrationSupport

    Product ReliabilityOperating temperature-10 °C to +60 °C
    Storage temperature-20 °C to +70 °C
    Humidity95%, Non-Condensing

    Power SupplyPower consumption (maximum)15W
    Power consumption (standby)≤2W
    Power inputAC 100-240V  50/60Hz
    Power outputDC12V / 4A
