10.1 inch Industrial Monitor Panel Mount LCD Displays

10.1 inch Industrial Monitor Panel Mount LCD Displays

Model: JWS101-M Series

● Panel mount 10.1″ widescreen LCD monitor

● 16:10 Aspect Ratio; 1280 x 800 resolution

● Resistive, capacitive, Non-touch optional

● Industrial-grade motherboard

● IP65 rated dustproof & waterproof for the front panel

● 300 nits of brightness, supports adjustable controls

● 3 Year Warranty

Appearance of the color

Black

Silver

Description
Parameter
Case

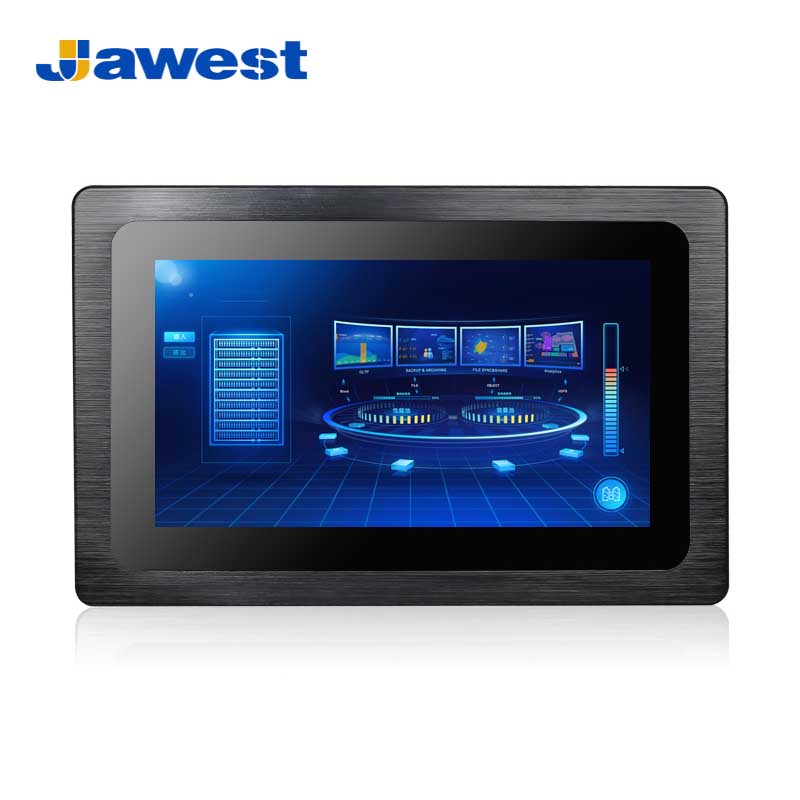

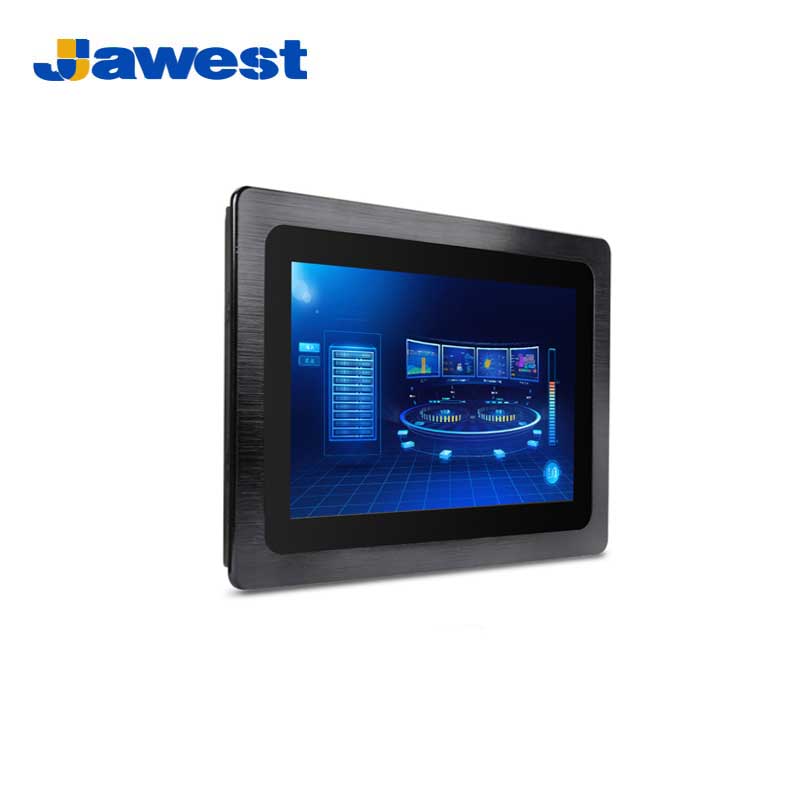

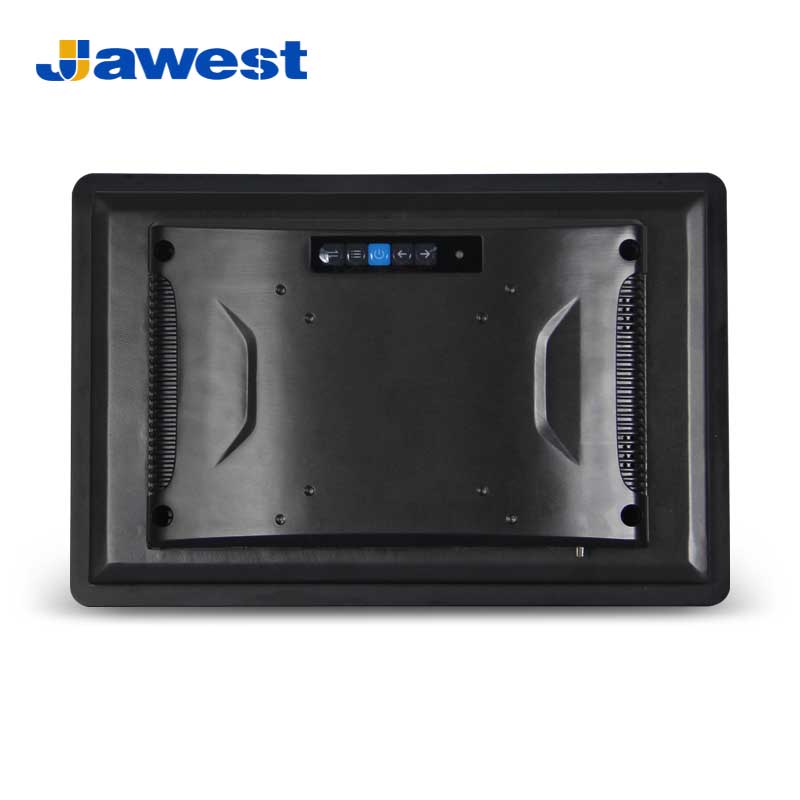

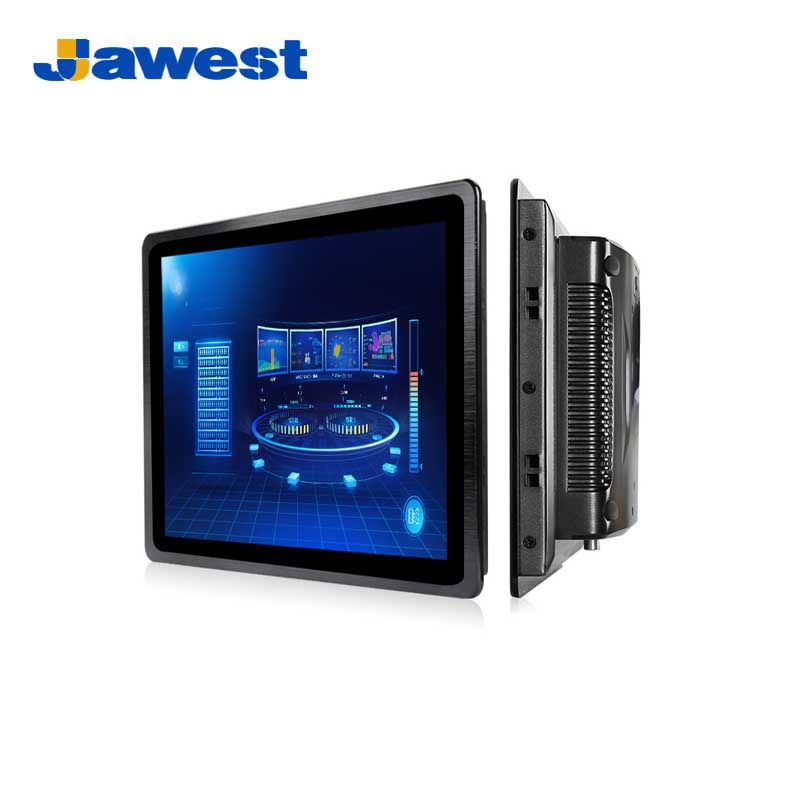

Jawest 10.1" Industrial Panel Mount Monitor

JWS101-M Series

Jawest 10.1″ panel mount industrial LCD monitor features a widescreen 16:10, and 1280*800 resolution display that easily integrates into the electrical enclosure, cabinet, transportation operation console, industrial & medical equipment, kiosks, or other industrial applications.

This panel mount monitor supports a wide temperature operating range from -10°C to +60°C. Equipped with anti-falling VGA, DVI-D, Displayport, and HDMI connectors, and made from robust Aluminum alloy housing, suitable for 24/7 long-time operation in harsh environments.

Products Models Fast Guide

Products Models	LCD Display	Resolution	Aspect Ratio	Touch Screen	Remark	Get A Quote Now!
JWS101-M2	10.1"	1280*800	16:10	Capacitive / Resistive / Non-touch	Jawest 2nd-GEN Series / 3mm front bezel	Inquiry
JWS101-M5	10.1"	1280*800	16:10	Capacitive / Resistive / Non-touch	Jawest 5th-GEN Series / 7mm front bezel	Inquiry

Jawest 10.1 inch Industrial Monitor Datasheet
Size	10.1 inch
Display
Panel Type	Industrial LCD panel A+ grade
Aspect Ratio	16:10
Resolution	1280*800
Contrast	1000:1
Luminance	350nit-1500nit
Response time	5ms
Active Area (mm)	478*269.24
Display colors	16.7M(8-bit)
View angle	89/89/89/89
Touch Screen	5-wire resistive touch screen/10-point capacitive touch screen/ Non-touch
Interface	HDMI+DVI+VGA+USB/DVI+VGA+USB optional
Power Input	AC 110-240V, 50/60Hz
Power Consumption	≤30W
Power Standby	≤1.5W
Plug&Play	DDC1/2B
Working Life	More than 50,000 hours
Operation Temperature	-10°C-60°C (Support wide temperature customization)
Storage Temperature	-10°C-60°C
Operation Humidity	10%--80%
Storage Humidity	10%-90%
Metal Shell	Aluminum alloy enclosure
Color	Silver, black color optional
Bezel thickness	10mm bezel
IP rating	IP65 dust-proof and water-proof for front Panel
Installation	VESA, Embedded, Wall Mount, Desktop, open frame optional
Certificates	CE, CCC, ISO, FCC, ROHS
Package	EPE+Carton (wooden crate for mass order)
