Model: JWS156-M Series
● Panel mount 15.6″ widescreen LCD monitor
● 16:9 Aspect Ratio; 1920 x 1080 resolution
● Resistive, capacitive, Non-touch optional
● Industrial-grade motherboard

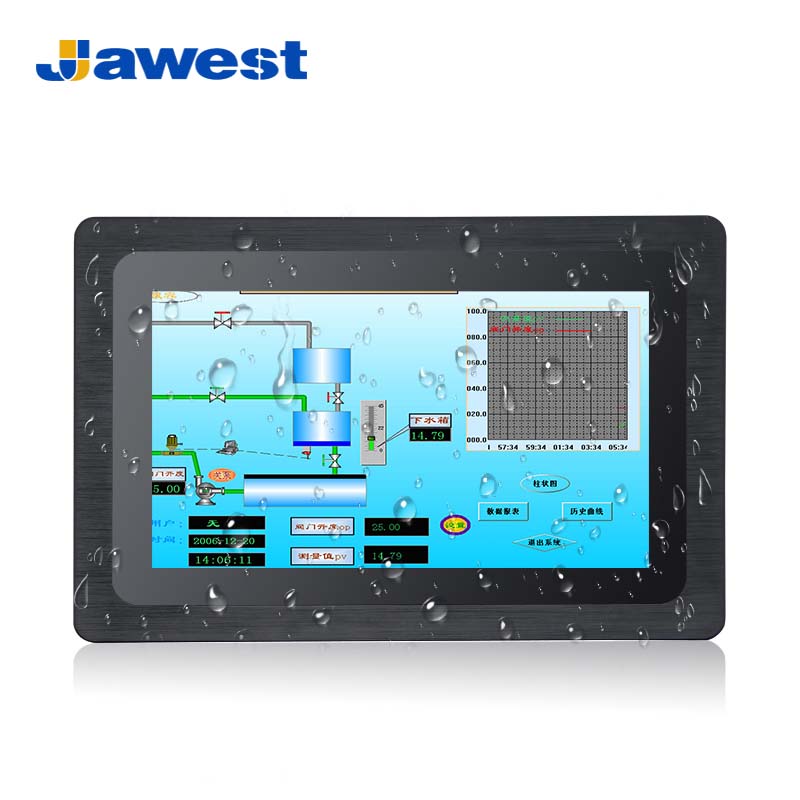

● IP65 rated dustproof & waterproof for the front panel
● 300 nits of brightness, supports adjustable controls
● 3 Year Warranty

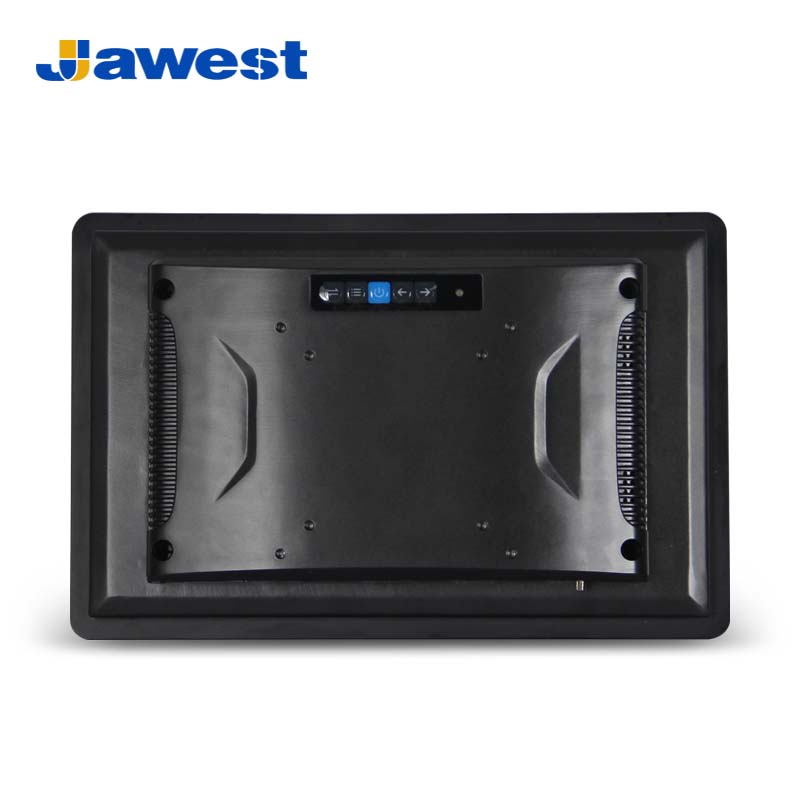

Jawest 15.6" Industrial Panel Mount Monitor
● JWS156-M Series
Jawest 15.6-inch panel mount monitor features high-quality industrial-grade components to ensure long-lasting operation in harsh environments. Supports high brightness displays and auto-dimming functions, IP65-rating dust/waterproof for outdoor use, such as various kiosk solutions
Jawest industrial panel mount displays are equipped with multiple inputs/outputs including HDMI, DVI, VGA, RJ45, and S-video. These monitors are compatible with Windows, Android, and Linux operating systems, offering high scalability.
Products Models Fast Guide
Product Model | LCD Display | Resolution | Aspect Ratio | Touchscreen | Get A Quote Now! |
JWS101-M2 | 10.1" | 1280*800 | 16:10 | Capacitive/Resistive/Non-touch Options | Inquiry |
JWS104-M2 | 10.4" | 1024*768 | 4:3 | Capacitive/Resistive/Non-touch Options | Inquiry |
JWS116-M2 | 11.6" | 1920*1080 | 16:9 | Capacitive/Resistive/Non-touch Options | Inquiry |
JWS120-M2 | 12" | 1024*768 | 4:3 | Capacitive/Resistive/Non-touch Options | Inquiry |
JWS121-M2 | 12.1" | 1280*800 | 16:10 | Capacitive/Resistive/Non-touch Options | Inquiry |
JWS133-M2 | 13.3" | 1920*1080 | 16:9 | Capacitive/Resistive/Non-touch Options | Inquiry |
JWS150-M2 | 15" | 1024*768 | 4:3 | Capacitive/Resistive/Non-touch Options | Inquiry |
JWS156-M2 | 15.6" | 1920*1080 | 16:9 | Capacitive/Resistive/Non-touch Options | Inquiry |
JWS170-M2 | 17" | 1280*1024 | 5:4 | Capacitive/Resistive/Non-touch Options | Inquiry |
JWS173-M2 | 17.3" | 1920*1080 | 16:9 | Capacitive/Resistive/Non-touch Options | Inquiry |
JWS185-M2 | 18.5" | 1920*1080 | 16:9 | Capacitive/Resistive/Non-touch Options | Inquiry |
JWS190-M2 | 19" | 1280*1024 | 5:4 | Capacitive/Resistive/Non-touch Options | Inquiry |
JWS191-M2 | 19.1" | 1440*900 | 16:10 | Capacitive/Resistive/Non-touch Options | Inquiry |
JWS215-M2 | 21.5" | 1920*1080 | 16:9 | Capacitive/Resistive/Non-touch Options | Inquiry |
JWS238-M2 | 23.8" | 1920*1080 | 16:9 | Capacitive/Resistive/Non-touch Options | Inquiry |
Jawest 15.6 inch Industrial Monitor Datasheet | |||||||
Size | 15.6 inch | ||||||
Display | |||||||
Panel Type | Industrial LCD panel A+ grade | ||||||
Aspect Ratio | 16:9 | ||||||
Resolution | 1920*1080 | ||||||
Contrast | 800:1 | ||||||
Luminance | 300 Nits (High brightness screen for optional) | ||||||
Response time | 5ms | ||||||
Display colors | 16.7M(8-bit) | ||||||
View angle | 85/85/85/85 | ||||||
Touch Screen | 4/5-wire resistive touch screen/10-point capacitive touch screen/ Non-touch for optional | ||||||
Interface | 1*DC2.1, 1*HDMI, 1*RJ45(For touch cable), 1*VGA, 1*DVI, 1*Audio I/O | ||||||
Power Input | DC 12~36V | ||||||
Power Consumption | ≤30W | ||||||
Standby Power | 18W | ||||||
Working Life | More than 50,000 hours | ||||||
Operation Temperature | -10°C~60°C (Support wide temperature customization) | ||||||
Storage Temperature | -20°C~70°C | ||||||
Operation Humidity | 10%~80% | ||||||
Storage Humidity | 10%~90% | ||||||
Metal Shell | Aluminum alloy enclosure | ||||||
Color | Silver, black color optional | ||||||
Bezel thickness | 3mm bezel | ||||||
IP rating | IP65 dust-proof and water-proof for the front panel | ||||||
Installation | VESA, Embedded, Wall Mount, Desktop for optional | ||||||
Certificates | CE, CCC, ISO, FCC, ROHS | ||||||
Package | EPE+Carton (wooden crate for mass order) |
