Application:
19.1 inch LCD Flat Panel Monitor For Info Kiosks Rugged Industrial Environments19.1 inch LCD Flat Panel Monitor For Info Kiosks Rugged Industrial Environments

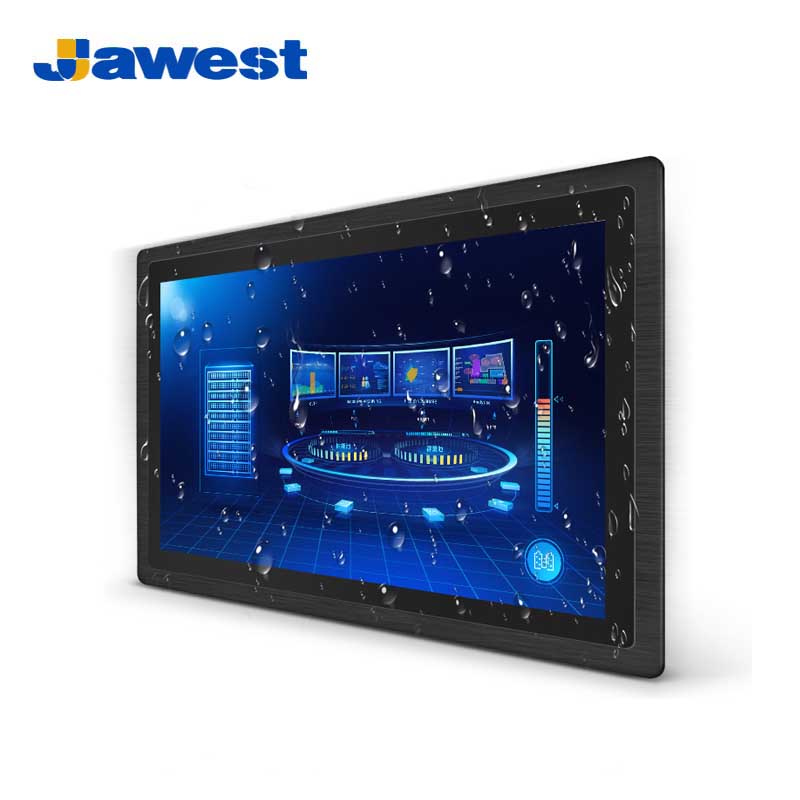

19.1 inch LCD Flat Panel Monitor For Info Kiosks Rugged Industrial Environments


Model: JWS191-M2 Series

● Panel mount 19.1″ widescreen LCD monitor

● 16:10 Aspect Ratio; 1440 x 900 resolution

● Resistive, capacitive, Non-touch optional

● Industrial-grade motherboard

● IP65 rated dustproof & waterproof for the front panel

● 300 nits of brightness, supports adjustable controls

● 3 Year Warranty


Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • Jawest 19.1" Industrial Panel Mount Monitor


    ● JWS191-M2 Series


    This 19.1-inch panel mount LCD monitor has a 16:10 widescreen Aspect ratio. The monitor delivers a high image quality with excellent 178° viewing angles. The 19.1-inch monitor has a robust Aluminum alloy casing, presenting superior heat-dispassion and shockproof performance in heavy-duty conditions.


    This LCD display is designed for 24/7 continuous operation and professional use. It is manufactured with sturdy industrial-grade components, guaranteeing long-time operation in the most challenging and complex environments.




    Products Models Fast Guide


    Products ModelsLCD DisplayResolutionAspect RatioTouch ScreenRemark
    JWS191-M219.1"1440*90016:10Capacitive / Resistive / Non-touchJawest 2nd-GEN Series / 3mm front bezel
    JWS191-M519.1"1440*90016:10Capacitive / Resistive / Non-touchJawest 5th-GEN Series / 7mm front bezel





  • Jawest 19.1 inch Industrial Monitor Datasheet
    Size19.1 inch
    Display
    Panel TypeIndustrial LCD panel A+ grade
    Aspect Ratio16:10
    Resolution1440*900
    Contrast1000:1
    Luminance250 Nits ~ 300 Nits (High brightness screen options)
    Response Time5ms
    Display Colors16.7M(8-bit)
    View Angle80/80/80/80(L/R/U/D)
    Touch Screen4/5-wire resistive touch screen/10-point capacitive touch screen/ Non-touch Options
    I/O Ports
    1*DC2.1, 1*HDMI, 1*RJ45(For touch cable), 1*VGA, 1*DVI, 1*Audio I/O
    Power InputDC 12~36V
    Standby Power18W
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C~60°C (Support wide temperature customization)
    Storage Temperature-20°C~70°C
    Operation Humidity10%~80%
    Storage Humidity10%~90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    Bezel thickness3mm bezel
    IP ratingIP65 dust-proof and water-proof for front Panel

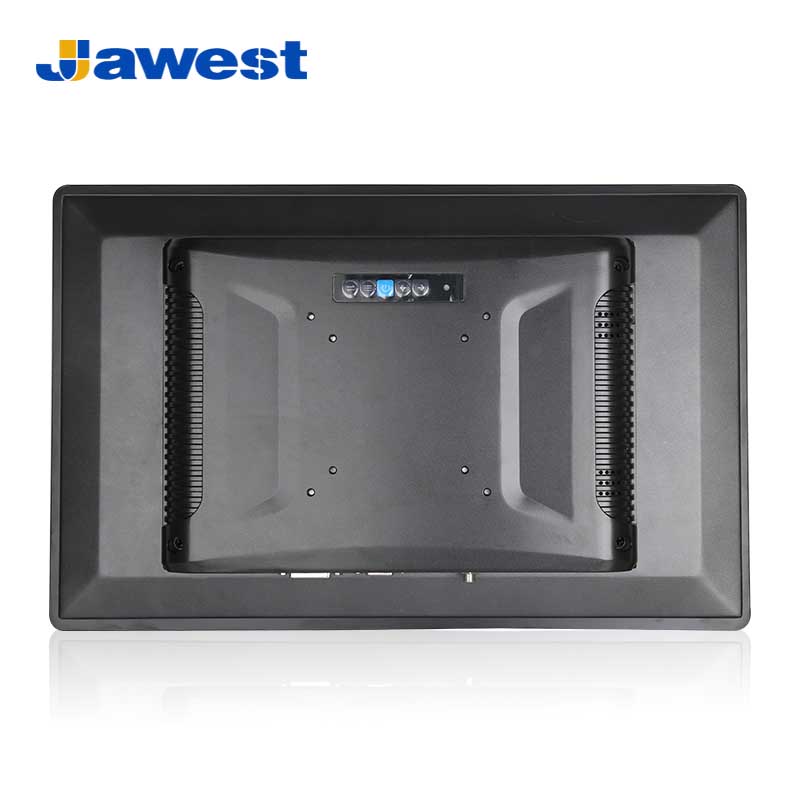

    InstallationVESA, Embedded, Wall Mount, Desktop, open frame optional
    CertificatesCE, CCC, ISO, FCC, ROHS
    PackageEPE+Carton  (wooden crate for mass order)
