Application:
21.5 inch Industrial Panel Mount Monitor 1920x1080 For SCADA21.5 inch Industrial Panel Mount Monitor 1920x1080 For SCADA21.5 inch Industrial Panel Mount Monitor 1920x1080 For SCADA

21.5 inch Industrial Panel Mount Monitor 1920x1080 For SCADA


Model: JWS215-M2 Series

● Panel mount 21.5″ widescreen LCD monitor

● 16:9 Aspect Ratio; 1920 x 1080 resolution

● Resistive, capacitive, Non-touch optional

● Industrial-grade motherboard

● IP65 rated dustproof & waterproof for the front panel

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • Jawest 21.5" Industrial Panel Mount Monitor


    JWS215-M2 Series


    This 21.5-inch panel mount LCD monitor has a 16:9 widescreen Aspect ratio and 1920x1080 resolution. With a 10-point capacitive touch screen and resistive anti-glare touch screen option, suitable for interactive applications and harsh environments. USB hub on the backside for easy connection to a mouse or keyboard.


    Besides the panel-mount installation, also supports embedded, rack, desktop, wall-hanging, and VESA according to your requirements.


    Every Jawest 21.5" industrial LCD display offers a robust Aluminum alloy housing, supports high brightness, up to 1500 nits, and with a contrast of 1000:1.




    Products Models Fast Guide


    Products ModelsLCD DisplayResolutionAspect RatioTouch ScreenRemark
    JWS215-M221.5"1920*108016:9Capacitive / Resistive / Non-touchJawest 2nd-GEN Series / 3mm front bezel
    JWS215-M521.5"1920*108016:9Capacitive / Resistive / Non-touchJawest 5th-GEN Series / 7mm front bezel




    21.5 inch Industrial Panel Mount Monitor J1900 Quad Core Processor 1920x1080 For SCADA

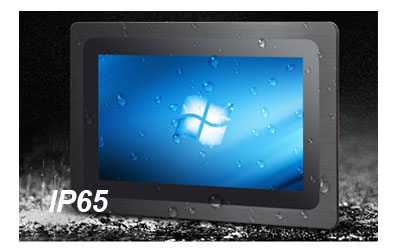

    Front IP65-rated Dustproof & Waterproof Protection


    The JWS215-M series is designed with an IP65-rating dustproof and waterproof protection that meets regulation standards in pharmaceutical, food, beverage, chemical processing manufacturing, and outdoor application.





    21.5 inch Industrial Panel Mount Monitor J1900 Quad Core Processor 1920x1080 For SCADA

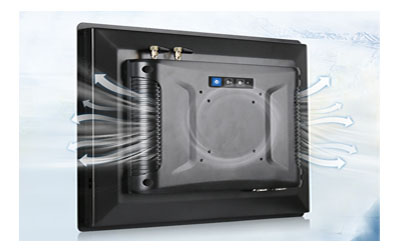

    Robust Aluminum Alloy Enclosure and Fanless Design For Heat-dissipation


    This industrial monitor is engineered with robust Aluminum alloy housing, and with a fanless design for heat-dissipation, presenting excellent continuous operation in harsh environments.





    21.5 inch Industrial Panel Mount Monitor J1900 Quad Core Processor 1920x1080 For SCADA

    High Contrast For Excellent Display


    Contrast is the ratio of the brightness of the brightest (white) to the darkest (black) at the same point on the screen. High contrast means relatively high brightness and gorgeous color.







  • Jawest 21.5 inch Industrial Monitor Datasheet
    Size21.5 inch
    Display
    Panel TypeIndustrial LCD panel A+ grade
    Aspect Ratio16:9
    Resolution1920*1080
    Contrast1000:1
    Luminance250 Nits~300 Nits (High brightness screen options)
    Response Time5ms
    Display Colors16.7M(8-bit)
    View Angle89/89/89/89(L/R/U/D)
    Touch Screen4/5-wire resistive touch screen/10-point capacitive touch screen/ Non-touch options
    I/O Ports1*DC2.1, 1*HDMI, 1*RJ45(For touch cable), 1*VGA, 1*DVI, 1*Audio I/O
    Power InputDC 12~36V
    Standby Power18W
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C~60°C (Support wide temperature customization)
    Storage Temperature-20°C~70°C
    Operation Humidity10%~80%
    Storage Humidity10%~90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    Bezel thickness3mm bezel
    IP ratingIP65 dust-proof and water-proof for front Panel
    InstallationVESA, Embedded, Wall Mount, Desktop, open frame optional
    CertificatesCE, CCC, ISO, FCC, ROHS
    PackageEPE+Carton  (wooden crate for mass order)
