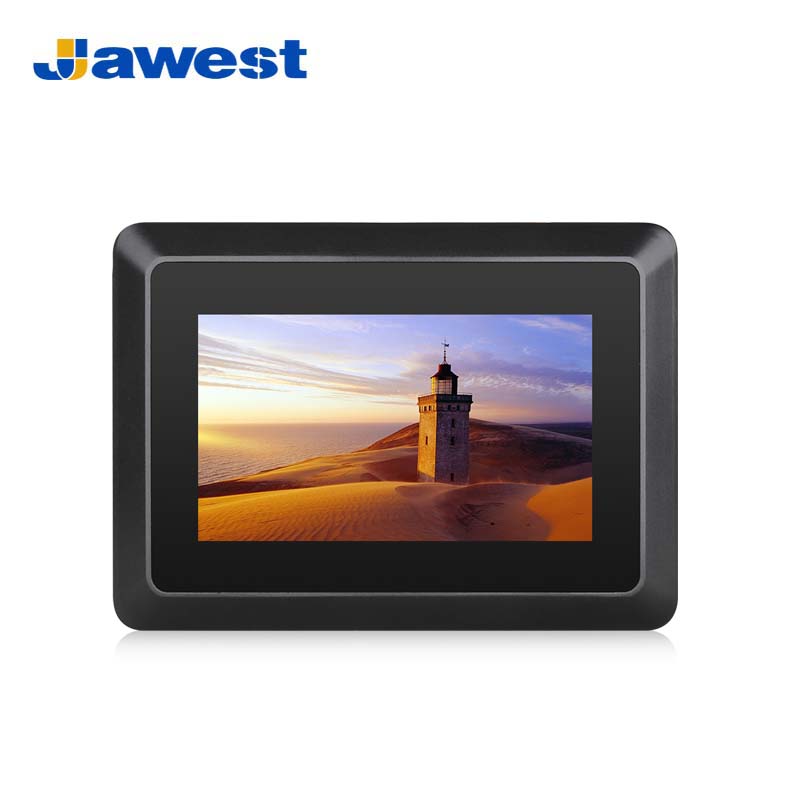

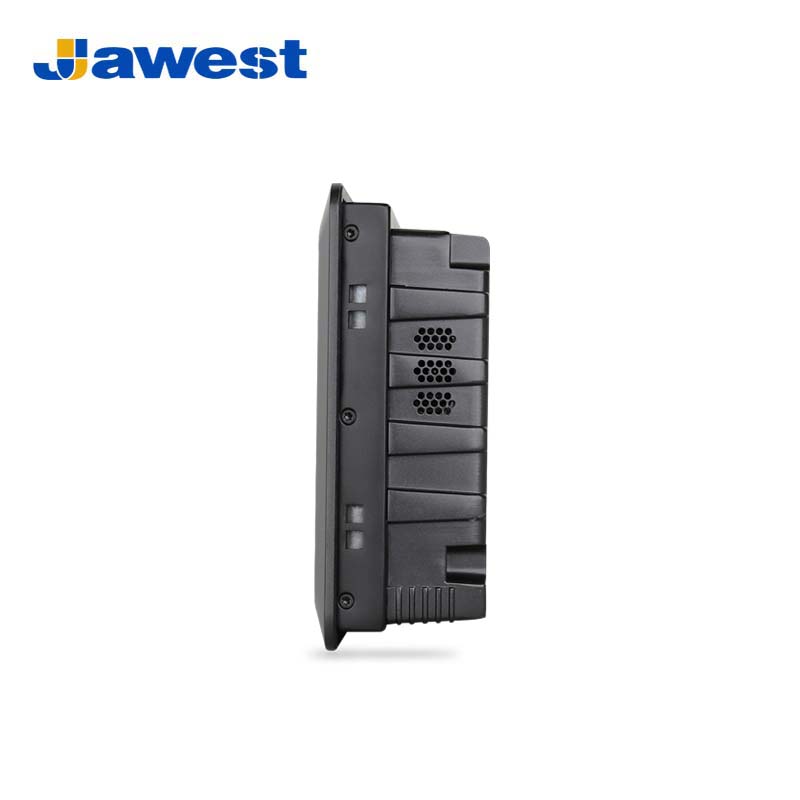

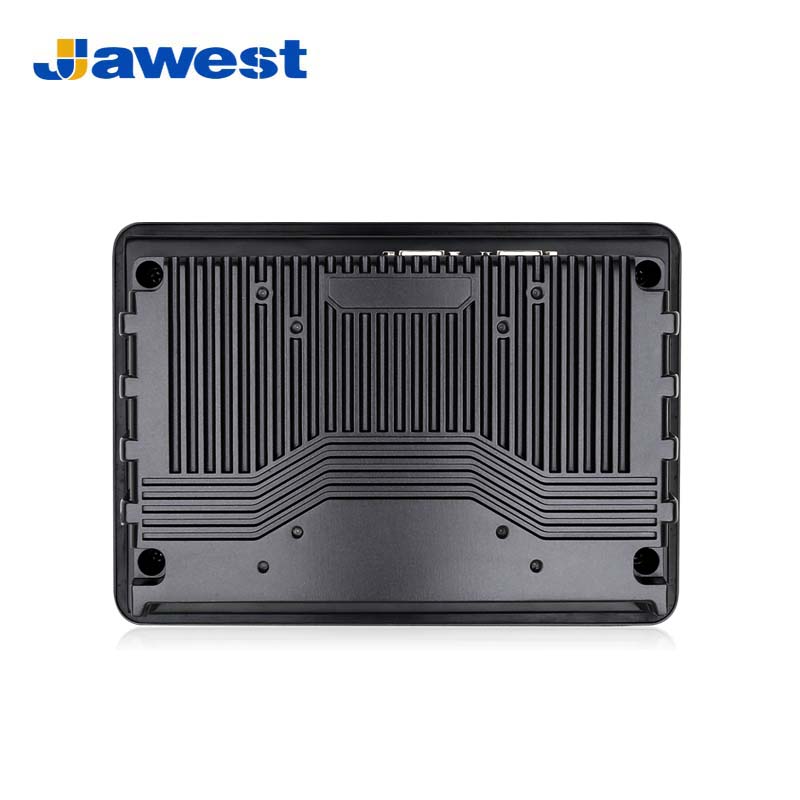

7 inch Industrial Panel Mount LCD Monitor


Model: JWS070-M-QD

● Panel mount 7″ widescreen LCD monitor

● 16:9 Aspect Ratio; 1024 x 600 resolution

● Resistive, capacitive, Non-touch optional

● Industrial-grade motherboard

● IP65-rated dustproof & waterproof for the front panel

● 300 nits of brightness, supports adjustable controls

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • Jawest 7" Industrial Panel Mount Monitor


    Model: JWS070-M-QD


    Jawest 7″ small size panel mount industrial LCD monitor features a widescreen 16:9, and 1024*600 resolution display that easily integrates into the electrical enclosure, cabinet, transportation operation console, industrial & medical equipment, kiosks, or other industrial applications.


    This panel mount monitor supports a wide temperature operating range from -10°C to +60°C. Equipped with anti-falling VGA, DVI-D, Displayport, and HDMI connectors, and made from robust Aluminum alloy housing, suitable for 24/7 long-time operation in harsh environments.





  • Jawest 7 inch Industrial Monitor Datasheet
    Size7 inch
    Display
    Panel TypeIndustrial LCD panel A+ grade
    Aspect Ratio16:9
    Resolution1024*600
    Contrast1000:1
    Luminance330 Nits (High brightness screen options)
    Response time5ms
    Display colors16.7M(8-bit)
    View angle75°/75°/70°/75°(L/R/U/D)
    Touch Screen5-wire resistive touch screen/10-point capacitive touch screen/ Non-touch
    I/O PortsDC12~36V, VGA, DVI, HDMI, RJ45(for touch cable), Audio I/O
    Power InputAC 110-240V, 50/60Hz
    Power Consumption≤30W
    Power Standby≤1.5W
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C~60°C (Support wide temperature customization)
    Storage Temperature-20°C~70°C
    Operation Humidity10%-80%
    Storage Humidity10%-90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    IP ratingIP65 dust-proof and water-proof for the front panel
    InstallationVESA, Embedded, Wall Mount, Desktop, open frame optional
    CertificatesCE, CCC, ISO, FCC, ROHS
    PackageEPE+Carton  (wooden crate for mass order)
