Application:
12 Inch Industrial Touch Display for Access Control Solution12 Inch Industrial Touch Display for Access Control Solution12 Inch Industrial Touch Display for Access Control Solution12 Inch Industrial Touch Display for Access Control Solution

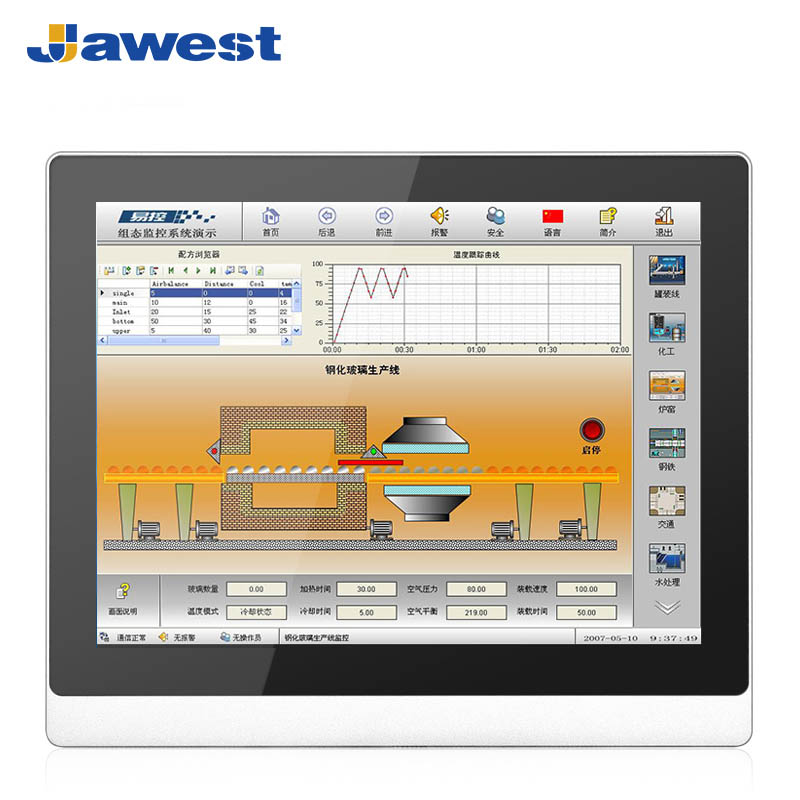

12 Inch Industrial Touch Display for Access Control Solution


● Display size: 12 inch

● High-quality industrial LCD panel

● Working temperature: -10~60°C

● Industrial-grade motherboard

● 10mm Bezel Aluminum Touch Monitor

● 24/7 long-time operation

● IP65-rated dust-proof and water-proof for front panel

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 12 Inch Industrial Display for Access Control Solution


    Model: JWS120-M42


    This Jawest 12-inch touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs, ODMs, and embedded system, integrators requiring a reliable product for their customer. Designed with reliable and stable performance, our touchscreen monitor delivers outstanding image clarity and light transmission with a stable, drift-free operation for accurate and fast touch responses.


    Jawest provides customization services for colors, sizes, brightness, and touchscreen technologies, providing the versatility needed for industrial automation, production control, and commercial display terminal devices, kiosk touchscreen applications from self-service and gaming to medical care, smart city, and intelligent education.


    Jawest Industrial Monitor Features


    ● 12-inch screen support bright active matrix TFT display

    ● Display definition is 1024x768, supports HD OEM, high contrast ratio, and offers excellent vivid image and color quality for users.

    ● Provide a universal Power adapter.

    ● Support Plug-and-Play compatibility.

    ● OSD control for picture quality adjustment on the back of the panel.

    ● Fanless heat-dissipation, aluminum alloy material casing, energy-efficient, low power consumption.

    ● Industrial-grade electronic components and motherboards, support long-time operation in harsh factory and industrial environments.

    ● Wide operational temperature range: -10°C to +60°C (support extended temperature ranges).

    ● Offer multi-installation methods, desktop, wall, embedded, and VESA arm mounting.

    ● CE, RoHS compliant.





    12 Inch Industrial Touch Display for Access Control Solution

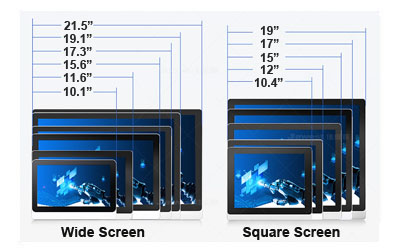

    Multi-Size LCD Displays


    We supply wide or square LCD displays, ranging from 7" to 23.8" for options.






    12 Inch Industrial Touch Display for Access Control Solution

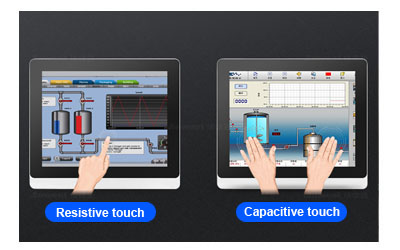

    Projective Capacitive or Resistive Touch Screen Monitors


    A touch screen is an assembly for both the input and output parts of a monitor. Jawest display is often an LCD display, supports multi-touch capacitive or single-point resistive touch screens, to provide input or control the information/data processing, also realizing simple functions, such as zooming to increase the text size, etc.




    12 Inch Industrial Touch Display for Access Control Solution

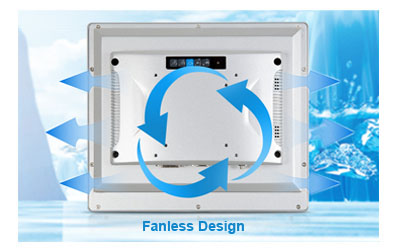

    Fanless Design, 24/7 Silent Operation, Longer Service Life


    As more and more industrial touch panel computers are built with the ability to communicate and process in fields of industrial automation, they have increased requirements in terms of reliability to manage high and complex automation workloads.

    In terms of the design of hardware, fanless design for industrial monitors helps to achieve 24/7 operation in wide thermal temperatures and other harsh industrial environments.




    Product Models Fast Guide


    Model NameScreen SizeResolution Aspect RatioTouch TechnologyGet A Quote Now!
    JWS070-M-QD7"1024*60016:9Capacitive / Resistive / Non-TouchscreenInquiry
    JWS080-M-QD8"1024*7684:3Capacitive / Resistive / Non-TouchscreenInquiry
    JWS101-M410.1"1280*80016:10Capacitive / Resistive / Non-TouchscreenInquiry
    JWS104-M410.4"1024*7684:3Capacitive / Resistive / Non-TouchscreenInquiry
    JWS116-M411.6"1920*108016:9Capacitive / Resistive / Non-TouchscreenInquiry
    JWS120-M412"1024*7684:3Capacitive / Resistive / Non-TouchscreenInquiry
    JWS150-M415"1024*7684:3Capacitive / Resistive / Non-TouchscreenInquiry
    JWS156-M415.6"1920*108016:9Capacitive / Resistive / Non-TouchscreenInquiry
    JWS170-M417"1280*10245:4Capacitive / Resistive / Non-TouchscreenInquiry
    JWS173-M417.3"1920*108016:9Capacitive / Resistive / Non-TouchscreenInquiry
    JWS190-M419"1280*10245:4Capacitive / Resistive / Non-TouchscreenInquiry
    JWS191-M419.1"1440*90016:10Capacitive / Resistive / Non-TouchscreenInquiry
    JWS215-M421.5"1920*108016:9Capacitive / Resistive / Non-TouchscreenInquiry
    JWS238-M423.8"1920*108016:9Capacitive / Resistive / Non-TouchscreenInquiry





  • 10mm bezel aluminum touch monitor datasheet
    Size12-inch
    Display
    Panel Type Industrial LCD panel A+ grade
    Aspect Ratio4:3
    Resolution1024*768
    Contrast1000:1
    Luminance250nit-1500nit
    Response time5ms
    Active Area (mm)478*269.24
    Display colors16.7M(8-bit)
    View angle85/85/85/85
    Touch Screen4/5-wire resistive touch screen (Capacitive touch screen and Non-touch optional)

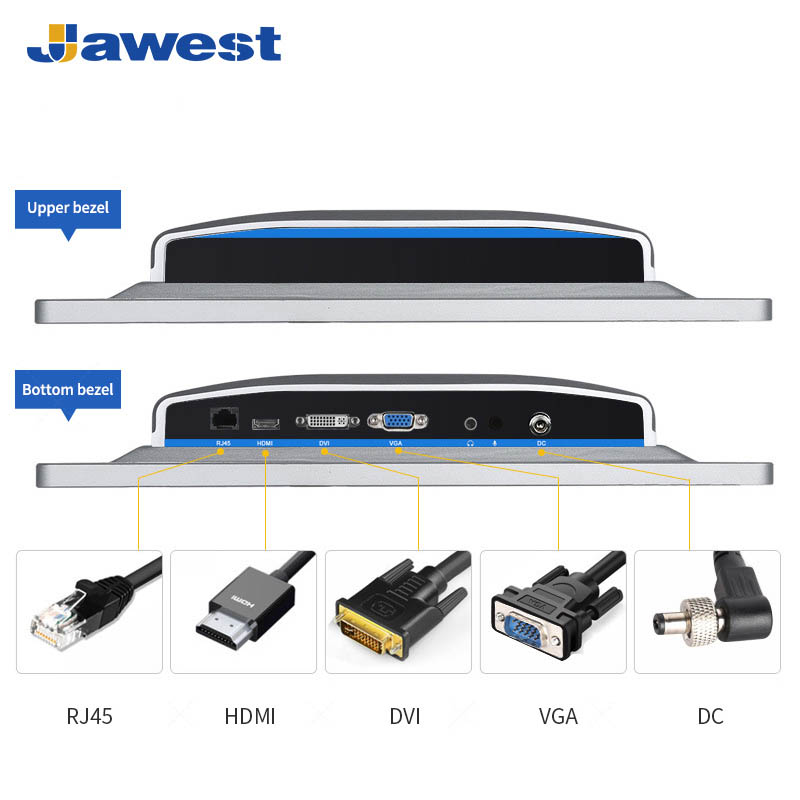

    InterfaceHDMI+DVI+VGA+USB/DVI+VGA+USB optional
    Power InputAC 110-240V, 50/60Hz
    Power Consumption≤30W
    Power Standby≤1.5W
    Plug&PlayDDC1/2B
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C~60°C (Support wide temperature customization)
    Storage Temperature-20°C~70°C
    Operation Humidity10%~80%
    Storage Humidity10%~90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    Bezel thickness10mm bezel
    IP ratingIP65 dust-proof and water-proof for Front Panel
    InstallationVESA, Embedded, Wall Mount, Desktop, open frame optional
    CertificatesCE, CCC, ISO9001, FCC, ROHS
    PackageEPE+Carton  (wooden crate for mass order)
