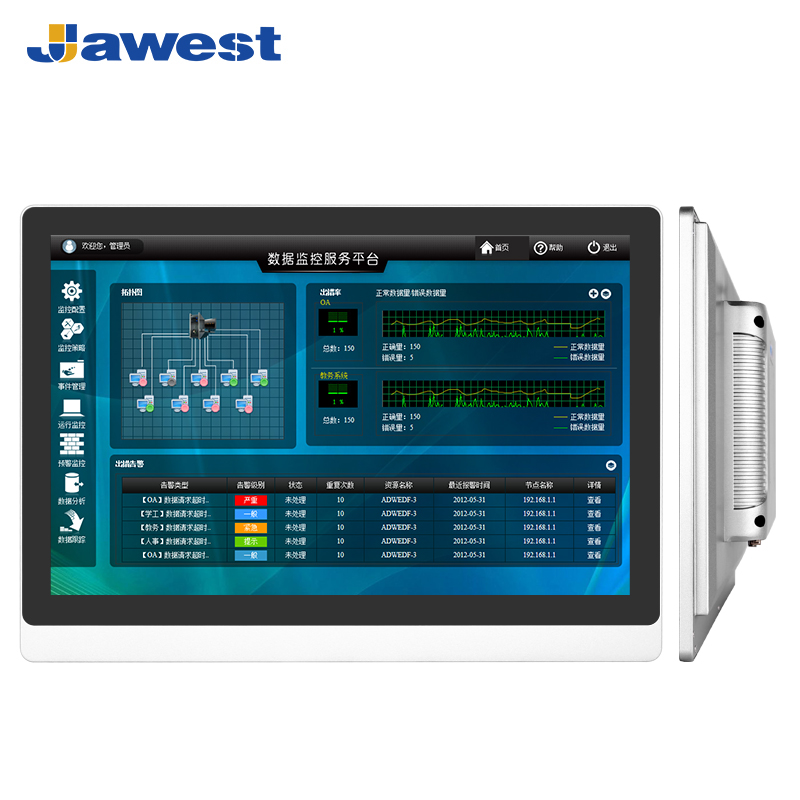

21.5" IP65 Waterproof Touch Monitor High Brightness Touchscreen Display


Model: JWS215-M42

● Display size: 21.5-inch.

● Resolution: 1920*1080; Aspect Ratio: 16:9.

 Luminance: 250 nits ~1500 nits optional.

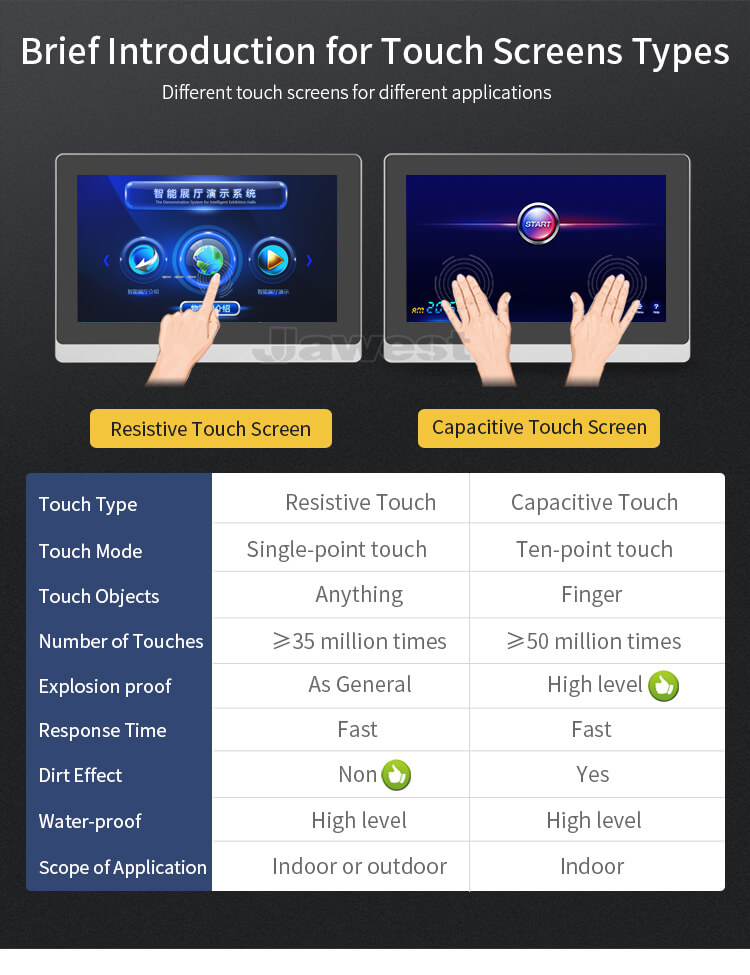

● Touch screen: Single-point resistive touch (capacitive or Non-touchscreen optional).

● High-quality industrial LCD panel.

● Working temperature: -10°C ~ +60°C.

● Industrial grade display chip.

● 10mm front bezel Aluminum enclosure touch monitor.

● 7 days*24 hours long-time operation.

● IP65 grade dust-proof and waterproof.

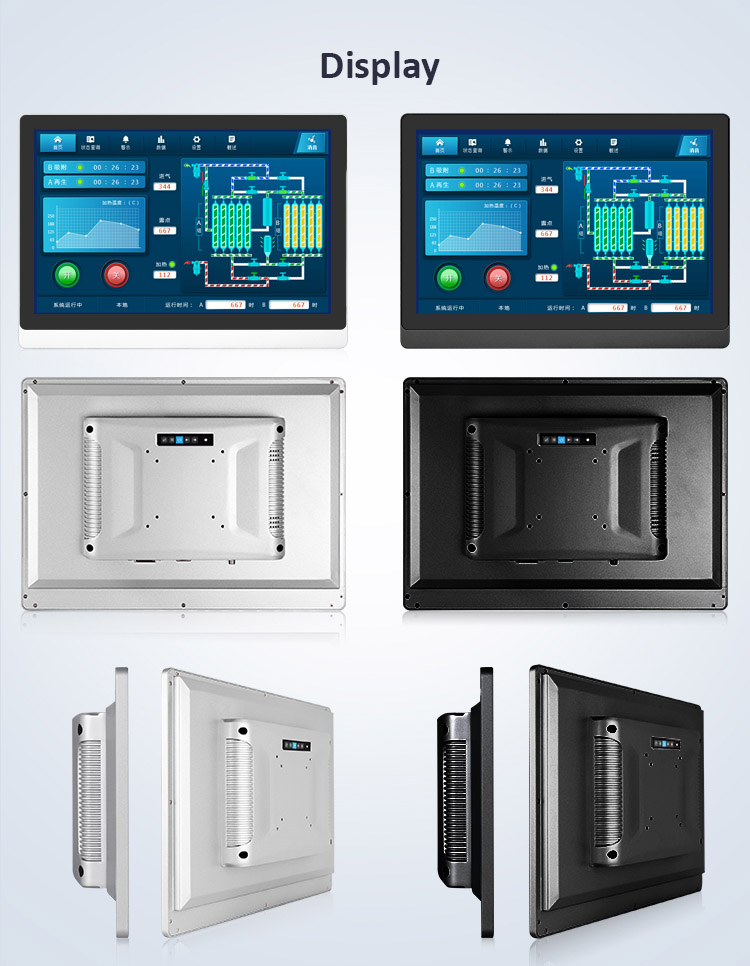

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 21.5" Waterproof Monitor High Brightness Touchscreen Display


    Model: JWS215-M42


    Jawest provides IP65-rated waterproof touchscreen LCD monitors and displays to customers with popular single, gesture, and multi-touch screen applications including touchscreens and touchscreen monitors for retail point of sale, finance & banking, self-service, food service, hospitality, industrial, healthcare, manufacturing, and interactive digital signage. Throughout its history, Jawest has focused on innovative technologies that make it able to carve a niche for itself in the competitive market. Through the Jawest team's rich experience and vast knowledge in this field, we are constantly moving toward the path of success.



    Jawest Industrial Monitor Features


    Versatile · Rugged · High Performance

    The Jawest series color LCD monitor is suitably packaged in a rugged metal chassis, perfect for installation in industrial process control consoles. These rugged, high-performance, Active Matrix COLOR TFT LCD computer monitors are designed for rough industrial process control applications.



    High-Quality LCD Display

    Plug & play function enables this versatile industrial-grade LCD monitor to easily interface with a wide variety of video display systems. With contrast ratios exceeding 1000:1 and brightness levels from 300 cd/m2 to 1500 cd/m2, support sunlight is readable for outdoor device applications. This TFT LCD display is a good choice for most industrial display and commercial terminal needs.



    Multi-Language On-Screen Display

    Jawest industrial monitor offers standard features such as Plug-and-Play, multi-language on-screen display, wide viewing angle capability, IP65-rated dust-proof, and waterproof making this versatile industrial LCD monitor a good choice for much industrial automation and medical equipment.



    Compatibility and Synchronization

    Jawest industrial monitors are compatible with Windows, Android, and Linux OS. Support I/O expansion.

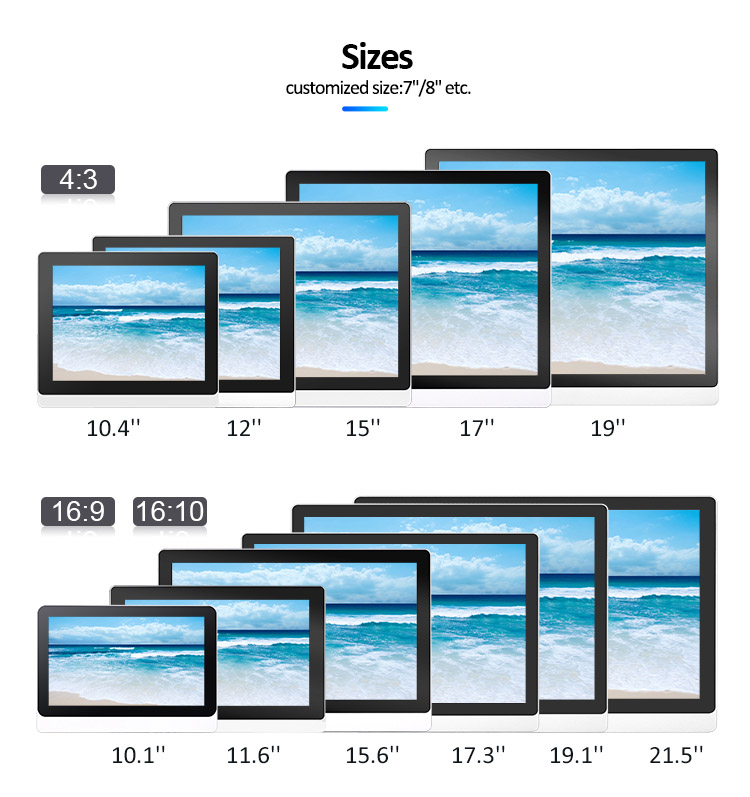

    Industrial Touch Screen Monitor - Products Models Fast Guide



    Model Name

    Screen SizeResolution Aspect RatioTouch Technology

    Get A Quote Now

    JWS070-M-QD7"1024*60016:9Capacitive / Resistive / Non-TouchscreenInquiry
    JWS080-M-QD8"1024*7684:3Capacitive / Resistive / Non-Touchscreen
    Inquiry
    JWS101-M410.1"1280*80016:10Capacitive / Resistive / Non-TouchscreenInquiry
    JWS104-M410.4"1024*7684:3Capacitive / Resistive / Non-TouchscreenInquiry
    JWS116-M411.6"1920*108016:9Capacitive / Resistive / Non-TouchscreenInquiry

    JWS120-M4

    12"1024*7684:3Capacitive / Resistive / Non-TouchscreenInquiry
    JWS150-M415"1024*7684:3Capacitive / Resistive / Non-TouchscreenInquiry
    JWS156-M415.6"1920*108016:9Capacitive / Resistive / Non-TouchscreenInquiry
    JWS170-M417"1280*10245:4Capacitive / Resistive / Non-TouchscreenInquiry
    JWS173-M417.3"1920*108016:9Capacitive / Resistive / Non-TouchscreenInquiry
    JWS190-M419"1280*10245:4Capacitive / Resistive / Non-TouchscreenInquiry
    JWS191-M419.1"1440*90016:10Capacitive / Resistive / Non-TouchscreenInquiry
    JWS215-M421.5"1920*108016:9Capacitive / Resistive / Non-TouchscreenInquiry
    JWS238-M223.8"1920*108016:9Capacitive / Resistive / Non-TouchscreenInquiry




    21.5" IP65 Waterproof Touch Monitor High Brightness Touchscreen Display

    21.5" IP65 Waterproof Touch Monitor High Brightness Touchscreen Display

    21.5" IP65 Waterproof Touch Monitor High Brightness Touchscreen Display

    21.5" IP65 Waterproof Touch Monitor High Brightness Touchscreen Display

    21.5" IP65 Waterproof Touch Monitor High Brightness Touchscreen Display





  • 10mm bezel aluminum touch monitor datasheet

    Size

    21.5 inch

    Display

    Panel Type

    Industrial LCD panel A, A+ grade

    Aspect Ratio

    16:9

    Resolution

    1920*1080

    Contrast

    1000:1

    Luminance

    250nit-1500nit

    Response time

    5ms

    Active Area (mm)

    341.5*274

    Display colors

    16.7M(8-bit)

    View angle

    75/75/75/75

    Touch Screen

    10-point capacitive (Resistive touch screen and Infrared touch for optional)

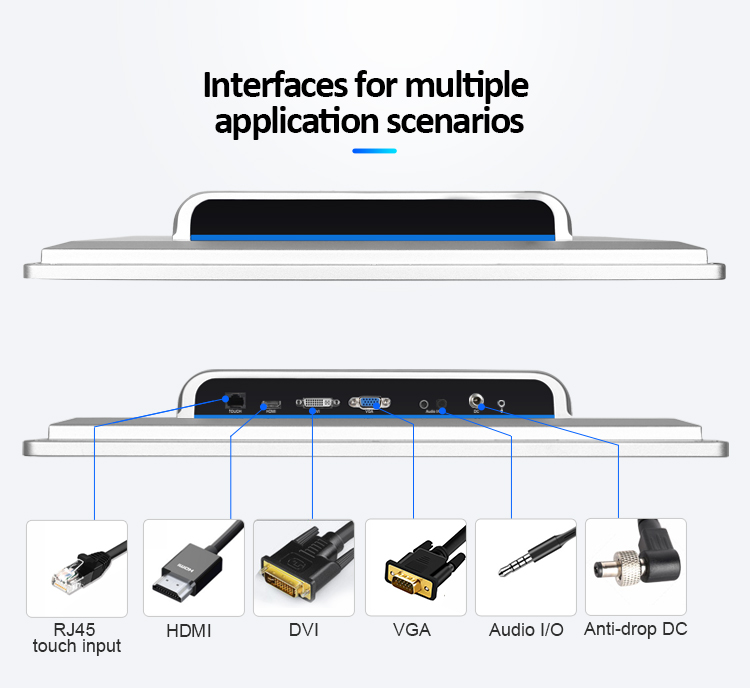

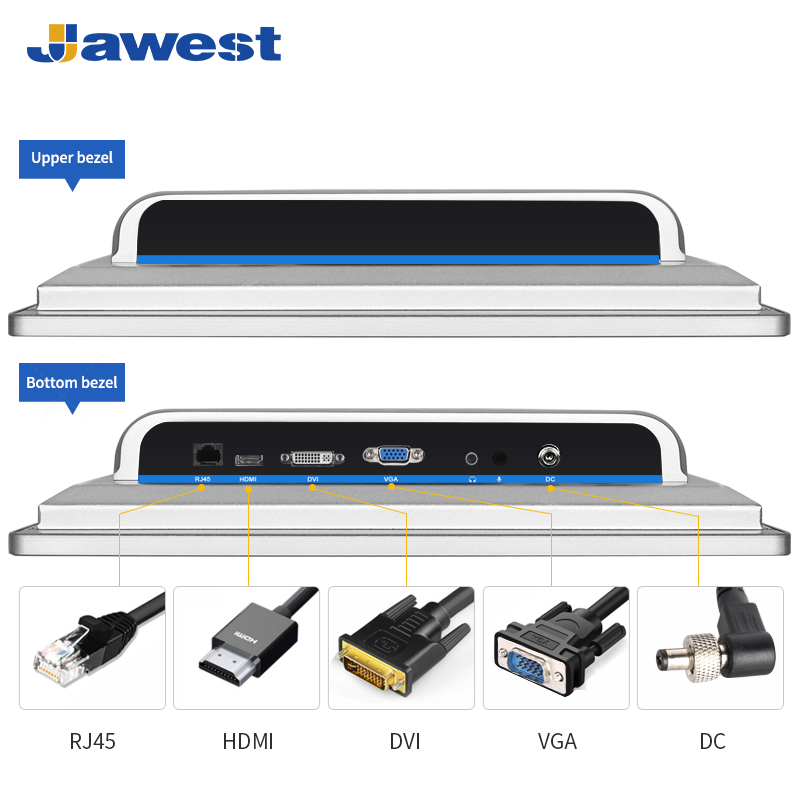

    Interface

    HDMI+DVI+VGA+USB/DVI+VGA+USB optional

    Power Input

    AC 110-240V, 50/60Hz

    Power Consumption

    ≤30W

    Power Standby

    ≤1.5W

    Plug&Play

    DDC1/2B

    Working Life

    More than 50,000 hours

    Operation Temperature

    -10°C-60°C

    Storage Temperature

    -10°C-60°C

    Operation Humidity

    10%--80%

    Storage Humidity

    10%-90%

    Metal Shell

    Aluminum alloy enclosure

    Color

    Silver, black color optional

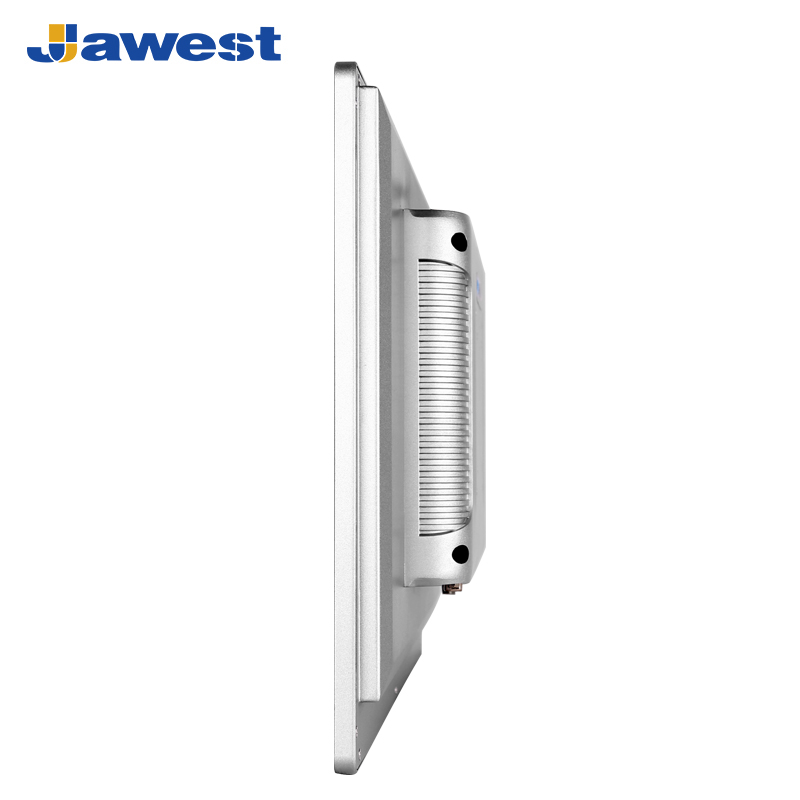

    Bezel thickness

    10mm bezel (3mm bezel for optional)

    IP rating

    IP65 for front Panel

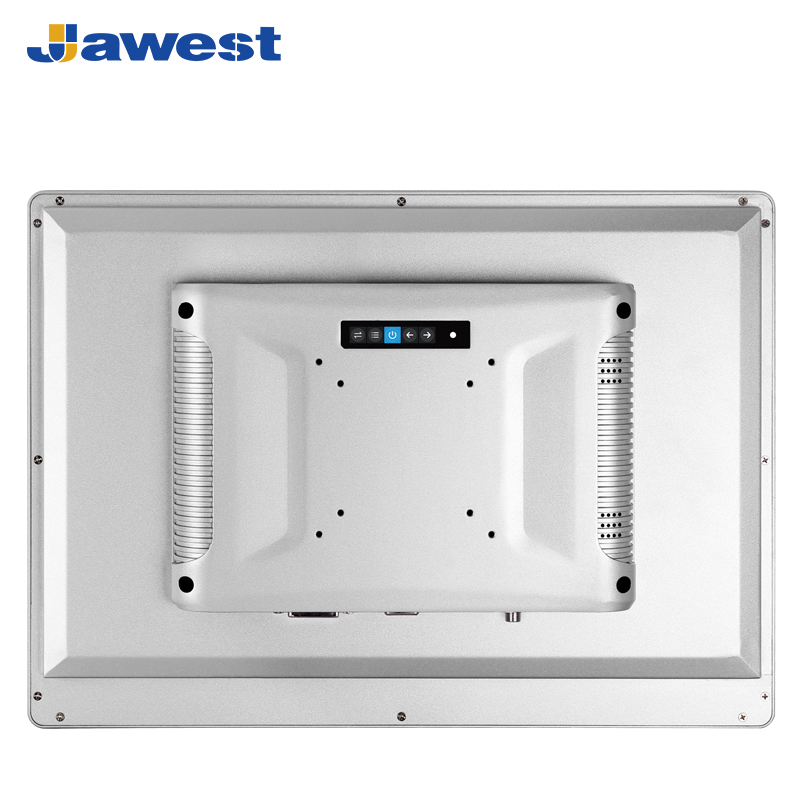

    Installation

    VESA, Embedded, Wall Mount, Desktop optional

    Certificates

    CE,CCC,ISO,FCC,ROHS

    Package

    EPE+Carton  (wooden crate for mass order)
