Application:
Industrial PC Monitor 15 Inch Touch Screen Monitors and DisplaysIndustrial PC Monitor 15 Inch Touch Screen Monitors and DisplaysIndustrial PC Monitor 15 Inch Touch Screen Monitors and DisplaysIndustrial PC Monitor 15 Inch Touch Screen Monitors and Displays

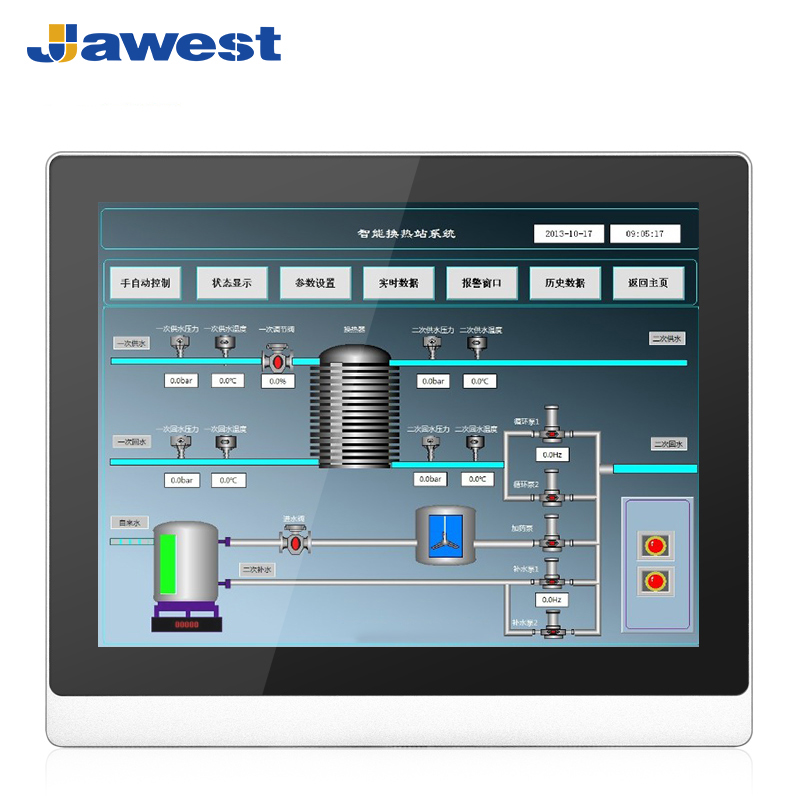

Industrial PC Monitor 15 Inch Touch Screen Monitors and Displays


Model: JWS150-M42

● Display size: 15 inch

● High-level anti-static

● High-quality industrial LCD panel

● Working temperature: -10 ~ +60°C

● Industrial-grade motherboard

● Sunlight readable, high nits screen for outdoor use

● Support 7*24hours long-time running

● IP65 rated dustproof and water-proof for front panel

Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • 15 Inch Industrial PC Touch Screen Monitors and Displays


    Model: JWS150-M42


    This Jawest 15" touch screen monitor. Durable and rugged industrial touchscreen monitors have what it takes to perform in demanding point-of-sale, point-of-purchase, industrial automation, industrial production control, and public environments. Touch Think brings years of extreme application display experience to touchscreen monitors, making them the most reliable and well-performing on the market.


    15 Inch Touch Screen Monitors and Displays


    Jawest Industrial Touchscreen Monitor Features


    ● The 15-inch screen supports a bright active matrix TFT display.

    ● The definition is 1024x768, and the aspect ratio is 4:3, providing excellent vivid image and color quality.

    ● Fanless heat-dissipation, aluminum alloy material housing, energy-efficient, low power consumption.

    ● Industrial-grade electronic components and motherboard, vibration/shock resistance.

    ● Support plug and play by BIOS, which is suitable for the continuous boot-up environment.

    ● 7*24 unattended high-load running.

    ● Watchdog function to ensure stable operation.

    ● Remote wake-up and automatic reset function.

    ● Wide operational temperature range: -10°C to +60°C (support extended temperature).

    ● Offer multi-installation methods, desktop, wall, embedded, and VESA arm mounting.

    ● CE, RoHS compliant.



    Industrial PC Monitor 15 Inch Touch Screen Monitors and Displays





  • 15-inch Industrial Touch Screen Monitor
    Size15-inch
    Display
    Panel TypeIndustrial LCD panel A+ grade
    Aspect Ratio4:3
    Resolution1024*768
    Contrast1000:1
    Luminance250nit-1500nit
    Response time5ms
    Active Area (mm)478*269.24
    Display colors16.7M(8-bit)
    View angle89/89/89/89
    Touch Screen4/5-wire resistive touch screen (Capacitive touch screen and Non-touch optional)

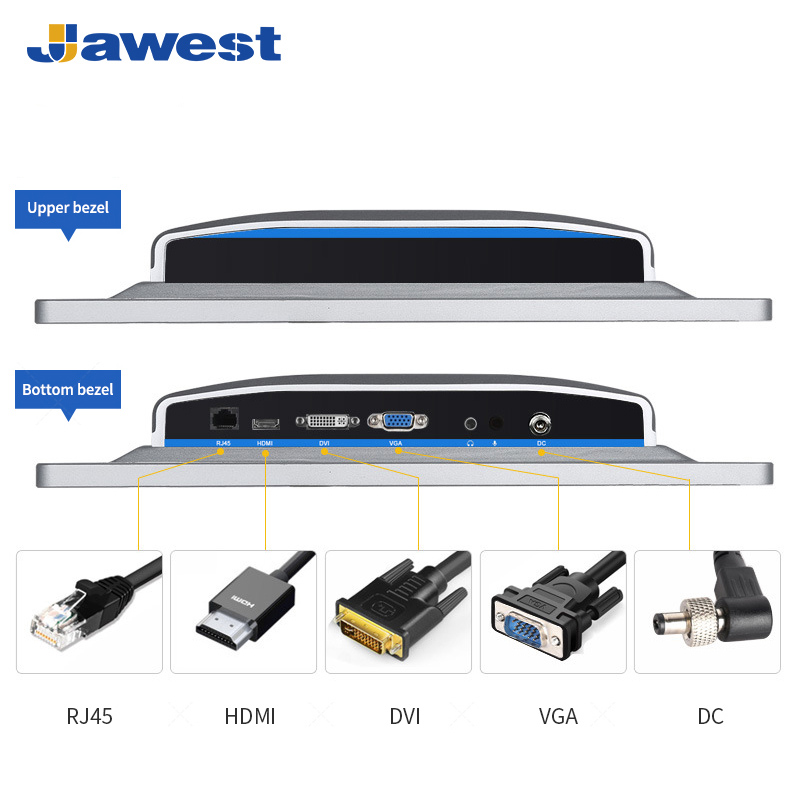

    InterfaceHDMI+DVI+VGA+USB/DVI+VGA+USB optional
    Power InputAC 110-240V, 50/60Hz
    Power Consumption≤30W
    Power Standby≤1.5W
    Plug&PlayDDC1/2B
    Working LifeMore than 50,000 hours
    Operation Temperature-10°C~60°C (Support wide temperature customization)
    Storage Temperature-20°C~70°C
    Operation Humidity10%-80%
    Storage Humidity10%-90%
    Metal ShellAluminum alloy enclosure
    ColorSilver, black color optional
    Bezel thickness10mm bezel
    IP ratingIP65 dust-proof and water-proof for front panel
    InstallationVESA, Embedded, Wall Mount, Desktop, open frame optional
    CertificatesCE, CCC, ISO, FCC, ROHS
    PackageEPE+Carton  (wooden crate for mass order)
