● Display size: 10.1" to 27" options.
● Config Options: 2/4/8GB for RAM, 32/64/128/256GB for storage.
● Processors Options: RK3568/RK3399/RK3588.
● OS: Android 7.1/9.0/11/12/13/14, Linux 4.4/5.1, Ubuntu 18.04/20.04/22.04, Debian10/11.
● I/O: USB2.0*1, USB3.0*1, HDMI*1, Dual-LAN, RS232*2, RS482*1, TTL*2, SIM/TF Slot*1, etc.
● Ideal for machinery, cabinets, kiosks, parcel lockers, vending machines, and more.
10.1" to 27" Ultra-thin Android Panel PC For Industrial or Commercial Applications
Overview
Introducing our sleek and powerful 10.1” to 27” Ultra-thin Android Panel PC, tailor-made for industrial and commercial applications. Designed for seamless integration into various environments, its slim profile belies its robust capabilities. With the intuitive Android interface, versatile connectivity options, and durable construction, it's the perfect solution for boosting productivity and efficiency in any setting. Experience cutting-edge technology in a compact and stylish package, revolutionizing your work processes effortlessly.
Product Model Fast Guide
Product Models | LCD Displays | Resolution | Aspect Ratio | Brightness | Dimension (L*W*D) | Get A Quote Now! |
JWS101-A26 | 10.1" | 1280*800 | 16:10 | 300cd/㎡ | 260.5*163*36mm | Inquiry |
JWS104-A26 | 10.4" | 1024*768 | 4:3 | 400cd/㎡ | 266.3*206.3*45mm | Inquiry |
JWS116-A26 | 11.6" | 1920*1080 | 16:9 | 220~300cd/㎡ | 305*193*36mm | Inquiry |
JWS120-A26 | 12" | 1024*768 | 4:3 | 500cd/㎡ | 295.4*234.4*43mm | Inquiry |
JWS133-A26 | 13.3" | 1920*1080 | 4:3 | 400cd/㎡ | 340.62*212.17*45mm | Inquiry |
JWS150-A26 | 15" | 1024*768 | 4:3 | 350cd/㎡ | 358.4*281.4*47mm | Inquiry |
JWS156-A26 | 15.6" | 1920*1080 | 16:9 | 250~300cd/㎡ | 388.55*240.98*41mm | Inquiry |
JWS170-A26 | 17" | 1280*1024 | 5:4 | 250~300cd/㎡ | 388.4*325.4*49mm | Inquiry |
JWS173-A26 | 17.3" | 1920*1080 | 16:9 | 400cd/㎡ | 433.4*268.4*47mm | Inquiry |
JWS185-A26 | 18.5" | 1920*1080 | 16:9 | 300cd/㎡ | 461.4*283.4*50mm | Inquiry |
JWS190-A26 | 19" | 1280*1024 | 5:4 | 250~300cd/㎡ | 428.4*353.4*50mm | Inquiry |
JWS215-A26 | 21.5" | 1920*1080 | 16:9 | 250~300cd/㎡ | 526.4*321.4*49mm | Inquiry |
JWS238-A26 | 23.8" | 1920*1080 | 16:9 | 250~300cd/㎡ | 573.4*347.9*50mm | Inquiry |
JWS270-A26 | 27" | 1920*1080 | 16:9 | 250~300cd/㎡ | 661.5*398.5*50mm | Inquiry |
Features
● Ultra-thin Bezel Design: The ultra-thin bezel design enhances the visual experience by maximizing the screen-to-body ratio, allowing users to focus more on the content displayed. This feature makes the panel PC ideal for applications where space is limited and aesthetics are important, such as digital signage and interactive kiosks.
● RK3588 Eight-core 64-bit CPU: The RK3588 eight-core 64-bit CPU provides exceptional processing power, enabling seamless multitasking and handling of resource-intensive applications. This ensures smooth operation and responsiveness, even when running complex software or performing data-intensive tasks. It also supports advanced features like 4K video playback and AI processing, expanding the capabilities of the panel PC for various industrial and commercial applications.

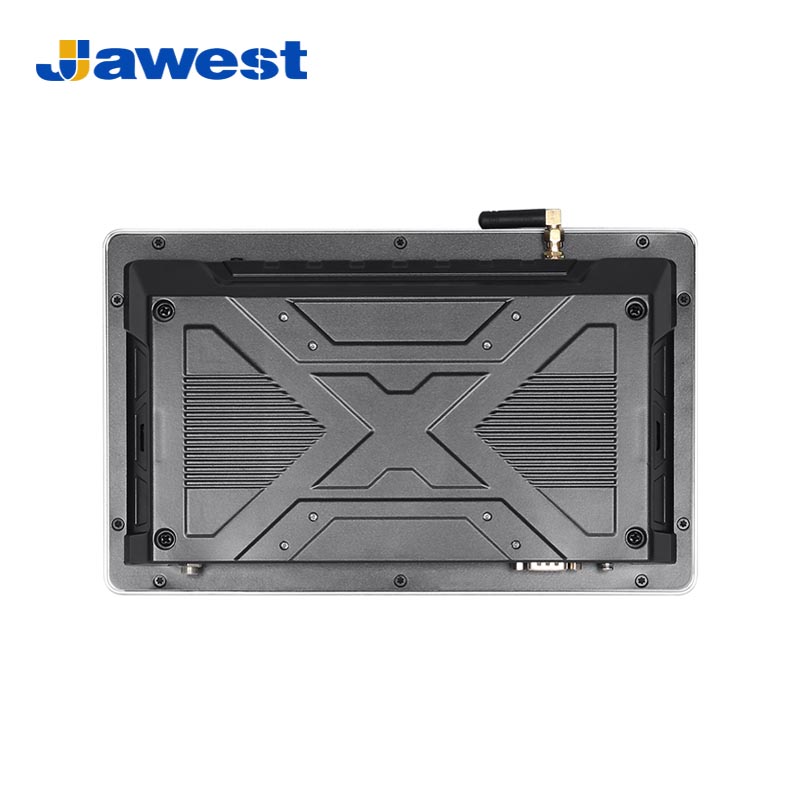

● Aluminum Alloy Die-cast Rear Cover: The aluminum alloy die-cast rear cover offers superior durability and heat dissipation properties, ensuring reliable performance even in harsh industrial environments. This robust construction enhances the longevity of the panel PC and protects it from damage due to physical impact or exposure to extreme temperatures, making it suitable for use in demanding applications such as manufacturing facilities and outdoor installations.
● Wide Temperature and Wide Voltage Operation Design: The wide temperature and wide voltage operation design enable the panel PC to operate reliably in a wide range of environmental conditions, including extreme temperatures and fluctuations in power supply. This versatility makes it suitable for deployment in diverse settings where environmental conditions may vary, such as warehouses, transportation vehicles, and outdoor installations.
● Designed for Lightweight Cabinet Equipment: The panel PC is specifically designed for lightweight cabinet equipment, making it easy to integrate into existing setups or mount onto various surfaces. This design feature streamlines installation and reduces installation time and effort, minimizing disruption to operations and lowering overall deployment costs.
● Easy for Installation: The ease of installation further enhances the usability of the panel PC, allowing for quick deployment and setup without the need for specialized expertise or extensive training. This simplifies the adoption process for end-users and reduces the time-to-market for industrial and commercial applications, facilitating rapid deployment and scalability.
In conclusion, the 10.1 inch to 27 inch industrial Android Panel PC offers a compelling combination of advanced features and user-friendly design, making it an ideal solution for a wide range of industrial and commercial applications requiring high performance, durability, and ease of integration.
Display Parameters | Size | 10.1" ~ 27" | ||||||
Resolution | 1920*1080 / 1024*768 / 1280*1024 | |||||||
Screen Ratio | 16:9 / 4:3 / 5:4 | |||||||
Brightness | 250~500 nits (Optional high brightness) | |||||||
Contrast Ratio | 1000:1 | |||||||
Viewing Angle | 89°/89°/89°/89° (L/R/U/D) | |||||||
Backlight type | LED backlight screen, service life ≥ 50000H | |||||||
Touch Screen | Capacitive, Resistive, or Non-touch options | |||||||
Motherboard Model Selection | JWS64 | JWS3288-I | JWS3399-MAIN-L | CX3399-A | CX3568-A | CX3588-A | CX-3588-G | |
System Architecture | CPU | A64 Quad-Core 1.5GHz | RK3288 Quad-Core 1.8GHz | RK3399 Six-Core 2.0GHz | RK3399 Six-Core 2.0GHz | RK3568 Quad-Core 2.0GHz | RK3588 Octa-Core 2.1GHz | RK3588 Octa-Core 2.1GHz |
Core Architecture | Cortex-A53 | Cortex-A17 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Dual-Core Cortex-A72 + Quad-Core Cortex-A53 | Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | Quad-Core Cortex-A76 + Quad-Core Cortex-A55 | |
GPU | Mali-T764 | Mali-T764 | Mali-T860 MP4 | Mali-T860 MP4 | Mali-G52 2EE | Mali G610 MP4 | Mali G610 MP4 | |
Memory (DDR) | 2GB (8GB optional) | 2GB (4GB optional) | 4GB | 2/4GB | 2GB (4/8GB optional) | 4GB (8/16/32GB optional) | 4GB (8/16/32GB optional) | |
Storage (eMMC) | 16GB (32/64GB optional) | 16GB (32/64/128/256GB optional) | 32GB (64GB optional) | 32/64GB (256GB optional) | 32GB (64/128/256GB optional) | 64GB (128/256GB optional) | 64GB (128/256GB optional) | |
SATA | / | / | / | / | Support | / | 1*SATA hard drive port | |
Operating System | Android 6.0 | Android 7.1 / 10.0 | Android 7.1 / 9.0 / 11 | Android 7.1 / 9.0 / 11 | Android 12/14 | Android 13.0 | Android 12 | |
/ | Linux 4.4 | Linux 4.4 | Linux 4.4 | Linux 5.10 | Linux 5.10 | Linux 5.10 | ||
/ | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 18.04 | Ubuntu 20.04/22.04 | Ubuntu 20.04/22.04 | Ubuntu 20.04/22.04 | ||
/ | Debian 10.0 | Debian 10.0 | Debian 10.0 | Debian 11.0 | Debian 11.0 | Debian 11.0 | ||
Networking | Ethernet | 1*10M/100M/1000M adaptive Ethernet | 1*Gigabit Ethernet + 1*100 Mbit Ethernet | 2*10M/100M/1000M adaptive Ethernet | ||||
4G | Optional. Based on the 4G module selection | |||||||
5G | / | / | / | / | / | / | Support M.2 5G module interface | |
WIFI | 2.4G | Dual-band 2.4/5G | Dual-band 2.4/5G | Dual-band 2.4/5G | WIFI6, 2.4G | WIFI6, Dual-band 2.4/5G | WIFI5/WIFI6 (optional), dual-band 2.4/5G | |
Bluetooth | BT5.0 | BT5.0 | BT5.0 | BT5.0 | BT5.2 | BT5.0 | BT4.2 (WIFI 5) / BT5.0 (WIFI 6) | |
Touch Function | Touch Interface | USB/IIC | USB | USB/IIC | ||||

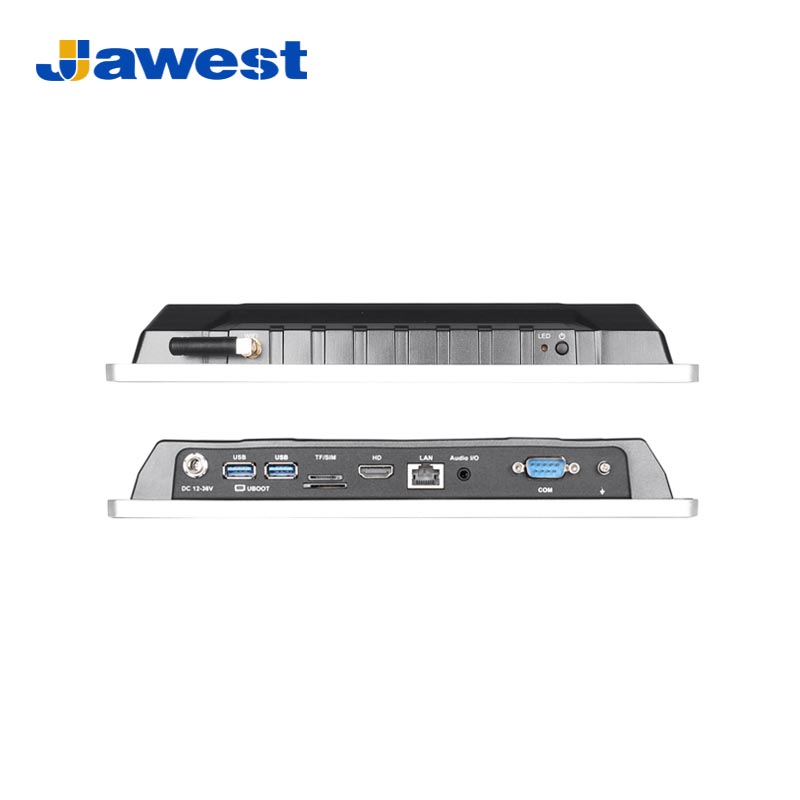

I/O Ports | USB | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB HOST, 1*USB OTG | 1*USB, 1*OTG | 2*USB3.0 | 1*USB, 1*OTG | 4*USB3.0 |
HDMI | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI, up to 4K | 1*HDMI In+1*HDMI Out, 8K | |
LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 1*LAN | 2*LAN | 2*LAN | |
DC | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | 1*DC2.1 | |
COM | 2*RS232+2*Reserved holes | 1*RS232+1*Reserved hole | ||||||
TF/SIM | 1* TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | 1*TF/SIM slot | |
WiFi Antenna | 1*WiFi Antenna | 1*WiFi Antenna | 1*WiFi Antenna+1*Reserved hole | |||||
Audio I/O | 1*3.5mm Earphone Jack | |||||||
Reset Button | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | 1*UBOOT | |
GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | 1*GND | |
MICRO OTG | 1*MICRO OTG | / | / | / | / | / | / | |
1*12P Phoenix Terminal | / | / | / | 1*DC | 1*DC | 1*DC | 1*DC | |
/ | / | / | 1*RS232 | 1*RS232 | 1*RS232 | 1*RS232 | ||
/ | / | / | 1*RS485 | 1*RS485 | 1*RS485 | 1*RS485 | ||
/ | / | / | 1*TTL | 1*CAN | 1*CAN | 1*CAN | ||
/ | / | / | 3*GPIO | 3*GPIO | 3*GPIO | 3*GPIO | ||
I/O Expansion | Support | |||||||
Power | Power Input | 12V DC | 12V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC | 12-36V DC |
Adapter | 12V / 4A | 12V / 4A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | 24V / 2.5A | |
Mechanical | Enclosure | Aluminum alloy housing | ||||||
Cooling System | Fanless | |||||||
Mounting | Panel-mount, Embedded, etc. | |||||||
Product Reliability | Working Temp | -10°C ~ 60°C | ||||||
Storage Temp | -20°C ~ 70°C | |||||||
Ambient Humidity | 5% - 95% (relative humidity non-condensing) | |||||||
IP rating | Front IP65 |
