CX-J6412 Customizable Industrial Motherboard with 16GB RAM 256GB StorageCX-J6412 Customizable Industrial Motherboard with 16GB RAM 256GB StorageCX-J6412 Customizable Industrial Motherboard with 16GB RAM 256GB StorageCX-J6412 Customizable Industrial Motherboard with 16GB RAM 256GB Storage

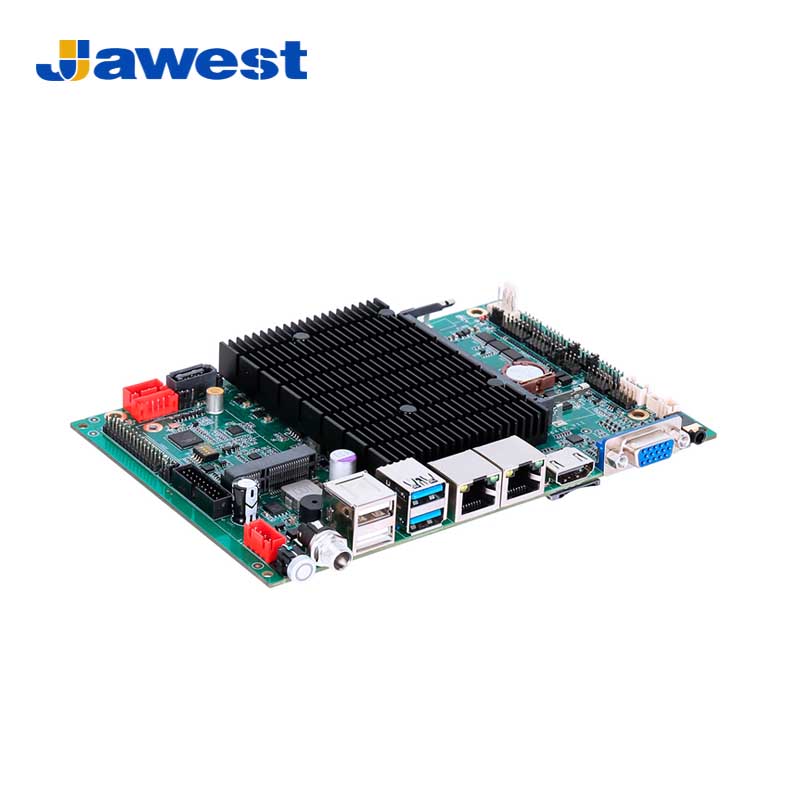

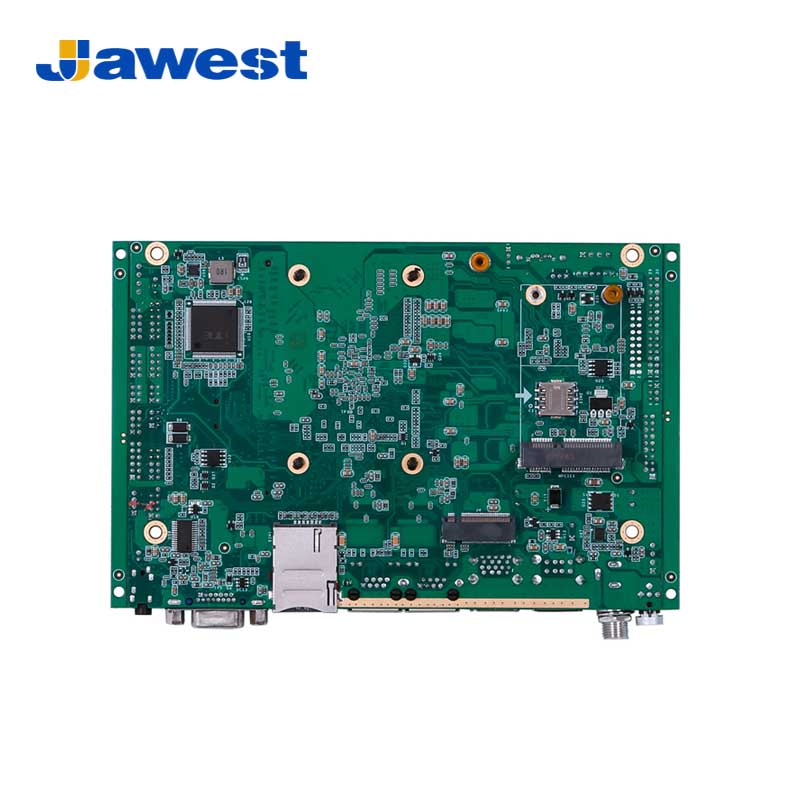

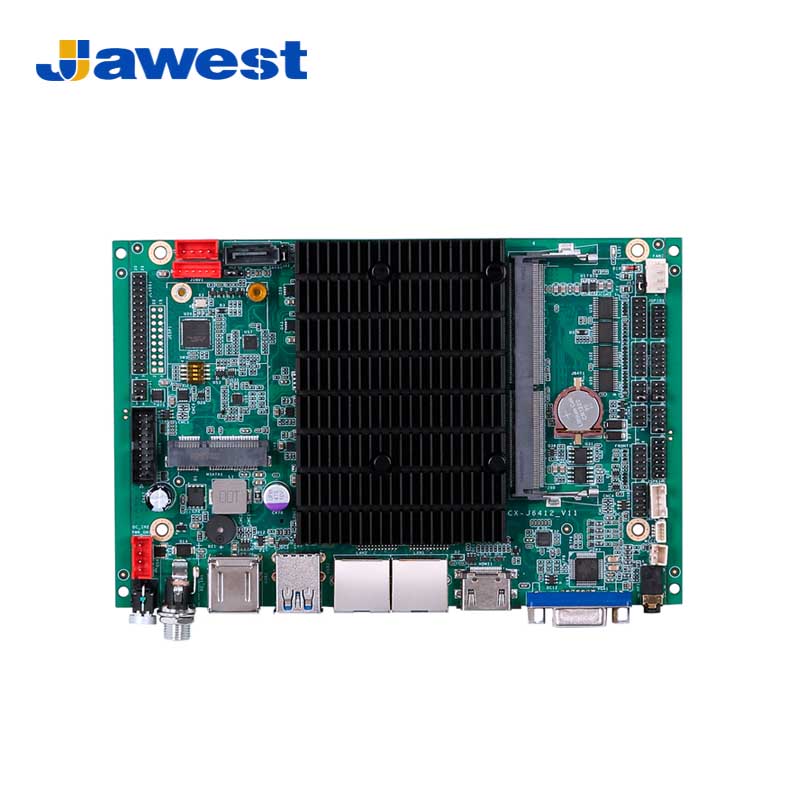

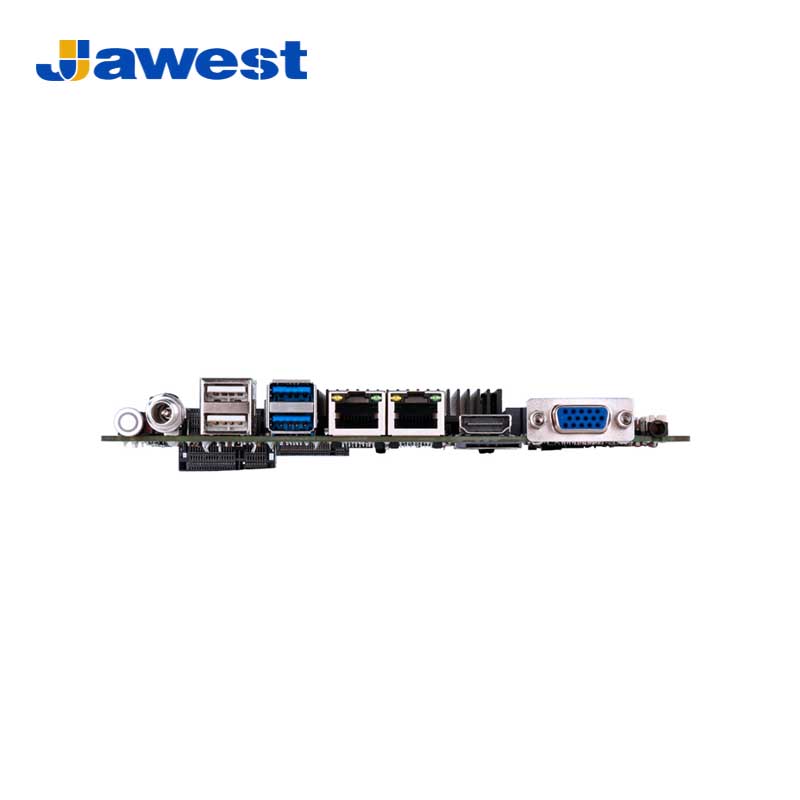

CX-J6412 Customizable Industrial Motherboard with 16GB RAM 256GB Storage


Model: CX-J6412

● CPU: Intel Celeron J6412,Quad-Core 64-bit 2.0GHz

● Intel Bay trail SOC chipset

● Memory: 8GB (16GB options)

● Storage: 256GB

● Wide voltage input: 12V ~ 36V

● OS: Win 10 / Win11

● Dual Gigabit Ethernet ports


Appearance of the color
Black
Silver
share:
  • Description
  • Parameter
  • Case
  • Model: CX-J6412



    Model CX-J6412 rugged mainboard with J6412 CPU, and Dual LAN – a powerful and reliable solution designed to meet the demanding requirements of industrial applications. Engineered for robust performance, this motherboard seamlessly integrates advanced features to ensure smooth and efficient operation in industrial settings.



    The CX-J6412 is powered by a high-performance CPU - J6412, which delivers the processing power required for demanding industrial applications. Whether running complex control algorithms or handling data-intensive tasks, this motherboard ensures optimal performance and responsiveness.



    In summary, the J6412 CPU Industrial Motherboard with Dual LAN stands as a reliable, high-performance solution tailored for industrial settings. With its dual LAN connectivity, robust design, and versatile features, it empowers industrial systems with the stability and efficiency required to meet the challenges of today's demanding applications.



    Motherboard Features


    ● Dual-band WIFI: 2.4G/5G

    ● On-board VGA/HDMI interface, eDP port; Support dual-screen display

    ● Decoding resolution: 4K, 60Hz

    ● External storage: 1 x SATA3.0 + 1 x mSATA

    ● 2 x USB3.0 sockets, 2 x USB2.0 sockets, 4 x USB2.0 terminal interfaces

    ● Serial Port: 1 x RS485, 1 x RS232/RS422,  4 x TTL

    ● Size: 160*110*27mm






  • Specifications [Model: CX-J6412]



    SystemProcessorIntel Celeron J6412,Quad-Core 64-bit 2.0GHz
    ChipsetIntel Bay Trail SOC
    Memory8GB (16GB options)
    Storage256GB
    OSWin10 / Win11
    4G/5GBuilt-in WCDMA, EVDO, 4G/5G all network connectivity, supporting voice calls
    WiFiDual-band 2.4/5G

    Interface ParametersHDMI1*HDMI 2.0 output
    USB2 x USB3.0 sockets, 2 x USB2.0 sockets, 4 x USB2.0 terminal interfaces
    WIFI connectorBuilt-in 2.4G WIFI
    RJ45 Ethernet2*1000M Ethernet ports
    Serial interface1*RS232, 4*TTL, 1*RS485/RS422/RS232 options
    I/O ExpansionSupport customization

    Product ReliabilityOperating temperature-10 °C to +60 °C
    Storage temperature-20 °C to +70 °C
    Humidity95%, Non-Condensing

    Power SupplyPower consumption (maximum)20W
    Power inputDC 12V~36V
